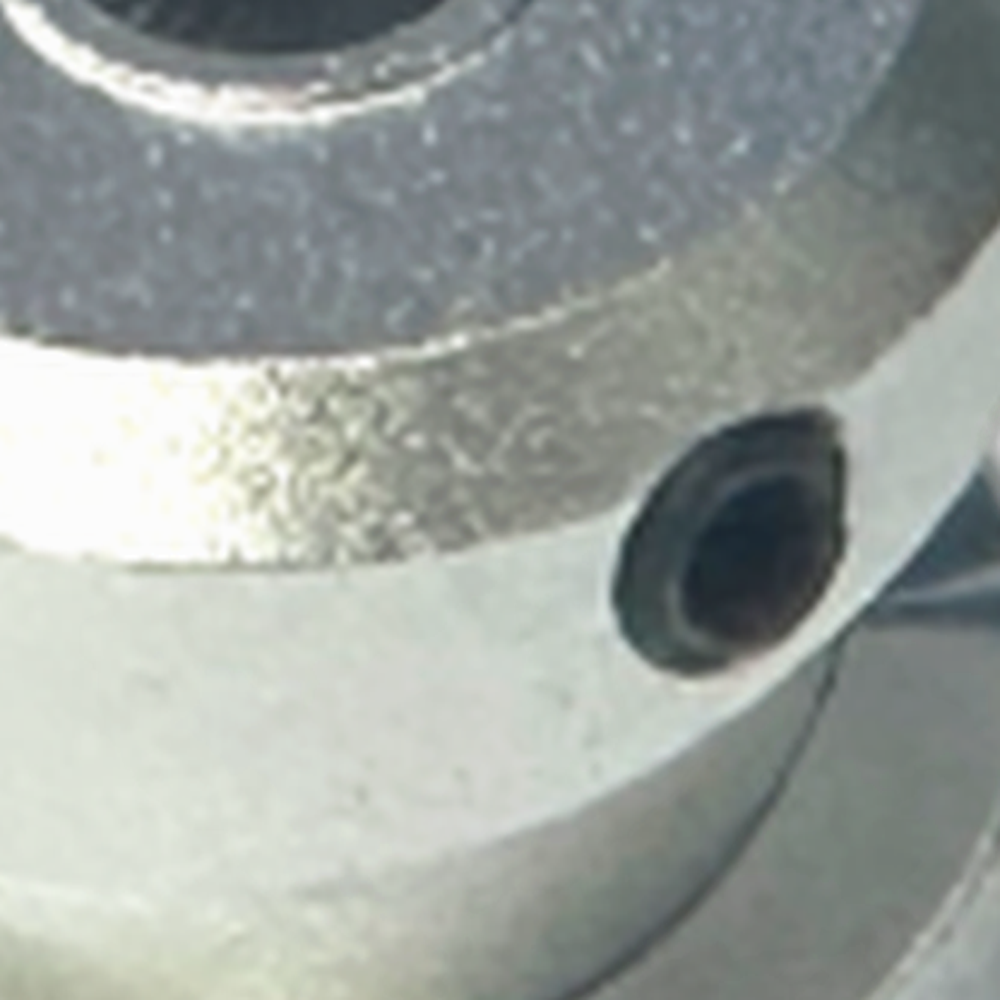

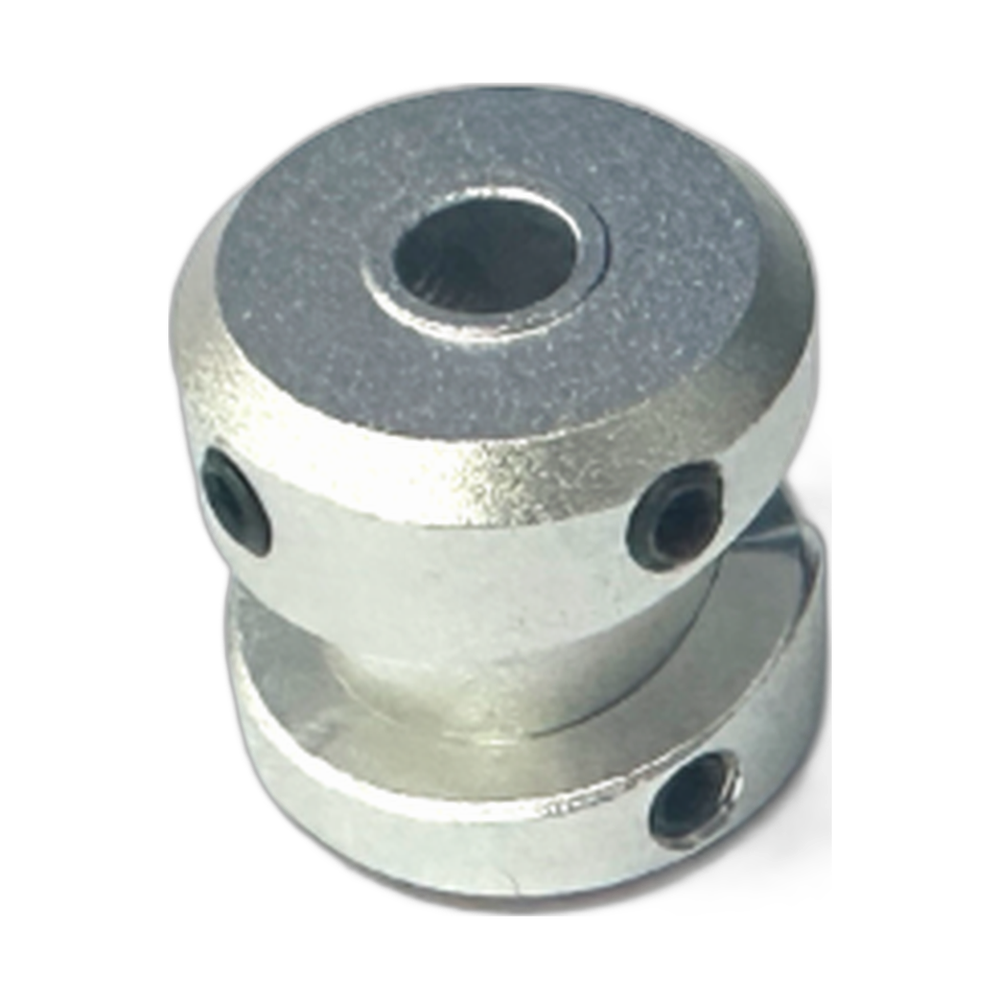

CreatBotNozzle-Switching Oscillating WheelGenuine CreatBot Replacement Part
Nozzle-Switching Oscillating Wheel for D400 HS, D600 Pro3 HS and D1000 Pro HS 3D Printers
The CreatBot nozzle-switching oscillating wheel (part 124013) is an OEM part of the nozzle switching mechanism on the CreatBot D400 HS, D600 Pro3 HS and D1000 Pro HS. These dual extruder printers switch between two nozzles during a print. The oscillating wheel is one of the moving parts that drives that switch, rocking back and forth to move the mechanism between its two positions. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot Nozzle-Switching Oscillating Wheel, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Why a healthy oscillating wheel matters
Each nozzle change needs the mechanism to reach its end position every time.
Wear in the switching parts can leave one nozzle sitting differently from the other.
Jobs that switch often put the most wear on this mechanism.
Signs it needs replacing
Nozzle switches are slow, incomplete or noisy.
The idle nozzle touches or marks the print.
Visible wear, cracks or a flat spot on the wheel, or play in its mounting.
Compatible CreatBot 3D printers
The same mechanism also uses the HS nozzle-switching bearing (124012). If the switch has worn, check the bearing while you have the toolhead open.
Installation tips
Turn the printer off and let both hotends cool. Photograph the switching mechanism from several angles before removal so the new wheel goes back in the same orientation. Keep small screws and spacers in order. After assembly, move the mechanism by hand through both positions, then run a nozzle switch and check the height of both nozzles.
CreatBot Nozzle-Switching Oscillating Wheel Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot Nozzle-Switching Oscillating Wheel — Questions
Does it fit the D600 Pro2 HS or D1000 HS?
No. This wheel is listed for the D400 HS, D600 Pro3 HS and D1000 Pro HS only.
Should I replace the switching bearing at the same time?
If the bearing (124012) feels rough or has play, replacing both while the toolhead is open saves a second teardown.
Is this a genuine CreatBot part?
Yes. It is CreatBot part 124013, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
