CreatBotNozzle and Heat BreakGenuine CreatBot Replacement Part
Nozzle and Heat Break for F430 NX and PEEK-250 3D Printers

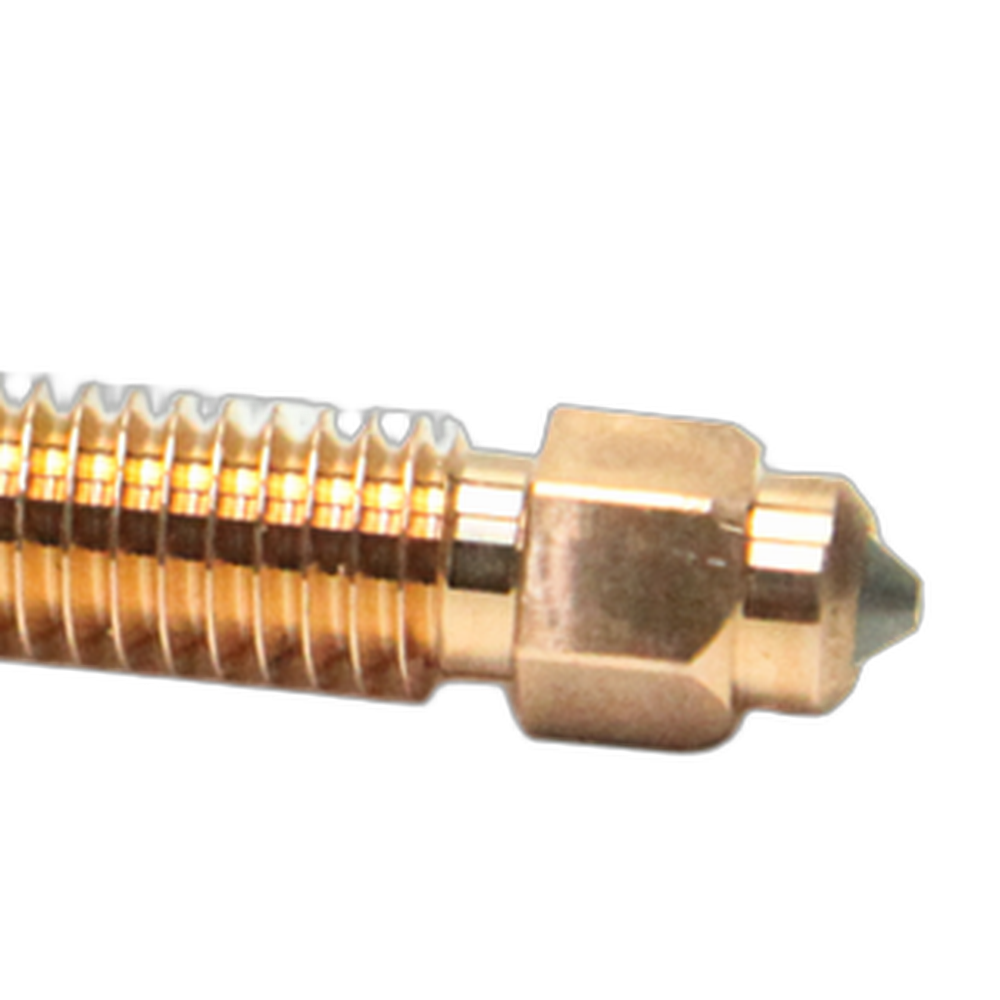

The CreatBot nozzle and heat break is the OEM replacement for the nozzle and heat break on the CreatBot F430 NX and PEEK-250 3D printers. CreatBot supplies the two together under one part number, so you replace the tip that shapes the extruded line and the thermal barrier above it in a single step. It comes in two nozzle sizes: 0.4 mm (part 101014) and 0.6 mm (part 101015). Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot Nozzle and Heat Break, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
What the nozzle and heat break do
The nozzle sets the width of every line the printer lays down. The heat break sits between the heated zone and the cooled zone of the hotend and keeps the melt zone short and controlled. If heat travels too far up the filament path, the filament softens early and jams, which is known as heat creep.
Signs it needs replacing
Repeated clogs or partial jams that return after cleaning.
Under-extrusion, clicking from the extruder or filament grinding.
A worn, scratched or out-of-round nozzle tip, or stringing that slicer changes do not fix.
Damaged threads after a jam was forced out.
Choose your size
| Size | Part number | Fits |
|---|---|---|
| 0.4 mm | 101014 | F430 NX, PEEK-250 |
| 0.6 mm | 101015 | F430 NX, PEEK-250 |
Compatible CreatBot 3D printers
Both sizes fit both printers. Other CreatBot models use separate nozzles, such as the brass nozzles (101007 to 101013) and hardened steel nozzles (101001 to 101006).
0.4 mm or 0.6 mm?
0.4 mm is the general purpose size. It gives finer surface detail and thinner walls, and suits most engineering parts. 0.6 mm lays down wider lines, prints faster and is more forgiving with filled materials and high-viscosity engineering filaments. Many F430 NX and PEEK-250 owners keep one of each so they can switch between detail work and faster structural parts. Set the matching nozzle diameter in your slicer after each change.
Installation tips
Follow the CreatBot hotend service procedure for your printer. Let the hotend reach a safe handling temperature, power the printer down before disconnecting anything, and note how the heater and sensor wires are routed. Seat the new part fully, reassemble, then heat up and check for leaks before running a first layer test.
CreatBot Nozzle and Heat Break Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot Nozzle and Heat Break — Questions
Which size do I need?
Choose 0.4 mm for detail and general printing, or 0.6 mm for faster prints and filled materials.
Does it fit the original F430?
No. This part is listed for the F430 NX and PEEK-250 only.
Is this a genuine CreatBot part?
Yes. Both sizes are genuine CreatBot parts supplied by Rev1 Technologies, an authorized CreatBot dealer and certified service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
