CreatBotNozzle Auto-Rising ServoGenuine CreatBot Replacement Part
Auto-Rising Servo for D Series HS, D600 Pro2 and PEEK-300 3D Printers

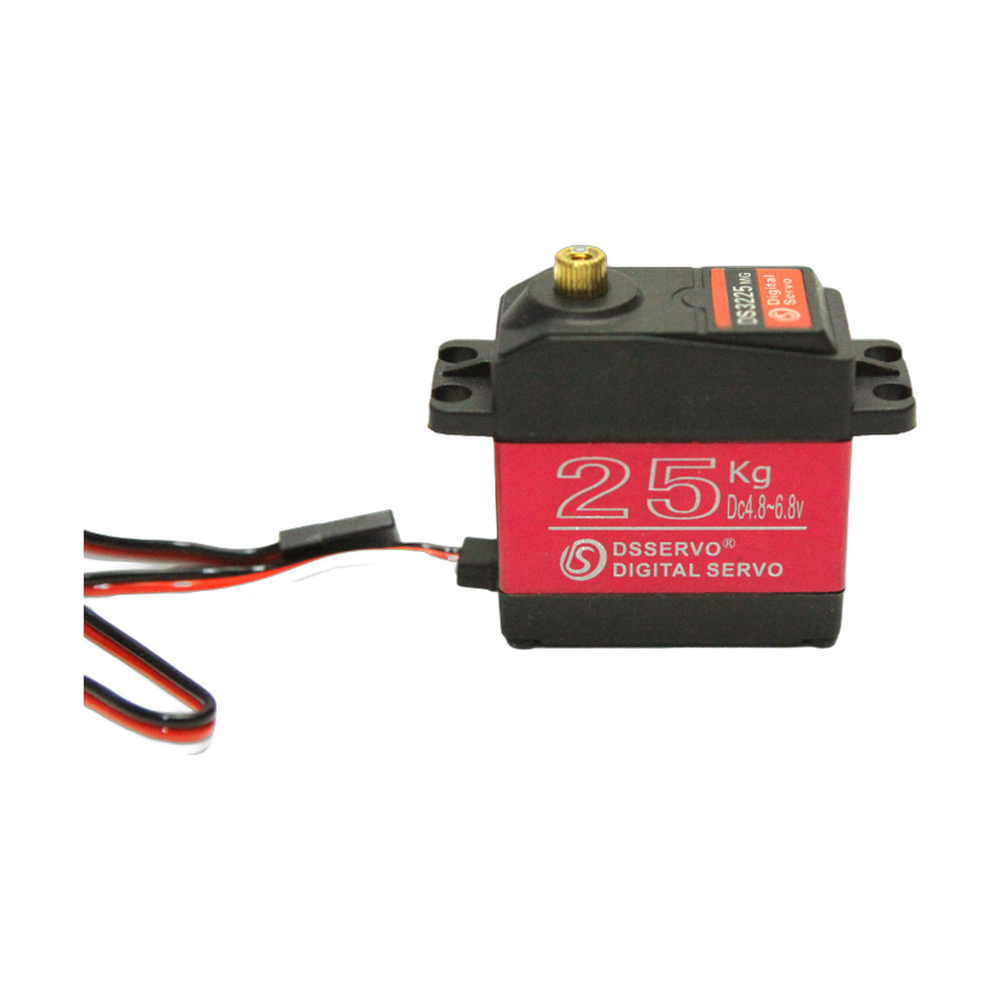

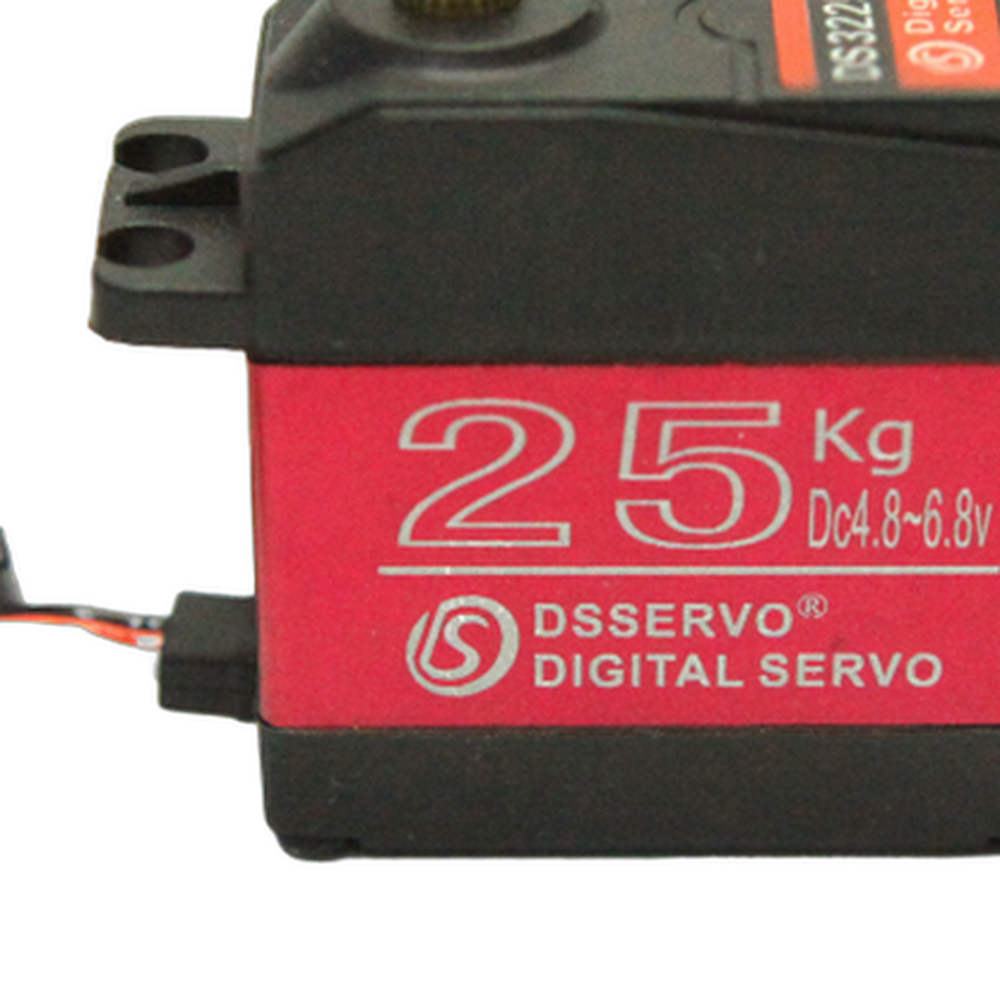

The CreatBot servo for auto-rising (part 133013) is an OEM servo for the nozzle auto-rising system, listed by CreatBot for a wide range of its dual extruder printers. The auto-rising system lifts the nozzle that is not printing so it stays clear of the part. When the servo wears out, the idle nozzle can drop back down and drag across the surface, leaving scratches, ooze and blobs, or catching a thin feature and breaking it. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot Nozzle Auto-Rising Servo, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the auto-rising servo needs replacing
The idle nozzle does not rise, or rises only partway.
The servo buzzes, chatters or moves in small jerks.
Dual extrusion prints show drag marks that single nozzle prints do not.
After a tool change, the active nozzle sits at a different height than before.
Compatible CreatBot 3D printers
Several of these printers also have a model specific auto-rising servo listed: D600 Pro2 HS (133001), D1000 HS (133003), D600 Pro2 (133010) and PEEK-300 (133012). If you are replacing a servo on one of those models, send Rev1 a photo of the fitted part and we will confirm which to order.
Auto-rising servo or bed leveling servo?
CreatBot printers with automatic leveling use a second, separate servo for the leveling probe. This page covers the auto-rising servo only. If your symptom is a leveling error rather than a nozzle that will not lift, you need the bed leveling servo for your model instead.
Installation tips
Power off and let the hotends cool. Photograph the servo, linkage and connector, swap the servo in the same orientation and reconnect it with the cable clear of heaters and belts. Check that the idle nozzle lifts fully, confirm nozzle heights, then run a dual extrusion test print.
CreatBot Nozzle Auto-Rising Servo Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot Nozzle Auto-Rising Servo — Questions
Does it fit my D600 Pro3 HS?
Yes. The D600 Pro3 HS is on the compatibility list above.
Will it fix a bed leveling error?
No. Leveling uses its own servo. This part only lifts the idle nozzle.
Is it a genuine CreatBot part?
Yes, part 133013, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
