CreatBotLT HotendGenuine CreatBot Replacement Part
LT (Low Temperature) Hotend for D Series and F Series 3D Printers

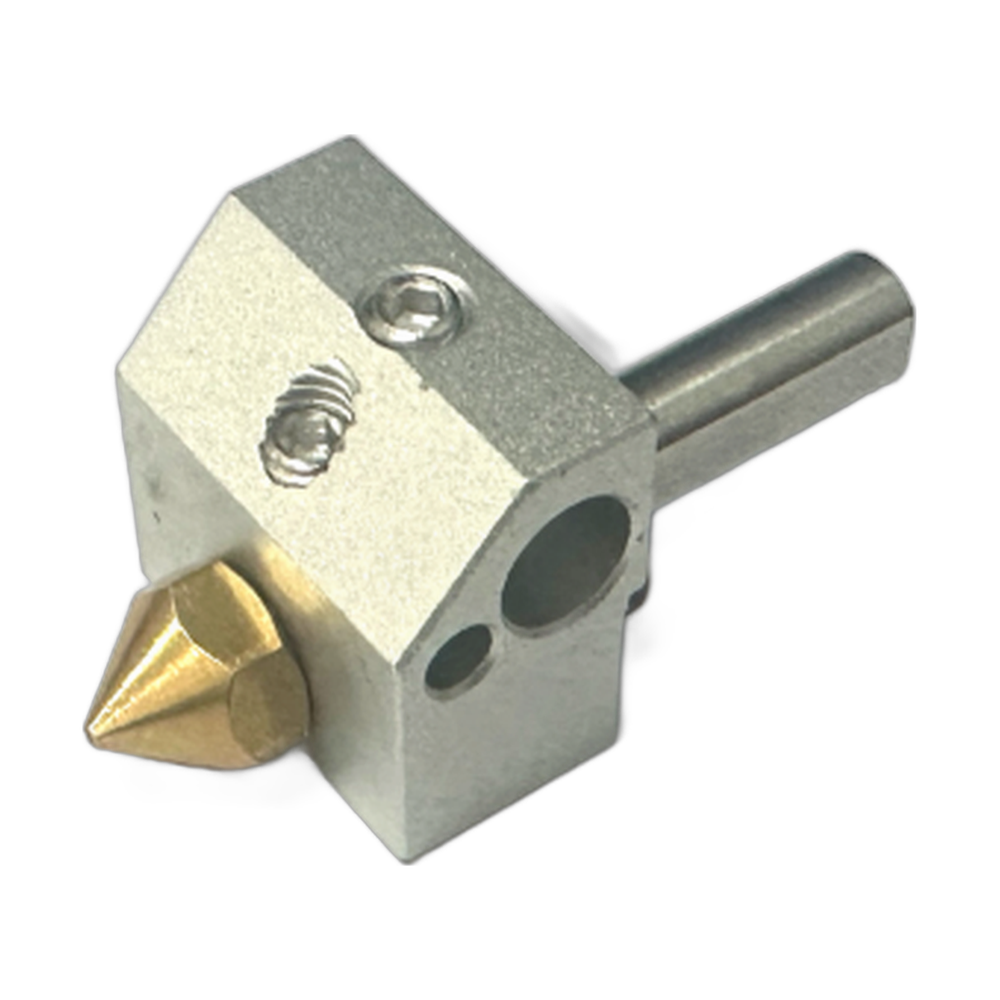

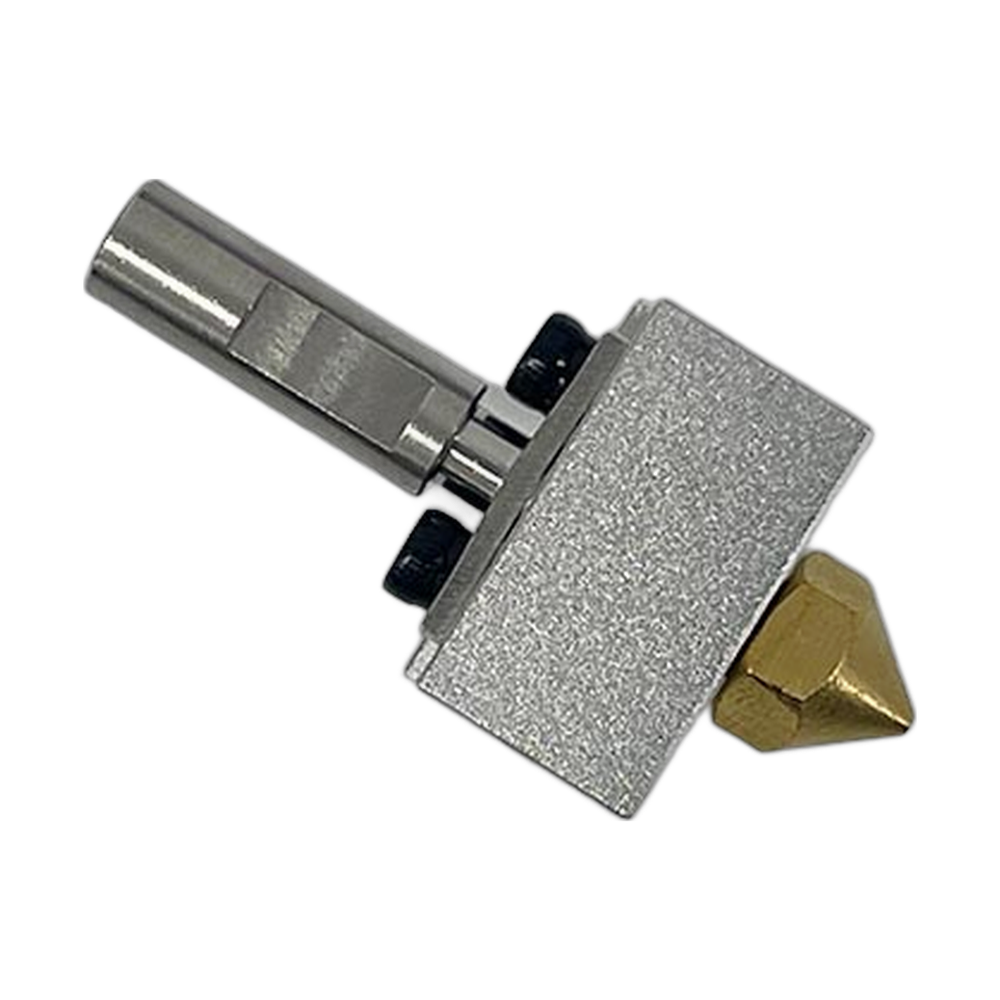

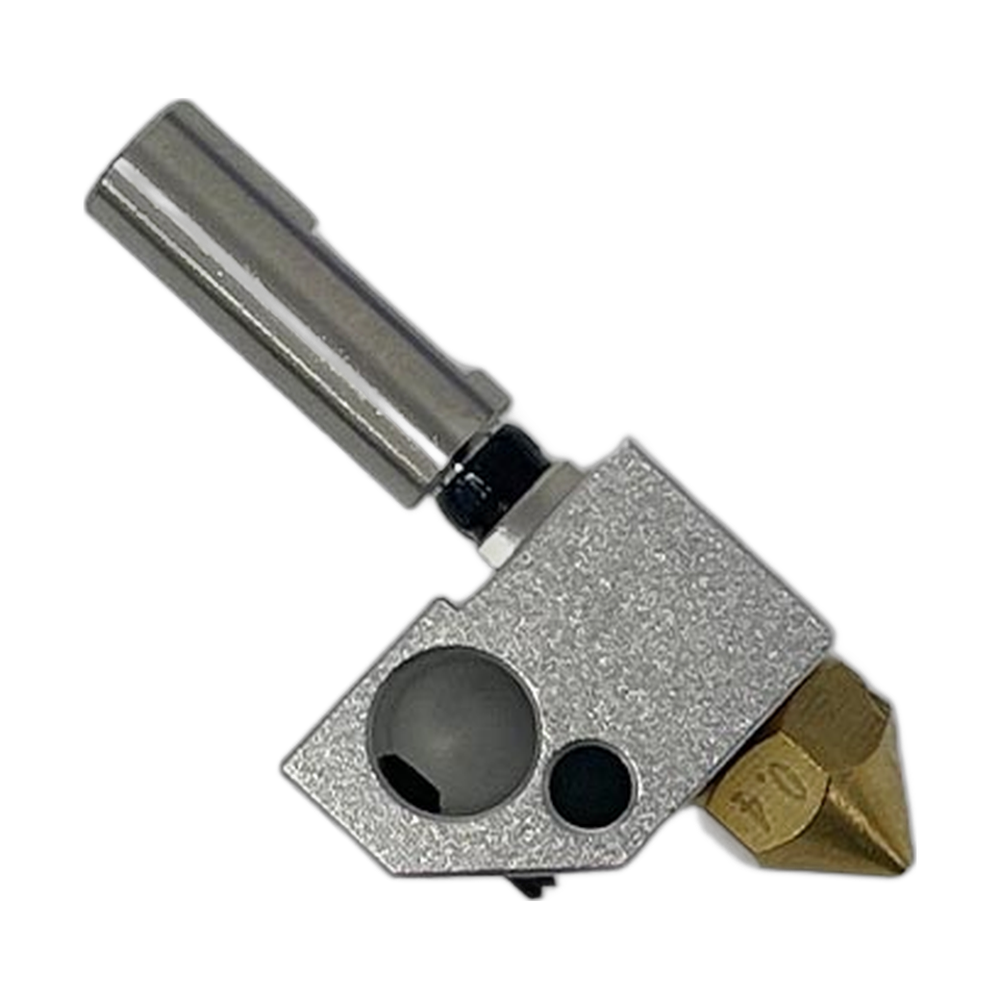

The CreatBot LT hotend is the complete low temperature hotend for CreatBot D Series and F Series 3D printers. This is the hotend that prints the everyday materials, such as PLA, PETG and ABS, which makes it the hardest working hotend on many machines. It is available in four options across three versions (parts 104008, 104010, 104012 and 104014), with 0.4, 0.6 or 0.8 mm nozzles. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot LT Hotend, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Why replace the whole LT hotend
Nozzles and heat breaks can be replaced on their own, but sometimes the fastest and most reliable fix is a complete new hotend:
When filament has coated the heating block and wiring.
And the nozzle or heat break no longer seals.
So the printer keeps running while the old hotend is serviced.
With the mount and connectors your printer expects.
Choose your version and size
| Version | Size | Part number | Fits |
|---|---|---|---|
| V1 | 0.4 mm | 104008 | D600, D600 Pro, F430 |
| V2 | 0.4 mm | 104010 | D600 Pro, F1000 |
| V3 | 0.6 mm | 104012 | D600 Pro2, D1000 |
| V3 | 0.8 mm | 104014 | D600 Pro2, D1000 |
Compatible CreatBot 3D printers
Each version fits a different group of printers, as shown in the table. Both V1 and V2 are listed for the D600 Pro.
Finding your version
Work from the printer model first. The D600 and F430 take V1. The F1000 takes V2. The D600 Pro2 and D1000 take V3, where you also pick a nozzle size: 0.6 mm suits most parts with good detail, while 0.8 mm prints large parts faster with thicker, stronger lines. A D600 Pro can carry either V1 or V2, so match the hotend that is on it now, or ask Rev1 to check your serial number.
Replacing the other hotend? The high temperature HT hotend uses parts 104009, 104011, 104013 and 104015. D600 Pro2 and D1000 owners can also choose the low temperature quick-swap hotend assembly (104018).
Installation tips
Unload filament, power the printer off and let the hotend cool. Take photos of the wiring before disconnecting it, swap the hotend in the same orientation, and reconnect. Heat up, load filament and level the nozzle heights between the two hotends before printing.
CreatBot LT Hotend Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot LT Hotend — Questions
Which version and size do I need?
V1 for the D600 and F430, V2 for the F1000, and V3 in 0.6 or 0.8 mm for the D600 Pro2 and D1000. D600 Pro owners match their current version.
Can I print engineering materials with the LT hotend?
Use the HT hotend for materials that need high temperatures.
Is this a genuine CreatBot hotend?
Yes, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
