CreatBotLT Heating BlockGenuine CreatBot Replacement Part
LT Heating Block for D600, D600 Pro and F430

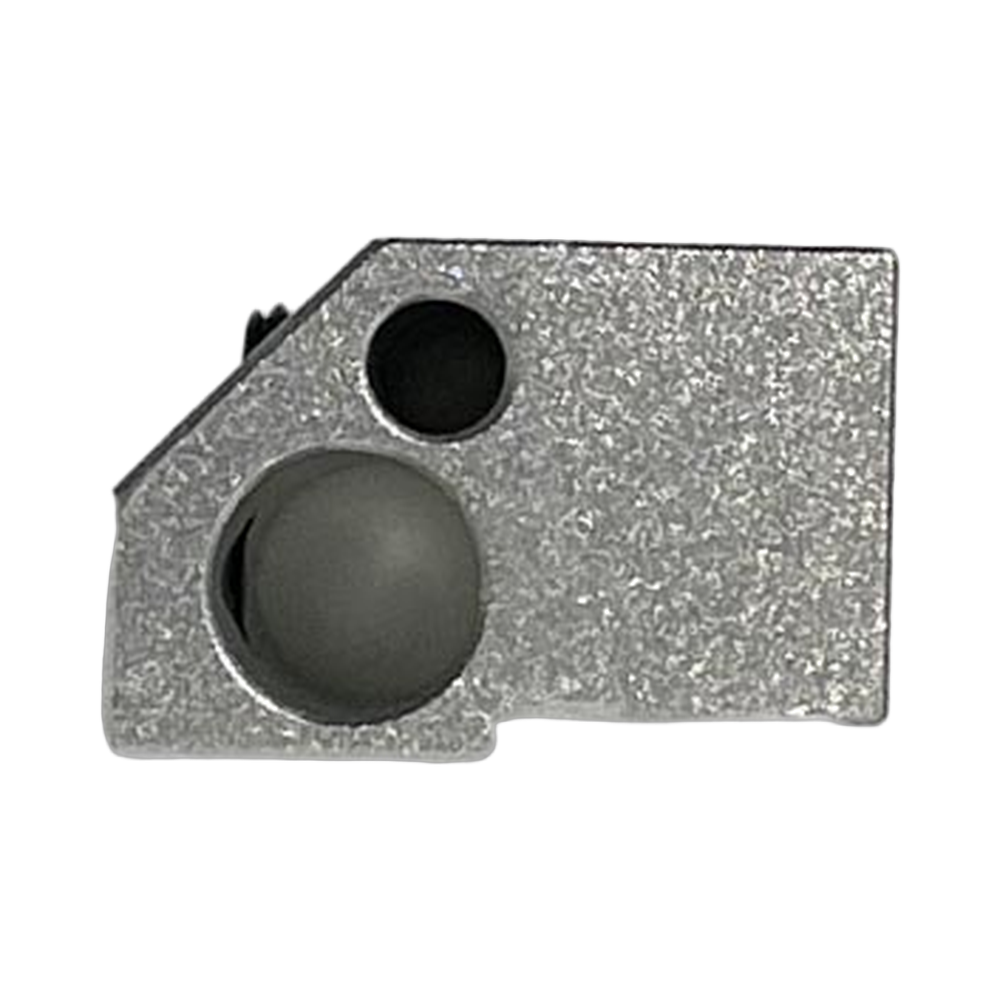

The CreatBot LT heating block (part 102001) is the OEM hotend heating block for the CreatBot D600, D600 Pro and F430. The heating block is the metal body at the bottom of the hotend: the nozzle threads into it, and it carries the heater cartridge and temperature sensor that bring the melt zone up to printing temperature. This is the LT version. The same printers also use an HT version, so check which one your hotend has before you order. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot LT Heating Block, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the heating block needs replacing
Stripped or damaged nozzle threads, so the nozzle will not seat or seal.
Filament leaking around the nozzle or out of the top of the block.
A heater cartridge or thermistor that will no longer clamp securely in its bore.
A block heavily coated in burnt filament that cannot be cleaned.
Compatible CreatBot 3D printers
Newer models use different blocks. The D600 Pro2 and D1000 use part 102003, the D600 Pro2 HS and D1000 HS use part 102004, and the F430 NX uses part 102005.
LT or HT: which block do I need?
The D600, D600 Pro and F430 can be fitted with either an LT or an HT hotend, and each uses its own heating block. Order the LT block (102001) if your printer runs the LT hotend, and the HT block (part 102002) if it runs the HT hotend. If you are not sure which hotend is installed, send Rev1 your serial number or a photo of the hotend and we will confirm it.
Installation tips
Heat the hotend to printing temperature to remove the nozzle cleanly, then power the printer off, unplug it and let the hotend cool fully before you remove the heater cartridge and thermistor. Photograph the wiring and sensor positions first. Seat the heater and thermistor fully in the new block, refit the nozzle and tighten it hot. Afterwards, check the nozzle height and bed leveling and run a short test print.
CreatBot LT Heating Block Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot LT Heating Block — Questions
Is this a genuine CreatBot heating block?
Yes. It is CreatBot part 102001, supplied through Rev1 Technologies, an authorized CreatBot dealer.
Will it fit my D600 Pro2?
No. The D600 Pro2 and D1000 use the Heating Block V1, part 102003.
Can I reuse my existing nozzle and heater cartridge?
Usually yes, if they are in good condition. Clean any old filament off the nozzle threads first, and replace the nozzle if its threads or tip are damaged.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
