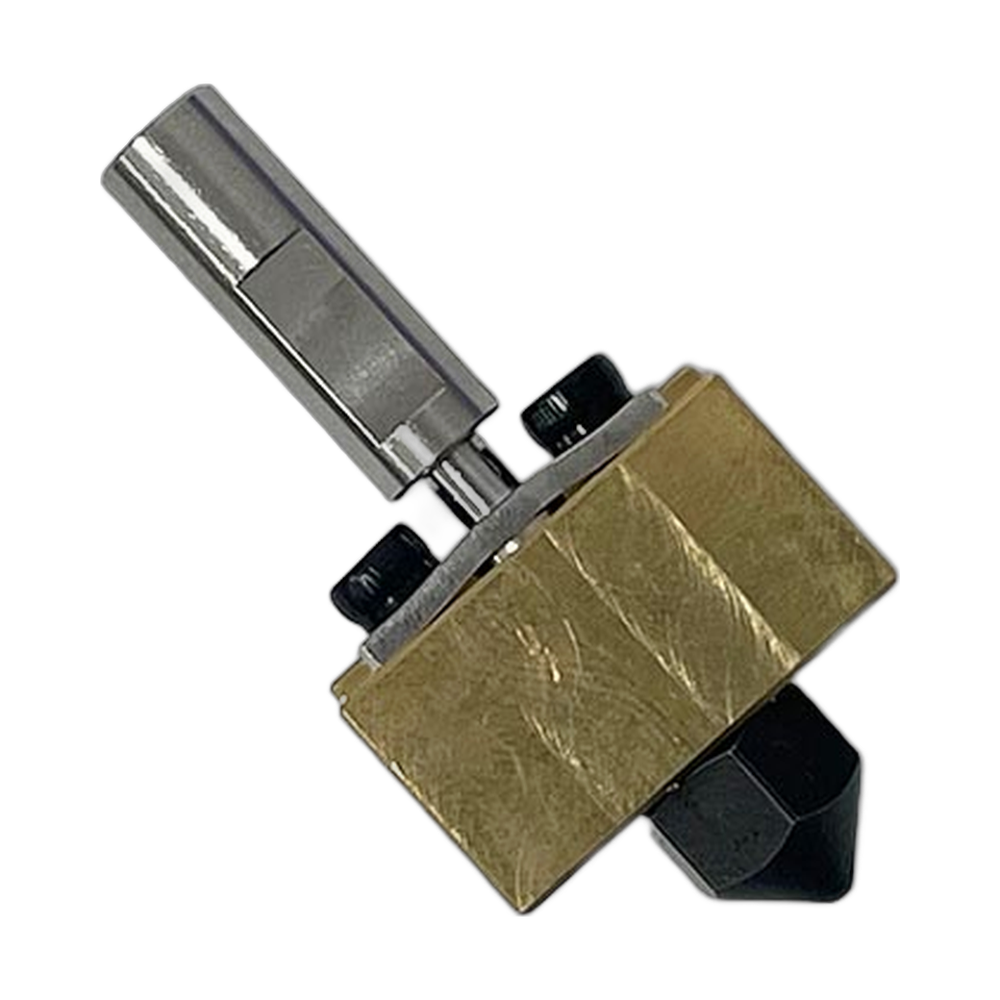

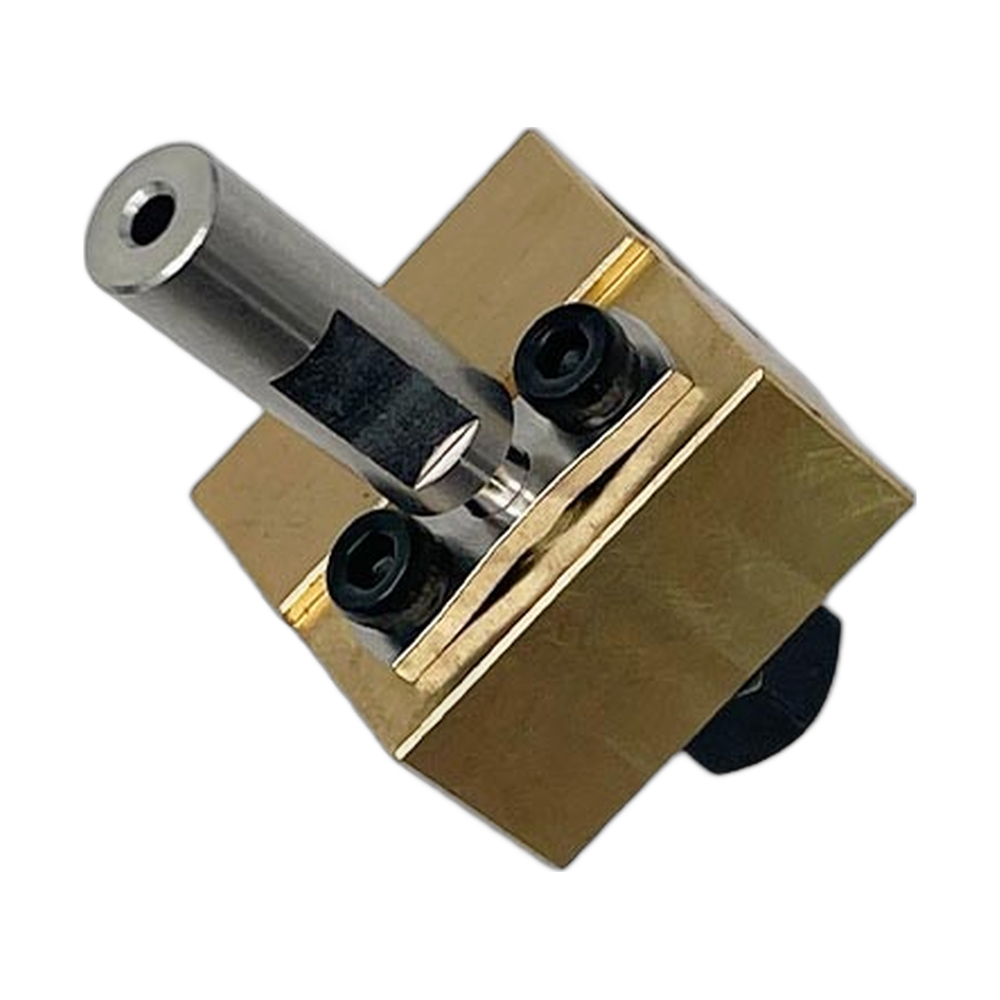

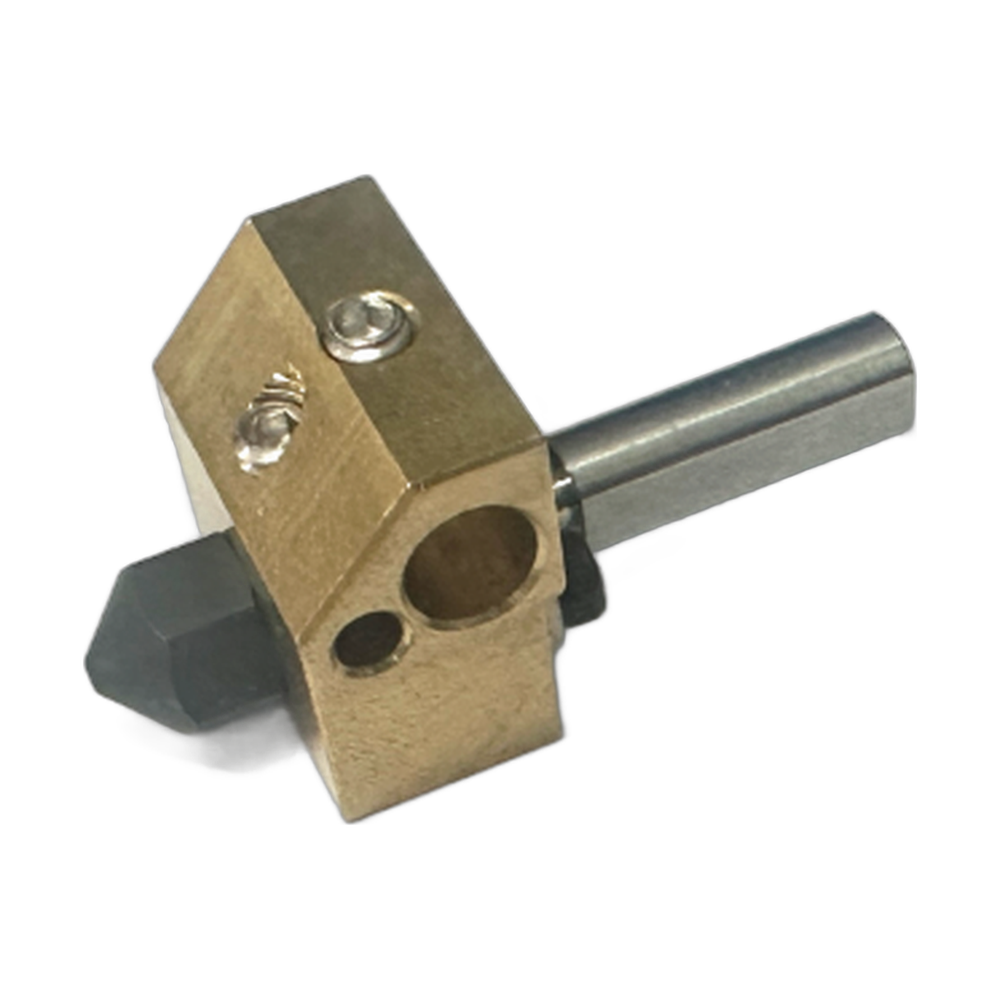

CreatBotHT HotendGenuine CreatBot Replacement Part
HT (High Temperature) Hotend for D Series and F Series 3D Printers
The CreatBot HT hotend is the complete high temperature hotend for CreatBot D Series and F Series 3D printers. It is the hotend that handles the engineering side of the printer's work, where materials need more heat than everyday filaments. CreatBot built it in three versions to match different printer generations, and it comes in four options (parts 104009, 104011, 104013 and 104015) with 0.4, 0.6 or 0.8 mm nozzles. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot HT Hotend, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
When to replace the complete HT hotend
The hotend still jams after you have replaced the nozzle and cleaned or replaced the heat break.
Threads in the heating block are damaged, or the assembly leaks.
A crash or blob of melted filament has damaged the hotend body or wiring.
You want a ready spare so a hotend fault does not stop production.
Choose your version and size
| Version | Size | Part number | Fits |
|---|---|---|---|
| V1 | 0.4 mm | 104009 | D600, D600 Pro, F430 |
| V2 | 0.4 mm | 104011 | D600 Pro, F1000 |
| V3 | 0.6 mm | 104013 | D600 Pro2, D1000 |
| V3 | 0.8 mm | 104015 | D600 Pro2, D1000 |
Compatible CreatBot 3D printers
Fit differs by version, so use the table above. The D600 Pro is listed for both V1 and V2.
Choosing the right HT hotend
The version follows the printer. D600 and F430 owners need V1. F1000 owners need V2. D600 Pro2 and D1000 owners need V3, then choose the nozzle: 0.6 mm for a balance of detail and speed, or 0.8 mm for faster large parts and filled engineering materials. D600 Pro owners should match the V1 or V2 hotend already on the machine.
Check you are replacing the right hotend. The low temperature LT hotend is a separate part (104008, 104010, 104012 and 104014). For the D600 Pro2 and D1000, CreatBot also offers the quick-swap hotend assembly in high temperature (104019) and low temperature (104018) versions. PEEK-300 owners need the PEEK300 HT hotend (104017).
Installation tips
Power the printer off and let the hotend cool. Photograph the wiring and connectors, then remove the old hotend and fit the new one in the same position. Reconnect, heat up, load your high temperature material and re-check nozzle height on both extruders before a first layer test.
CreatBot HT Hotend Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot HT Hotend — Questions
Which version and size do I need?
V1 for the D600 and F430, V2 for the F1000, V3 in 0.6 or 0.8 mm for the D600 Pro2 and D1000. D600 Pro owners match their installed version.
Is the HT hotend interchangeable with the LT hotend?
No. Order the HT hotend to replace an HT hotend.
Is this a genuine CreatBot hotend?
Yes, from Rev1 Technologies, an authorized CreatBot dealer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
