CreatBotHT Heat BreakGenuine CreatBot Replacement Part
HT Heat Break for D600, D600 Pro, F430, F1000 and PEEK-300 3D Printers

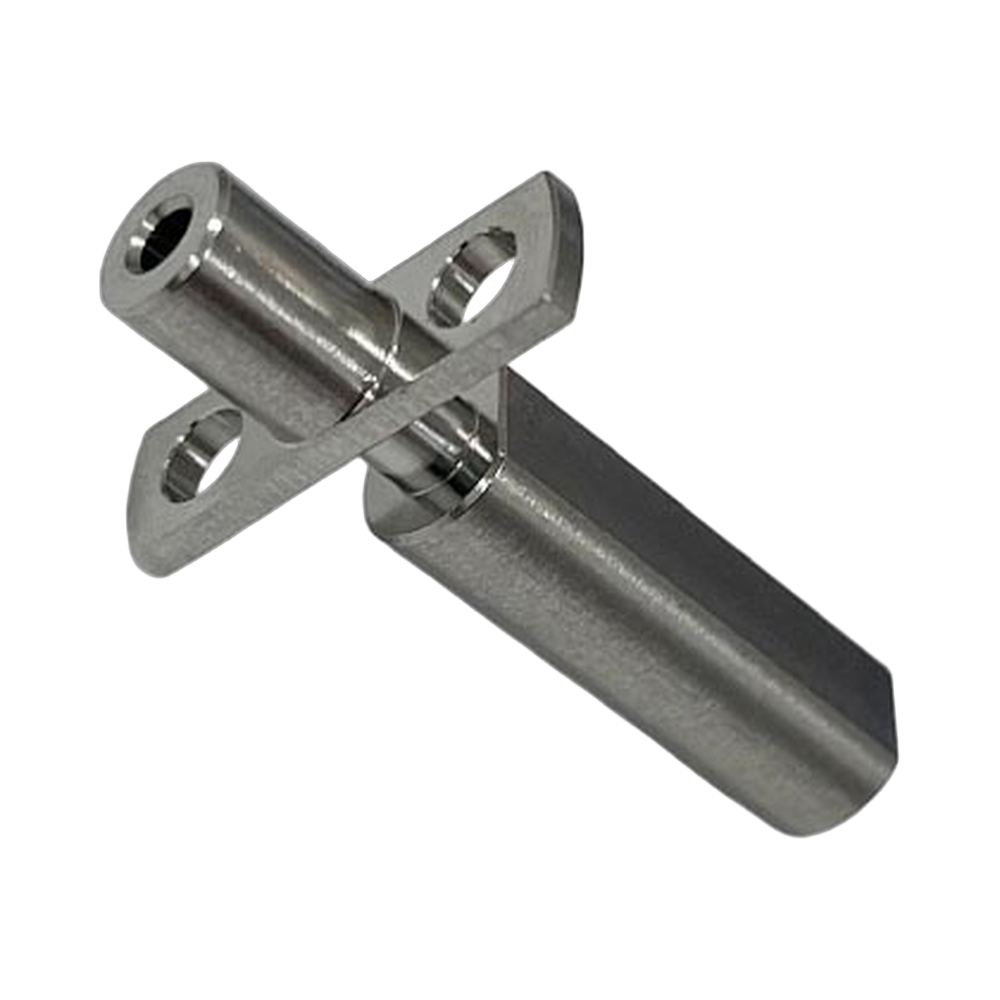

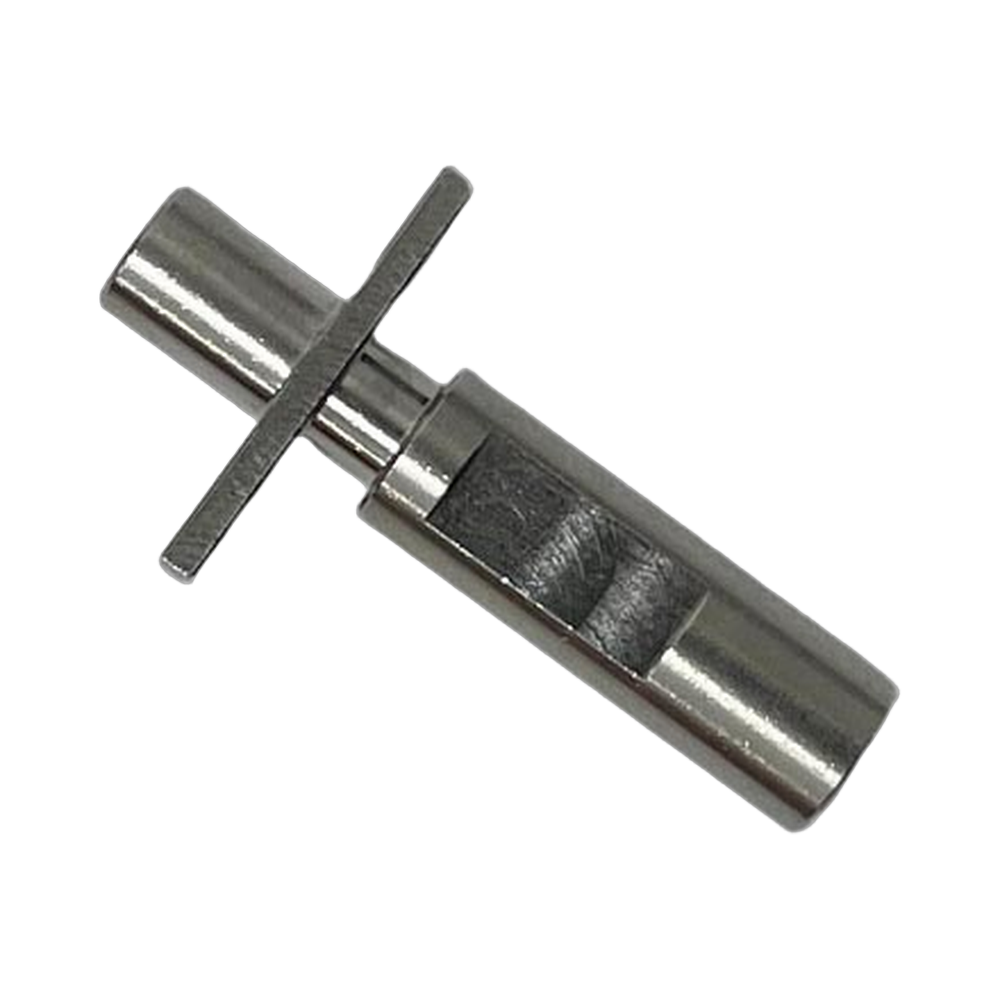

The CreatBot HT heat break is the OEM heat break for the high temperature (HT) hotend on CreatBot D600, D600 Pro, F430, F1000 and PEEK-300 printers. The heat break is the narrow tube between the heating block and the cooled section of the hotend. Its job is to keep heat in the melt zone so the filament above stays solid until it reaches the nozzle. It comes in two versions: V1 (part 103003) and V2 (part 103004). Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot HT Heat Break, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the heat break needs replacing
Jams that keep returning, especially during long prints or slow, detailed sections.
Filament that is swollen or deformed above the melt zone when you pull it out.
Leaks at the heat break threads, or threads damaged by a forced nozzle change.
A bore that is scored or coated with burnt material that cleaning does not clear.
Choose your version
| Version | Part number | Fits |
|---|---|---|
| V1 | 103003 | D600, D600 Pro, F430, PEEK-300 |
| V2 | 103004 | D600 Pro, F1000 |
Compatible CreatBot 3D printers
Fit differs by version. The D600 Pro appears under both versions, so D600 Pro owners should match the version of the hotend installed on their machine.
Choosing between V1 and V2, and HT or LT
For the D600, F430 and PEEK-300, order V1. For the F1000, order V2. For a D600 Pro, match the version of the hotend currently installed. If you cannot tell, contact Rev1 with the printer serial number before ordering.
Also make sure you need the HT part. CreatBot offers both low temperature (LT) and high temperature (HT) hotends for these printers, and each uses its own heat break. The matching LT heat breaks are V1 (103001) and V2 (103002). The D600 Pro2 HS and D1000 HS use the HS heat break (103005).
Installation tips
Power down and let the hotend cool to a safe handling temperature. Remove the nozzle and heat break from the heating block, clean any residue from the threads, and fit the new heat break fully into the cooled section. Reinstall the nozzle, bring the hotend up to printing temperature and give the nozzle a final tightening so it seals against the heat break. Load filament and run a test print.
CreatBot HT Heat Break Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot HT Heat Break — Questions
Which version do I need?
V1 (103003) for the D600, F430 and PEEK-300. V2 (103004) for the F1000. D600 Pro owners should match their installed hotend.
Can I use the HT heat break in the LT hotend?
Use the part made for each hotend. The LT heat breaks are 103001 and 103002.
Is this a genuine CreatBot part?
Yes, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
