CreatBotHS / Ultra Extruder Motor DriverGenuine CreatBot Replacement Part
Extruder Motor Driver for D400 HS, D600 Pro3 HS, D1000 Pro HS, D800 Ultra and D1200 Ultra

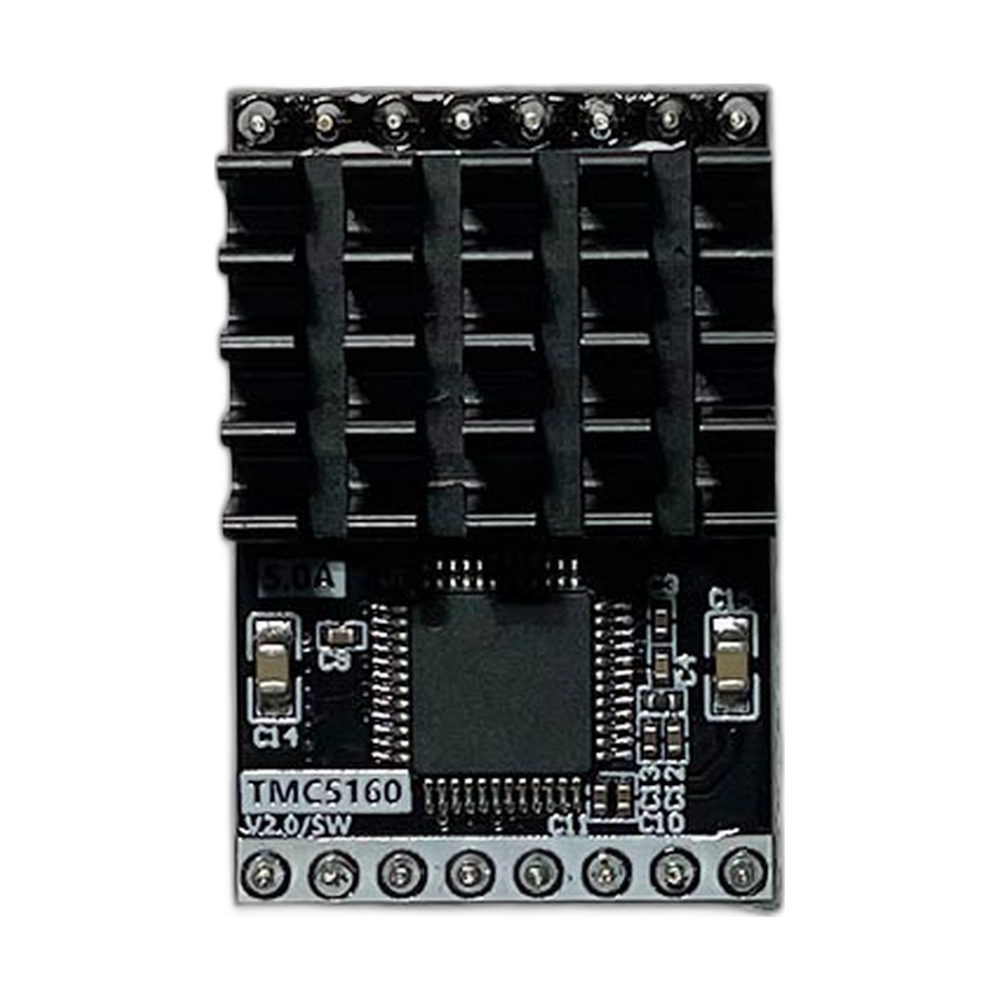

The CreatBot extruder motor driver (part 115018) is the OEM stepper driver that runs the extruder motor on CreatBot's current HS and Ultra printers. The extruder motor pushes filament into the hotend, and the driver is what powers it: it takes step commands from the main control board and delivers the current that turns the motor by exactly the right amount. If the driver falters, the printer keeps moving but the plastic does not keep up, which leaves gaps, thin walls and weak layer bonding. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot HS / Ultra Extruder Motor Driver, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the extruder motor driver may need replacing
The extruder motor stops, stutters or clicks while the axes keep moving.
Under-extrusion that remains after the nozzle and filament path are cleared.
One extruder works and the other does not, and the fault follows the driver when motor cables are swapped.
Extruder errors that return after a restart.
A partial clog, worn drive gear or damaged cable can look the same. Rev1 support can help you isolate the cause before you order.
Compatible CreatBot 3D printers
About part number 115018
CreatBot uses 115018 for more than one driver listing, including the Z motor driver for the D400 HS, D600 Pro3 HS and D1000 Pro HS, and the TMC5160 drive (V2). Tell Rev1 your printer model and that you need the extruder driver when you order. Earlier HS printers use their own E drives: the D600 Pro2 HS uses part 115002 and the D1000 HS uses part 115006.
Installation tips
Turn the printer off and unplug it. Photograph the existing driver to record its orientation and cable positions, fit the new module the same way round, and reconnect the extruder motor. Heat the hotend and test extrusion manually before you resume printing.
CreatBot HS / Ultra Extruder Motor Driver Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot HS / Ultra Extruder Motor Driver — Questions
Does it fit the D800 Ultra and D1200 Ultra?
Yes. Both are on CreatBot's fit list for this driver, along with the D400 HS, D600 Pro3 HS and D1000 Pro HS.
Will it fit my D600 Pro2 HS?
The D600 Pro2 HS uses E drive part 115002.
Is this a genuine CreatBot part?
Yes, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
