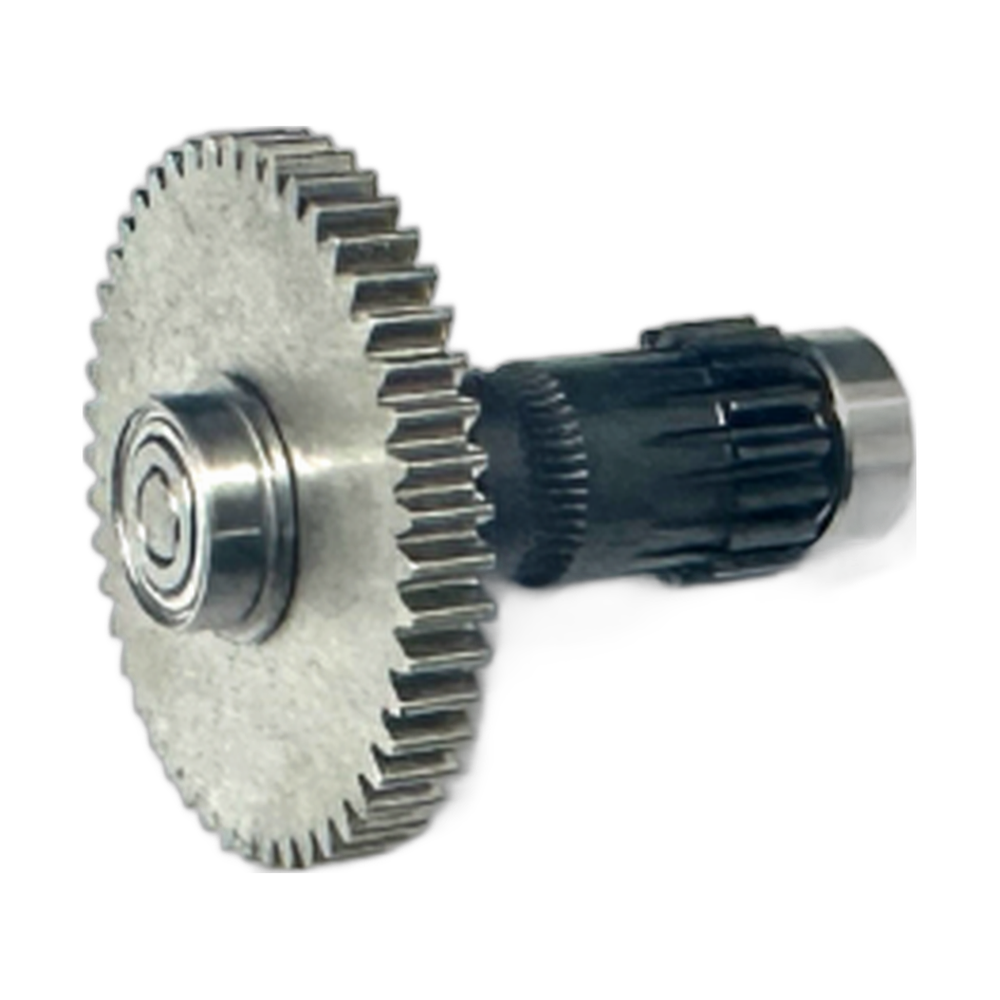

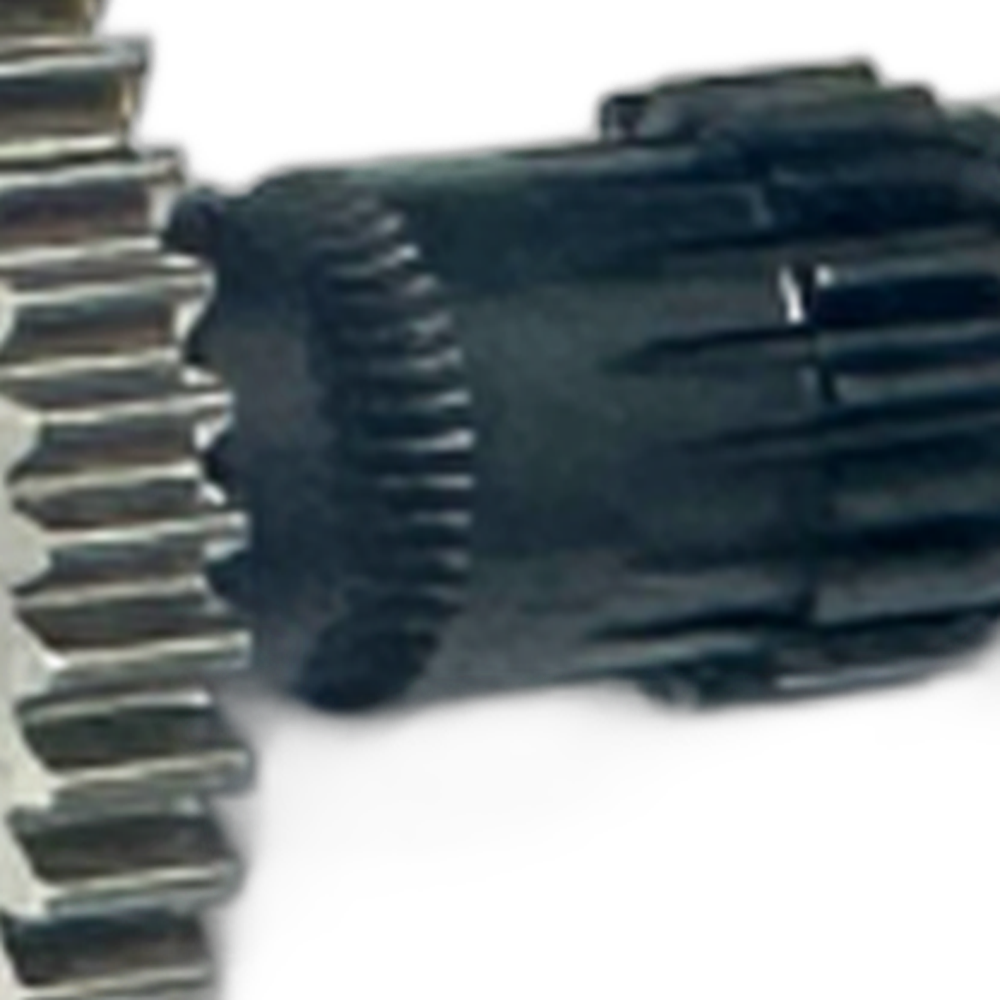

CreatBotHS Reduction Gear Set with BearingsGenuine CreatBot Replacement Part
HS Extruder Reduction Gear with Bearings (Complete Set) for D Series HS, D Series and Ultra
The CreatBot HS extruder reduction gear with bearings (part 124008) is the complete OEM set for the reduction gear in CreatBot's geared extruder. Instead of replacing the gear and its bearings one at a time, this set lets you renew the whole reduction stage in a single job. It is the simplest fix when an extruder has many hours on it and the wear is not limited to one component. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot HS Reduction Gear Set with Bearings, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Why choose the complete set
Gear and bearings are replaced together, so a fresh gear does not run on tired bearings.
Rough feel, noise and slipping can come from either the gear or a bearing. The set covers both.
Open the extruder once rather than coming back later for the next worn piece.
That match the original extruder exactly.
Signs your extruder gear train is worn
Clicking, skipping or slipping while the nozzle is clear.
Gritty or loose feel when turning the gear by hand.
Inconsistent extrusion, new noise, or visibly worn gear teeth.
Compatible CreatBot 3D printers
Set or single parts?
If only one part is worn, CreatBot also supplies them individually: the reduction gear (124009), the reduction gear bearing (124010) and the flange bearing (124011). Those single parts are also listed for the PEEK-300, which this complete set is not. For a PEEK-300, order the individual parts.
Installation tips
Power the printer off, let the hotend cool and unload the filament. Photograph the extruder at each step as you take it apart. Install the bearings squarely, fit the gear, and check that it turns freely with no side play. Reassemble, load filament and extrude a test length before printing.
CreatBot HS Reduction Gear Set with Bearings Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot HS Reduction Gear Set with Bearings — Questions
Does the set fit the PEEK-300?
The PEEK-300 is not listed for the complete set. Use the individual parts 124009, 124010 and 124011.
Can Rev1 rebuild the extruder for me?
Yes. Rev1 is a certified CreatBot service provider and can rebuild and test the extruder.
Is this a genuine CreatBot set?
Yes. It is CreatBot part 124008, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
