CreatBotHS MotherboardGenuine CreatBot Replacement Part
HS Motherboard for D600 Pro2 HS and D1000 HS 3D Printers

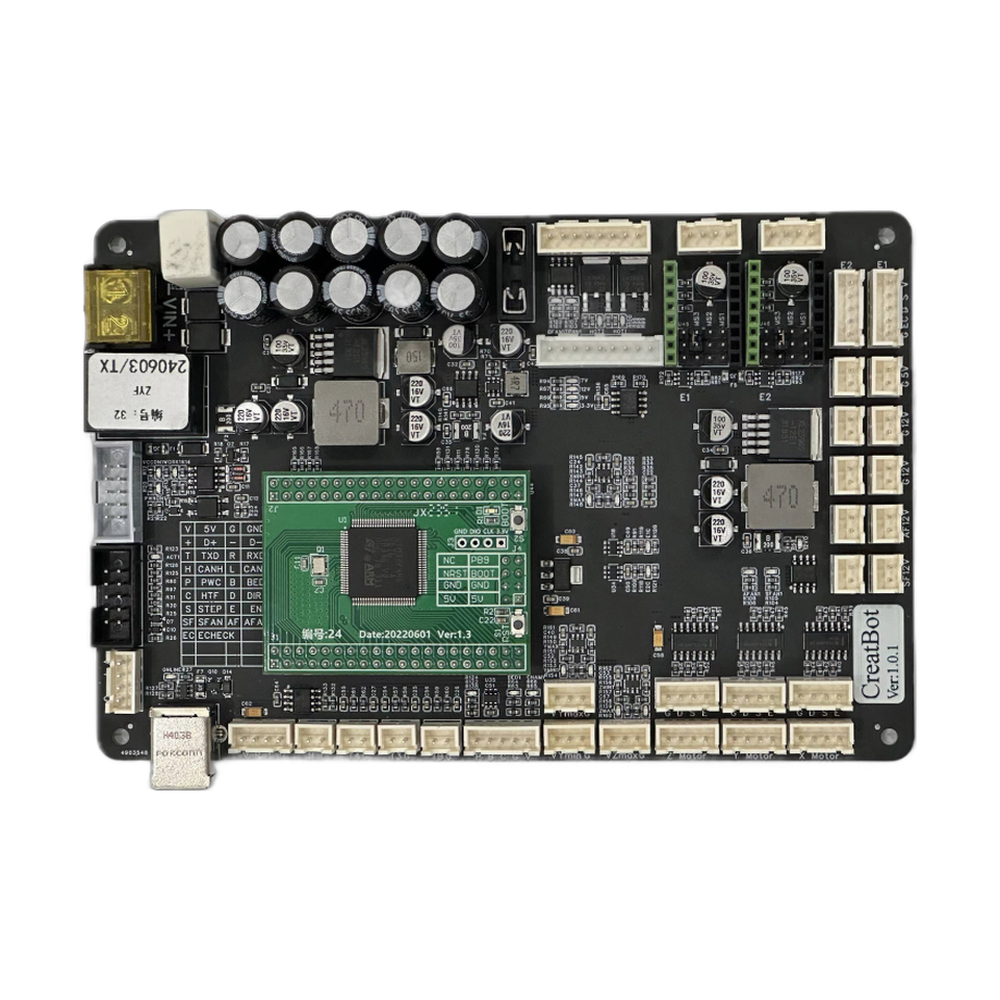

The CreatBot HS motherboard is the OEM main control board for the CreatBot D600 Pro2 HS and D1000 HS large format 3D printers. The motherboard runs the printer: it drives the motion system, controls the hotends and heated components, and reads the printer's sensors. When a board fails, a genuine CreatBot replacement is the way to restore the printer to factory behavior. CreatBot sells this board under two part numbers, one for each printer, and this listing offers both. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot HS Motherboard, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
One board, two CreatBot part numbers
CreatBot lists the board as 111001 for the D600 Pro2 HS and as 111002 for the D1000 HS. CreatBot confirmed they are the same physical board, so each number fits both printers. Pick your printer's number and you receive the identical motherboard.
Signs your motherboard may need replacing
The printer will not boot, or boots without responding to the touchscreen.
Axes, heaters or fans stop responding while the parts themselves test good.
Visible damage on the board, such as burnt components or a damaged connector.
A failed power supply, cable or driver can look the same. Contact Rev1 support before you order and we will help you confirm the board is the cause.
Choose your printer
| Printer | CreatBot part number | Fits |
|---|---|---|
| D600 Pro2 HS | 111001 | D600 Pro2 HS, D1000 HS |
| D1000 HS | 111002 | D600 Pro2 HS, D1000 HS |
Compatible CreatBot 3D printers
Other CreatBot printers use different boards. The D600 Pro3 HS uses part 111020, the D1000 Pro HS uses 111021, the D600 Pro2 uses 111010 and the D1000 uses 111011.
Which part number should I choose?
Either one. The board is identical; CreatBot catalogs it once for each HS printer. Order your own printer's number to keep your service records matched. Note that the newer Pro3 HS and Pro HS machines are not covered by this board.
Installation
Power the printer off and unplug it before opening the electronics bay. Photograph every connector before you disconnect anything, use anti-static precautions, and check the firmware version with Rev1 support after installation. If your printer is under warranty, contact us first: Rev1 can perform the replacement as your certified CreatBot service provider.
CreatBot HS Motherboard Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot HS Motherboard — Questions
Which printer number do I need?
Either. 111001 (D600 Pro2 HS) and 111002 (D1000 HS) are the same board and fit both printers.
Will it work in a D600 Pro3 HS?
No. The D600 Pro3 HS uses part 111020.
Can Rev1 install it for me?
Yes. Rev1 is a certified CreatBot service provider and can diagnose, replace and test the board.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
