CreatBotHS Heating BlockGenuine CreatBot Replacement Part
HS Heating Block for D600 Pro2 HS, D1000 HS, F430 NX and PEEK-250 3D Printers

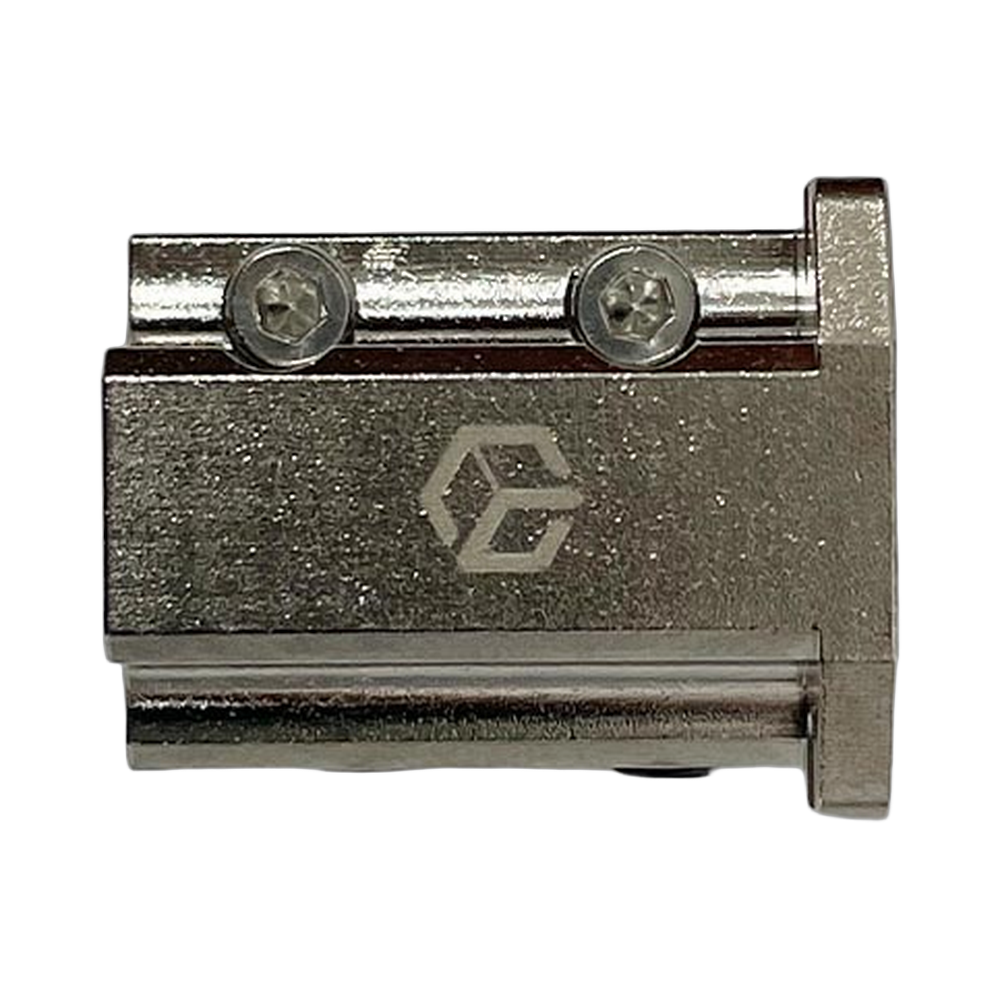

The CreatBot HS heating block is the OEM heater block for the high speed hotends on CreatBot HS printers and the F430 NX and PEEK-250. The heating block holds the heating tube and temperature sensor and carries the nozzle, so it is the part that turns heater power into a stable melt zone. It comes in two versions: V1 (part 102004) and V2 (part 102005), each for different printers. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot HS Heating Block, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the heating block needs replacing
Stripped or damaged nozzle threads, often after a nozzle was changed cold or over-tightened.
Filament leaking around the nozzle or heat break that returns after re-tightening.
The heating tube or temperature sensor no longer sits firmly in its bore.
Heavy carbonized buildup or a block deformed by a past blob of melted filament.
Choose your version
| Version | Part number | Fits |
|---|---|---|
| V1 | 102004 | D600 Pro2 HS, D1000 HS |
| V2 | 102005 | F430 NX, PEEK-250 |
Compatible CreatBot 3D printers
Fit differs by version: V1 is for the D600 Pro2 HS and D1000 HS, and V2 is for the F430 NX and PEEK-250.
Which version fits my printer
Choose by printer model, not by appearance. The D600 Pro2 HS and D1000 HS take V1. The F430 NX and PEEK-250 take V2. Newer HS printers use a different block: the D400 HS, D600 Pro3 HS, D1000 Pro HS, D800 Ultra and D1200 Ultra take the Pro HS heating block (part 102011). Non-HS models have their own blocks, for example the D600 Pro2 and D1000 heating block V1 (102003) and the PEEK-300 heating block (102006). If you are unsure, send Rev1 your printer model and serial number and we will confirm the part.
Installation tips
Power the printer off and let the hotend cool before you start. Remove the hotend cover (the D600 Pro2 HS and D1000 HS use part 102010), then the nozzle, heating tube and temperature sensor, noting how the wires are routed. Fit the new block, reinstall the parts, and tighten the nozzle against the heat break once the hotend is back at printing temperature. Run a heat-up check and a test print before production work.
CreatBot HS Heating Block Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot HS Heating Block — Questions
Which version do I need?
V1 (102004) for the D600 Pro2 HS and D1000 HS. V2 (102005) for the F430 NX and PEEK-250.
Does this fit my D600 Pro3 HS?
No. The D600 Pro3 HS uses the Pro HS heating block, part 102011.
Can Rev1 do the repair?
Yes. Rev1 is a certified CreatBot service provider and can rebuild the hotend for you.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
