CreatBotHS Extruder PCBGenuine CreatBot Replacement Part
HS Extruder PCB for D600 Pro2 HS and D1000 HS 3D Printers

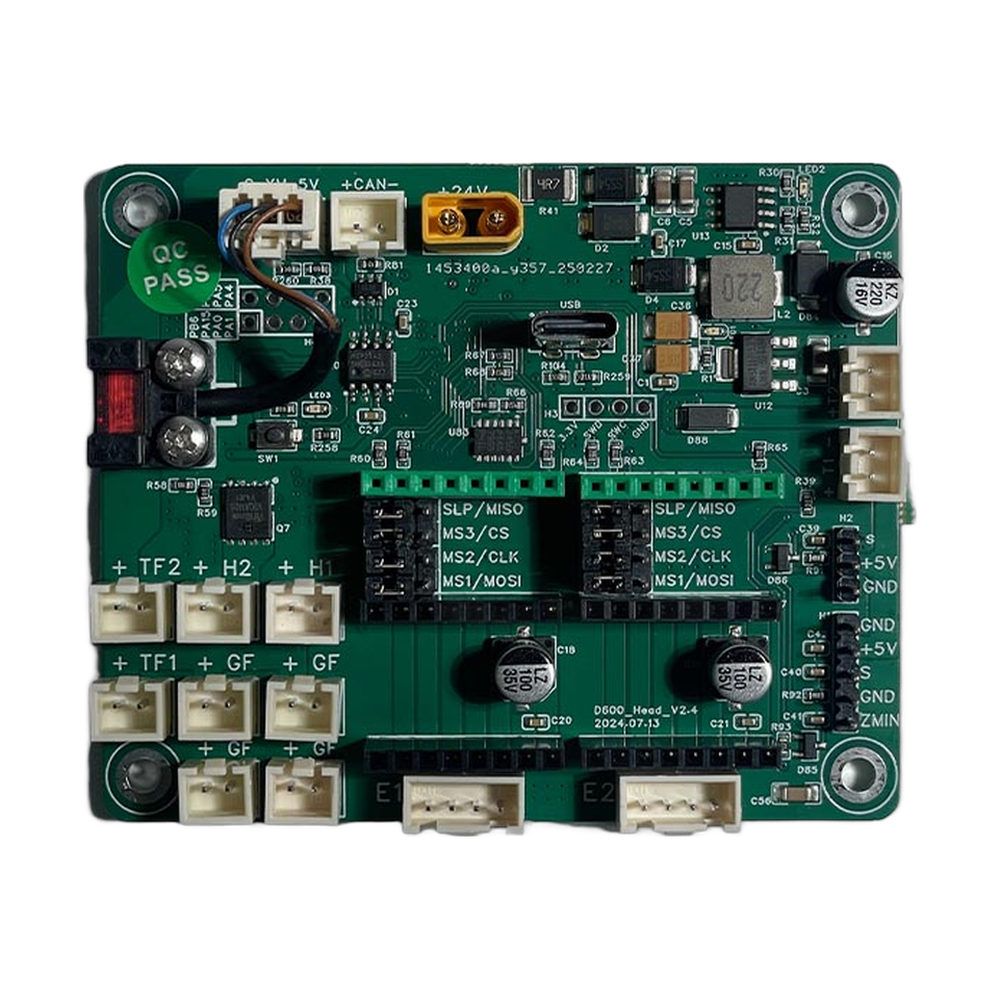

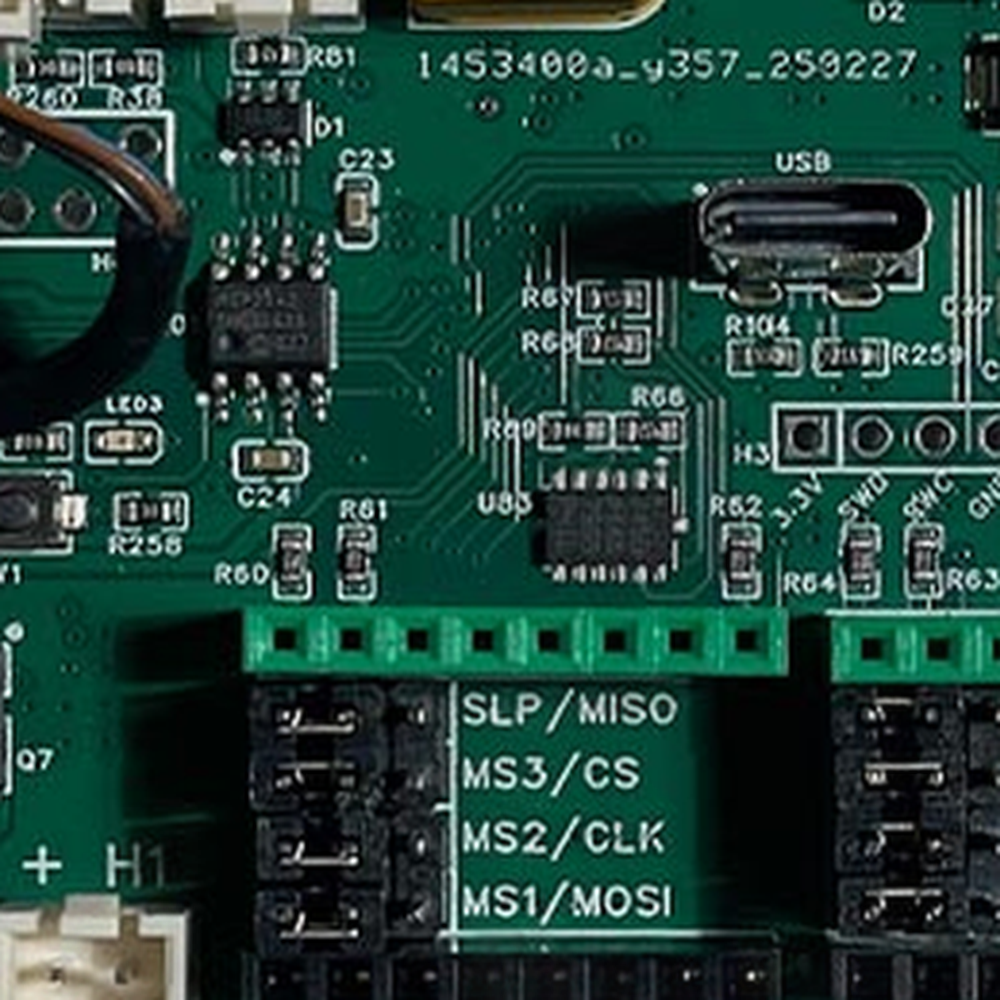

The CreatBot HS extruder PCB is the circuit board on the print head of the CreatBot D600 Pro2 HS and D1000 HS. It is the connection point between the moving extruder and the rest of the printer: the hotend heater, the temperature sensor, the fans and the extruder wiring meet here and run back to the motherboard. A damaged extruder board can take a working hotend offline, so replacing the board is often the fix for faults that seem to come from several parts at once. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot HS Extruder PCB, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the extruder PCB needs replacing
Hotend heating, temperature reading or fan errors on one print head that move when you swap cables.
Intermittent faults that come and go as the print head moves.
A burnt component, a damaged connector or a cracked board on the print head.
A worn cable or a failed heater or sensor can cause similar errors. Contact Rev1 support and we will help you find the cause before you order.
Choose your printer
| Printer option | Part number | Fits |
|---|---|---|
| D600 Pro2 HS | 112001 | D600 Pro2 HS, D1000 HS |
| D1000 HS | 112002 | D600 Pro2 HS, D1000 HS |
Compatible CreatBot 3D printers
Fit is the same for both options. Other CreatBot printers use different extruder boards: the D600 Pro2 and D1000 use the V1.2 board (112012 or 112018), and the D400 HS, D600 Pro3 HS and D1000 Pro HS use the Pro HS board (112020 or 112021).
Which part number should I choose?
Pick the number that names your printer so it matches your parts list. The board is identical under both numbers, so a shop running both the D600 Pro2 HS and the D1000 HS can stock one spare for both machines.
Installation tips
Power the printer off, unplug it and let the hotend cool before you open the print head. Photograph every connector on the old board, use anti-static precautions, and move the cables across one at a time. Make sure each plug is fully seated and the wiring is clear of the moving parts, then heat the hotend and run each fan before your first print.
CreatBot HS Extruder PCB Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot HS Extruder PCB — Questions
Which printer option do I need?
Choose the option that names your printer: D600 Pro2 HS (112001) or D1000 HS (112002). It is the same board, so either one fits both.
Will it fit my D600 Pro2?
No. The D600 Pro2 uses the V1.2 extruder board, part 112012 or 112018.
Is this a genuine CreatBot part?
Yes. It is the OEM CreatBot extruder PCB, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
