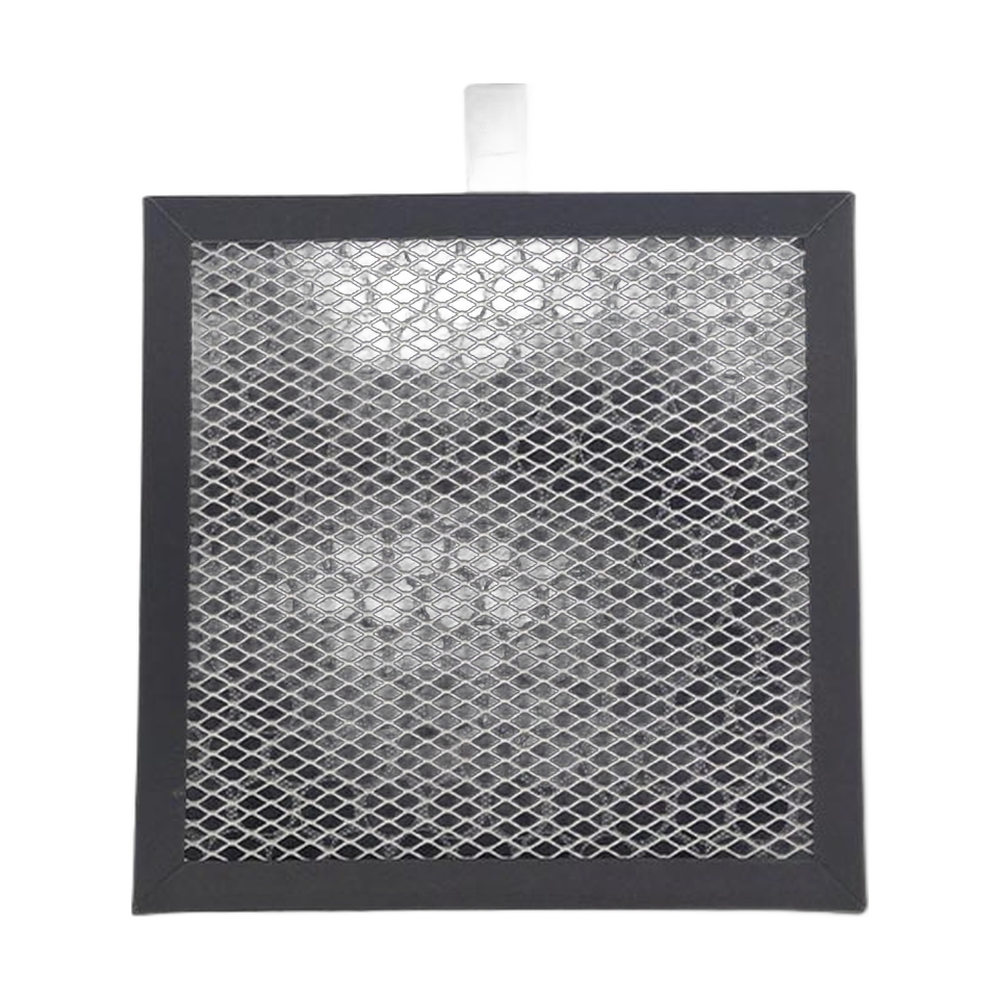

CreatBotHEPA Filter for D600, D1000, F1000, PEEK-300Genuine CreatBot Replacement Part
HEPA Filter for D Series, D Series HS, F1000 and PEEK-300 3D Printers
The CreatBot HEPA filter is the OEM air filter for the enclosed build chamber on eight CreatBot printers in the D Series, D Series HS, F Series and PEEK Series. A HEPA filter traps fine particles in the air that the chamber exhausts. That matters on large enclosed machines that run ABS, ASA, nylon and other engineering materials for hours at a time. CreatBot sells this filter under eight part numbers, one for each printer, and this listing offers all of them. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot HEPA Filter for D600, D1000, F1000, PEEK-300, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
One filter, eight CreatBot part numbers
CreatBot confirmed that 109003 through 109010 are the same physical filter, and each one fits every printer listed below. Pick the number that matches your printer and you receive the identical HEPA filter.
When to replace the HEPA filter
The filter looks discolored or loaded with dust.
Airflow through the filter fan is noticeably weaker than when the filter was new.
You smell print fumes in the room more than you used to during long jobs.
HEPA filters are consumables and cannot be cleaned back to new. Keeping a spare on hand avoids running the printer without filtration.
Choose your printer
| Printer | CreatBot part number |
|---|---|
| D600 | 109003 |
| D600 Pro | 109004 |
| D600 Pro2 | 109005 |
| D600 Pro2 HS | 109006 |
| D1000 | 109007 |
| D1000 HS | 109008 |
| F1000 | 109009 |
| PEEK-300 | 109010 |
Every number in this table is the same filter and fits all eight printers.
Compatible CreatBot 3D printers
Other models use different filters: F430 (109001), F430 NX (109002), PEEK-250 (109011), and the HEPA and carbon air filter (109013) for the D400 HS, D600 Pro3 HS and D1000 Pro HS.
Which part number should I choose?
Any of them. CreatBot catalogs the filter once per printer, but the part is the same. Most owners order their own printer's number so it matches the manual. Shops running several of these printers can stock one filter for all of them.
Installation tips
Change the filter with the printer idle and the chamber cool. Remove the old filter carefully so trapped dust stays in it, and bag it for disposal. Fit the new filter with its seal seated all the way around so air cannot bypass it, then run the filter fan and check for airflow.
CreatBot HEPA Filter for D600, D1000, F1000, PEEK-300 Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot HEPA Filter for D600, D1000, F1000, PEEK-300 — Questions
Which printer number do I need?
Any of 109003 to 109010. They are the same filter and fit all eight printers above.
Does it fit my F430?
No. The F430 uses part 109001 and the F430 NX uses 109002.
Is this a genuine CreatBot filter?
Yes. It is supplied by Rev1 Technologies, an authorized CreatBot dealer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
