CreatBotHEPA and Carbon Air FilterGenuine CreatBot Replacement Part
HEPA and Carbon Air Filter for D400 HS, D600 Pro3 HS and D1000 Pro HS

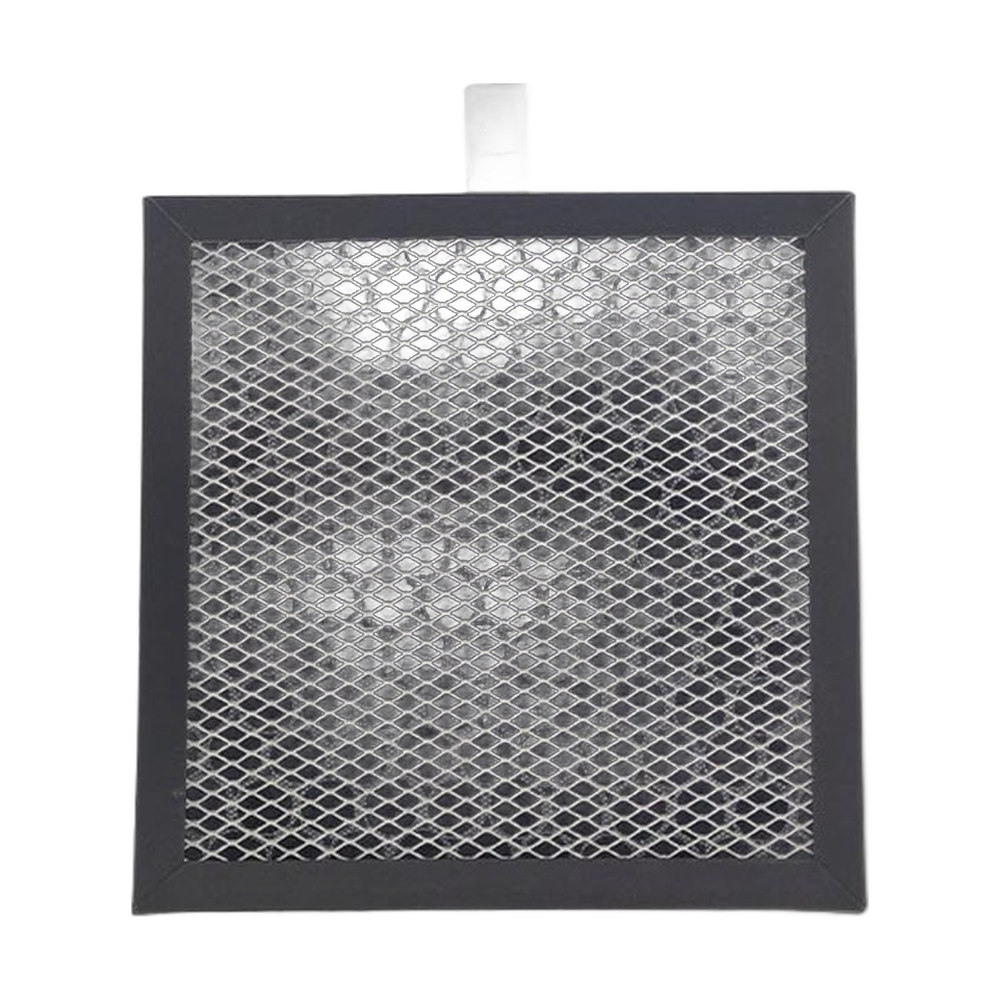

The CreatBot HEPA and carbon air filter (part 109013) is the OEM replacement air filter for the CreatBot D400 HS, D600 Pro3 HS and D1000 Pro HS. It combines two kinds of filtration in one part. The HEPA stage traps fine particles released when filament is melted. The carbon stage adsorbs odors and gases that particle filters alone cannot catch. Both stages fill up with use, and once they do, filtration drops. Replacing the filter restores the printer's air cleaning to as-new condition. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot HEPA and Carbon Air Filter, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Why a combined HEPA and carbon filter
HEPA media handles fine particles; activated carbon handles smells and fumes.
ABS, ASA, nylon and PC are known for stronger odors than PLA.
The same filter fits the D400 HS, D600 Pro3 HS and D1000 Pro HS, which makes spares simple for multi-printer shops.
The filter seals in the housing, so air passes through both stages.
Compatible CreatBot 3D printers
These printers, along with the D800 Ultra and D1200 Ultra, also use the external fan filter element (109014), a separate part. Earlier HS models take HEPA only filters: D600 Pro2 HS (109006) and D1000 HS (109008).
When to replace it
The two stages wear differently. The HEPA media clogs as it collects particles, which shows up as discoloration and weaker airflow. The carbon saturates as it absorbs odors, which shows up as printing smells returning to the room even when the filter still looks clean. Replace the filter when you notice either sign. Printers running engineering materials daily will need filters more often than those printing PLA. Neither stage can be cleaned or recharged.
Installation tips
Power the printer off before opening the filter housing. Remove the old filter and note its orientation, then fit the new one the same way so the stages face the airflow correctly. Check that it is fully seated and close the housing. Seal the used filter in a bag for disposal.
CreatBot HEPA and Carbon Air Filter Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot HEPA and Carbon Air Filter — Questions
Will it fit my D600 Pro2 HS?
No. The D600 Pro2 HS uses the HEPA filter 109006.
Do I also need the external fan filter element?
They are separate parts that both need periodic replacement. Many users change them together.
Is this a genuine CreatBot part?
Yes. It is CreatBot part 109013, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
