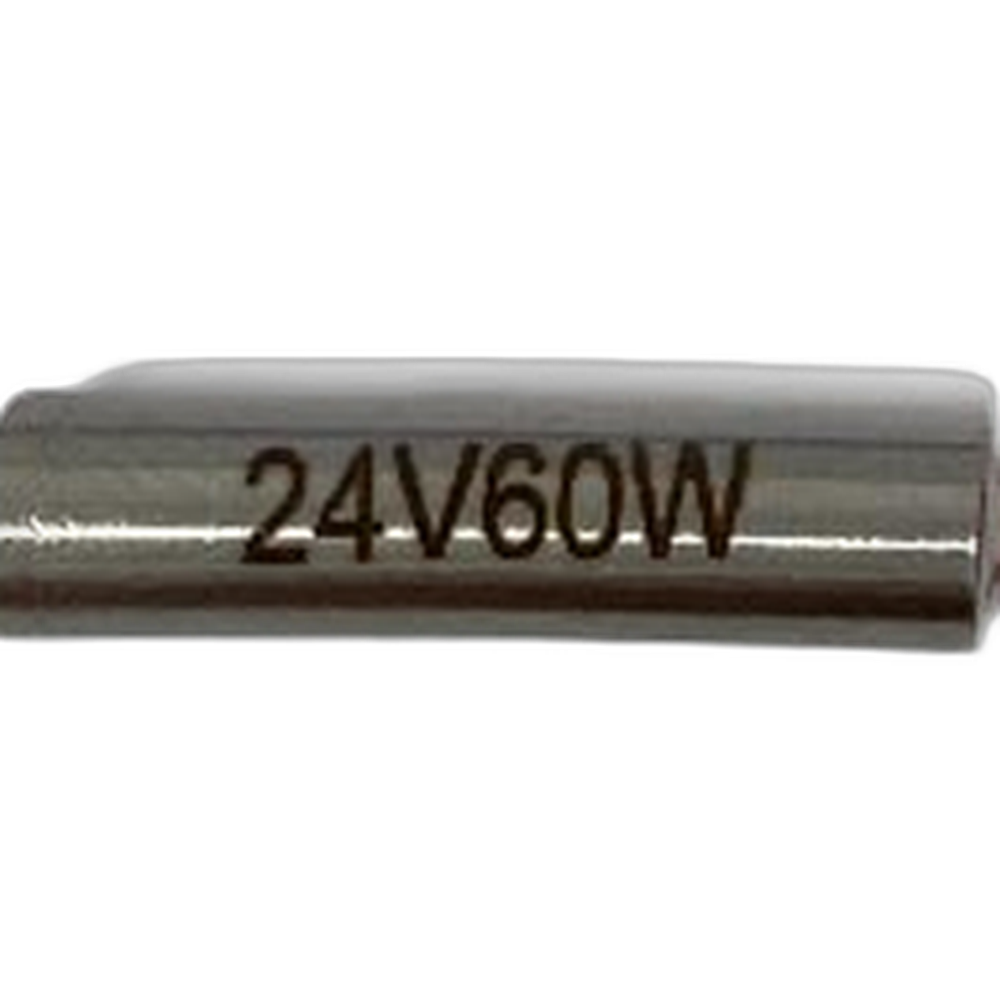

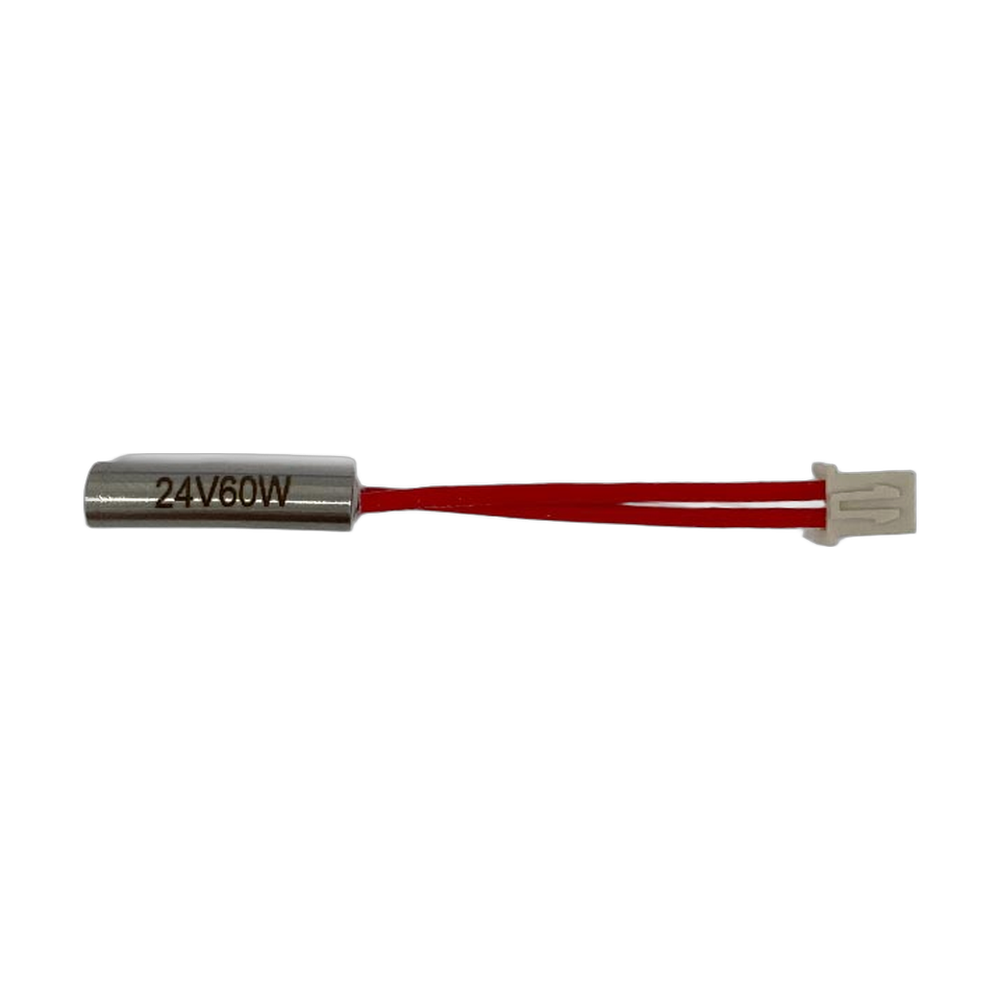

CreatBotD600 Pro2 / D1000 / F1000 Heating TubeGenuine CreatBot Replacement Part
Heating Tube for D600 Pro2, D1000 and F1000 3D Printers
The CreatBot heating tube is the heater cartridge that sits in the hotend heating block and brings the nozzle up to printing temperature. Working with the temperature sensor and the printer's controller, it holds the melt zone steady so filament flows evenly through the nozzle. A failing heating tube shows up as slow heat-up, heating errors or a hotend that cannot hold its set temperature. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot D600 Pro2 / D1000 / F1000 Heating Tube, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the heating tube needs replacing
The hotend heats slowly, or the printer stops with a heating error.
The temperature drops or swings during a print and extrusion becomes weak.
Damaged insulation, a burnt lead or a loose connection at the heater wires.
A faulty temperature sensor or a loose connector can produce similar errors. Contact Rev1 support if you would like help finding the cause before you order.
Choose your printer
| Printer option | Part number | Fits |
|---|---|---|
| F1000 | 105009 | D600 Pro2, D1000, F1000 |
| D1000 | 105010 | D600 Pro2, D1000, F1000 |
| D600 Pro2 | 105011 | D600 Pro2, D1000, F1000 |
Compatible CreatBot 3D printers
Fit is the same for every option. Other CreatBot printers use different heating tubes: the D600 and D600 Pro use 105007, the D600 Pro2 HS and D1000 HS use 105001 or 105002, and the Pro HS and Ultra models use the Pro-HS heating tube (105014).
Which part number should I choose?
Choose the number that names your printer so it matches your parts list. The part is the same either way. If you run a D600 Pro2, D1000 and F1000 side by side, one spare covers all three. Dual extruder printers have one heating tube per hotend, so if you keep spares on hand, plan for both sides.
Installation tips
Power the printer off and let the hotend cool completely. Note how the heater wires are routed, loosen the screw that clamps the heating tube in the heating block and slide the old tube out. Insert the new tube fully, tighten the clamp, route the wires clear of moving parts and reconnect. Heat the hotend and check that it reaches and holds the set temperature before you run a test print.
CreatBot D600 Pro2 / D1000 / F1000 Heating Tube Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot D600 Pro2 / D1000 / F1000 Heating Tube — Questions
Which printer option do I need?
Choose the option for your printer: F1000 (105009), D1000 (105010) or D600 Pro2 (105011). They are the same heating tube, so any of them fits all three.
Will it fit my D1000 HS?
No. The D1000 HS uses heating tube 105001 or 105002.
Is this a genuine CreatBot part?
Yes. It is the OEM CreatBot heating tube, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
