CreatBotHeating Block V1Genuine CreatBot Replacement Part
Heating Block V1 for D600 Pro2 and D1000 3D Printers

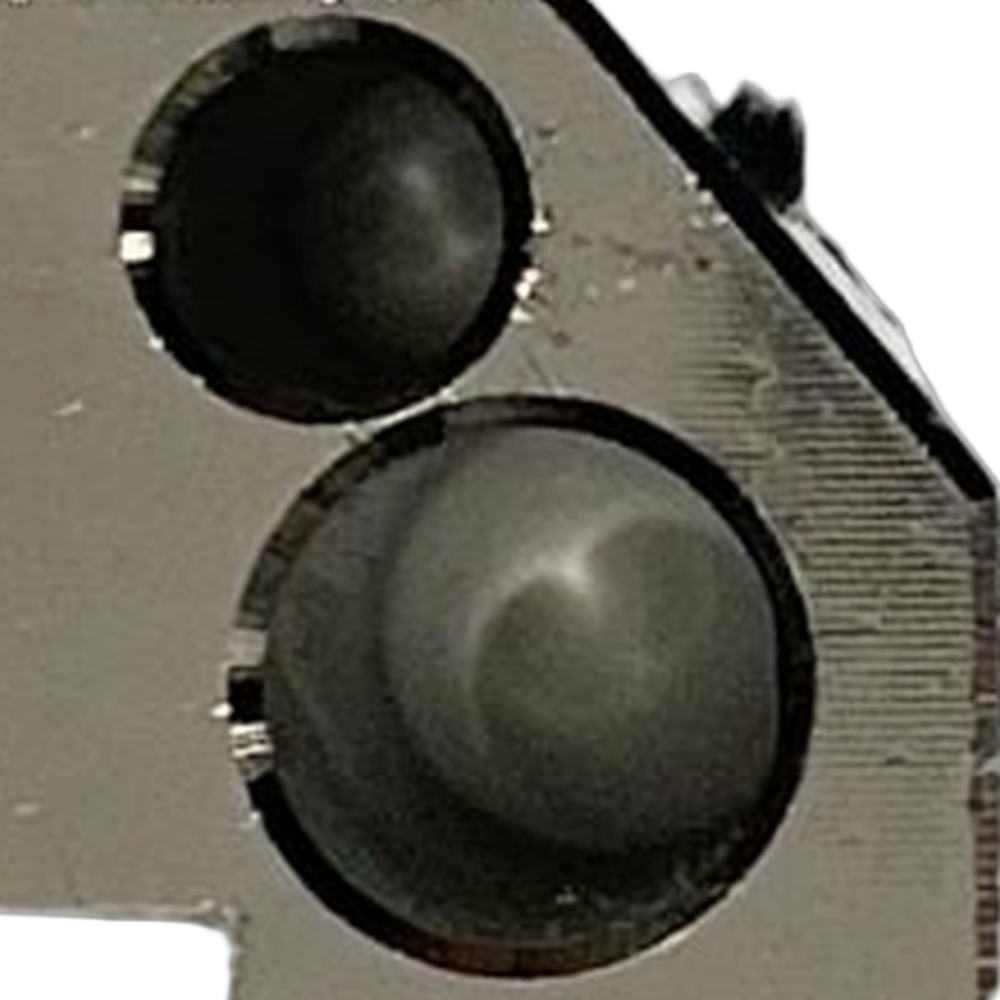

The CreatBot Heating Block V1 (part 102003) is the OEM hotend heating block for the CreatBot D600 Pro2 and D1000. The heating block sits at the bottom of the hotend: the nozzle threads into it, and it holds the heater cartridge and temperature sensor that keep the melt zone at printing temperature. A damaged or worn block affects every print, so replacing it with the genuine V1 part returns the hotend to its original fit and behavior. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot Heating Block V1, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the heating block needs replacing
The nozzle will not tighten fully or seal properly.
Around the nozzle or heat break and building up on the block.
For the heater cartridge or sensor, so they no longer sit securely.
After a leak that cannot be cleaned off without damaging the block.
Unstable hotend temperature can also come from a failing heater cartridge or sensor. Contact Rev1 support if you want help confirming the cause before you order.
Compatible CreatBot 3D printers
Check your exact model before ordering. The D600 Pro2 HS and D1000 HS use the HS Heating Block V1 (part 102004). The D600 Pro3 HS, D1000 Pro HS, D400 HS, D800 Ultra and D1200 Ultra use the Pro HS heating block (part 102011). The D600, D600 Pro and F430 use the LT Heating Block (part 102001) or HT Heating Block (part 102002).
Installation tips
If you need to remove the nozzle, do it with the hotend at printing temperature so the threads release cleanly, and support the block while you turn it. Then power the printer off, unplug it and let the hotend cool fully before you remove the heater cartridge and sensor. Photograph the wiring routing first so everything goes back the same way. Seat the heater and sensor securely in the new block, reinstall the nozzle and tighten it hot. Afterwards, check nozzle height, recalibrate and run a short test print while watching for leaks.
CreatBot Heating Block V1 Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot Heating Block V1 — Questions
Is this a genuine CreatBot part?
Yes. It is CreatBot part 102003, supplied through Rev1 Technologies, an authorized CreatBot dealer.
Will it fit my D600 Pro2 HS?
No. The D600 Pro2 HS and D1000 HS use the HS Heating Block V1, part 102004. This V1 block is for the standard D600 Pro2 and D1000.
Should I replace the nozzle at the same time?
Inspect it. If the nozzle threads are damaged or the tip is worn, fit a new nozzle with the new block so the two seal properly.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
