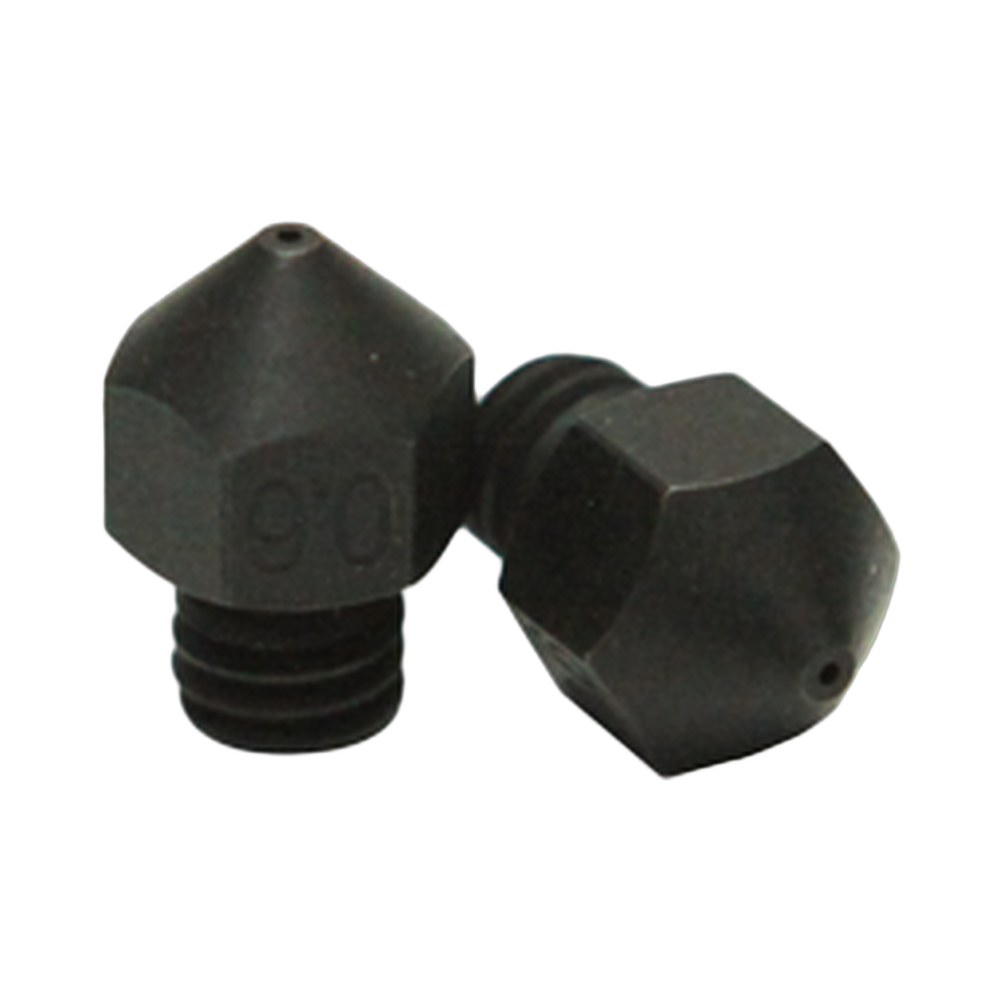

CreatBotHardened Steel NozzleGenuine CreatBot Replacement Part
Hardened Steel Nozzle for D Series, D Series HS, Ultra, F Series and PEEK-300 3D Printers
The CreatBot hardened steel nozzle is the wear resistant replacement nozzle for CreatBot printers that run abrasive engineering filaments. Carbon fiber and glass fiber filled materials grind away a brass bore: the opening widens, extrusion becomes inconsistent and part dimensions drift. Hardened steel keeps its bore size far longer. The nozzle comes in six sizes from 0.2 mm to 1.0 mm (parts 101001 to 101006). Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot Hardened Steel Nozzle, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Why choose a hardened steel nozzle
Carbon fiber and glass fiber reinforced nylon, PC, PETG and other filled materials.
When you print filled materials regularly.
A bore that holds its size gives consistent line width and dimensional accuracy over many prints.
The same thread and geometry as the nozzle your printer shipped with.
Choose your size
| Size | Part number | Fits |
|---|---|---|
| 0.2 mm | 101001 | All 14 printers listed below |
| 0.3 mm | 101002 | D Series HS (all five models), D600, D600 Pro, F430, F1000, PEEK-300 |
| 0.4 mm | 101003 | All 14 printers listed below |
| 0.6 mm | 101004 | All 14 printers listed below |
| 0.8 mm | 101005 | All 14 printers listed below |
| 1.0 mm | 101006 | All 14 printers listed below |
Compatible CreatBot 3D printers
The 0.3 mm size (101002) is not listed for the D600 Pro2, D1000, D800 Ultra or D1200 Ultra. Every other size fits all 14 printers.
Picking a size for filled filaments
Fiber filled filaments flow best through a wider bore, so 0.6 mm and 0.8 mm are popular choices for carbon fiber nylon and glass fiber PC. They also reduce the chance of fibers bridging and clogging the tip. 0.4 mm is the all-round size when you need more detail. Keep 0.2 and 0.3 mm for unfilled materials or very fine features, since small bores clog more easily with fibers. 1.0 mm suits large structural parts where print speed comes first.
Installation tips
Change nozzles with the hotend at printing temperature so the threads release cleanly, and support the heating block with a wrench while you turn the nozzle. Tighten the new nozzle hot, update the nozzle size in your slicer, then run a short test print. Hardened steel conducts heat a little less readily than brass, so a small increase in print temperature can help on fast prints.
CreatBot Hardened Steel Nozzle Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot Hardened Steel Nozzle — Questions
Which nozzle size do I need?
0.4 mm covers most work. Choose 0.6 or 0.8 mm for heavily filled filaments, and check the table if you want 0.3 mm.
Can I print PLA and PETG with a hardened steel nozzle?
Yes. Hardened steel prints standard materials well, and many users leave it installed full time.
Is there a brass version?
Yes. CreatBot brass nozzles cover 0.2 to 1.0 mm as parts 101007 to 101013, for unfilled filaments.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
