CreatBotF430 Z MotorGenuine CreatBot Replacement Part

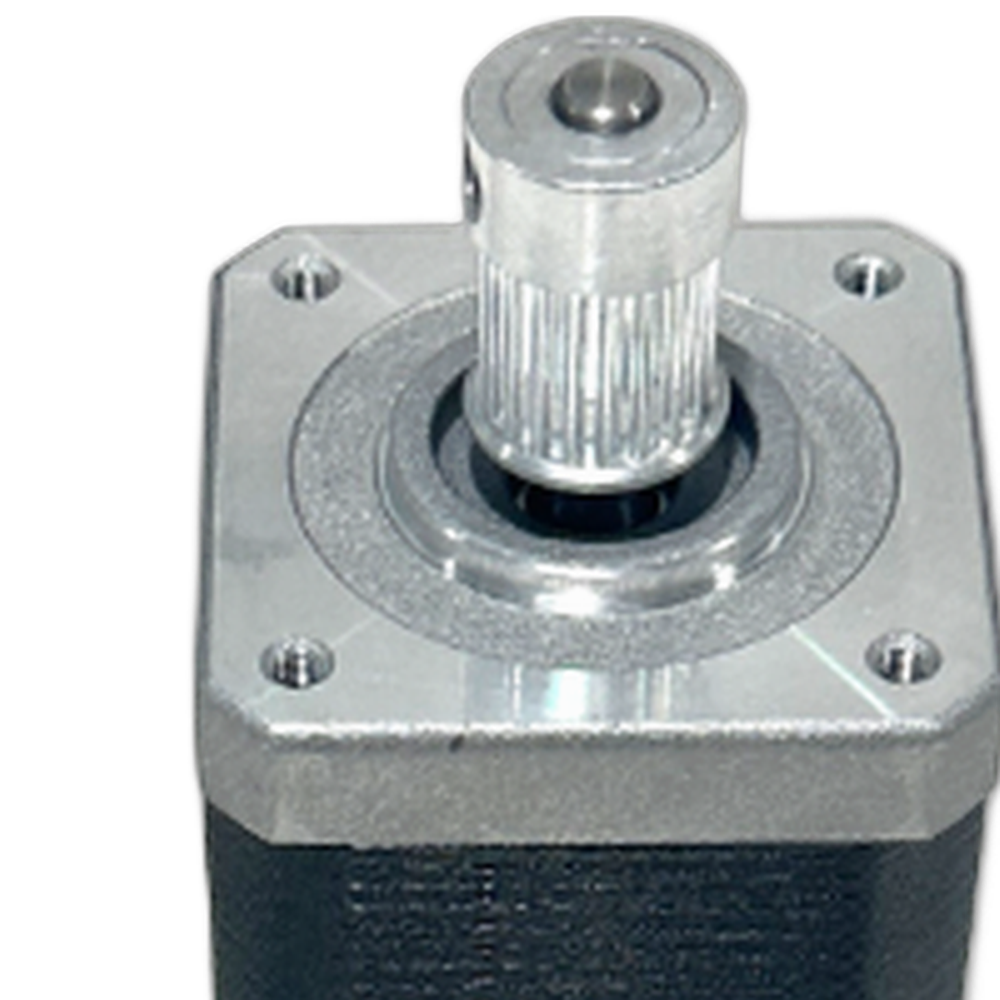

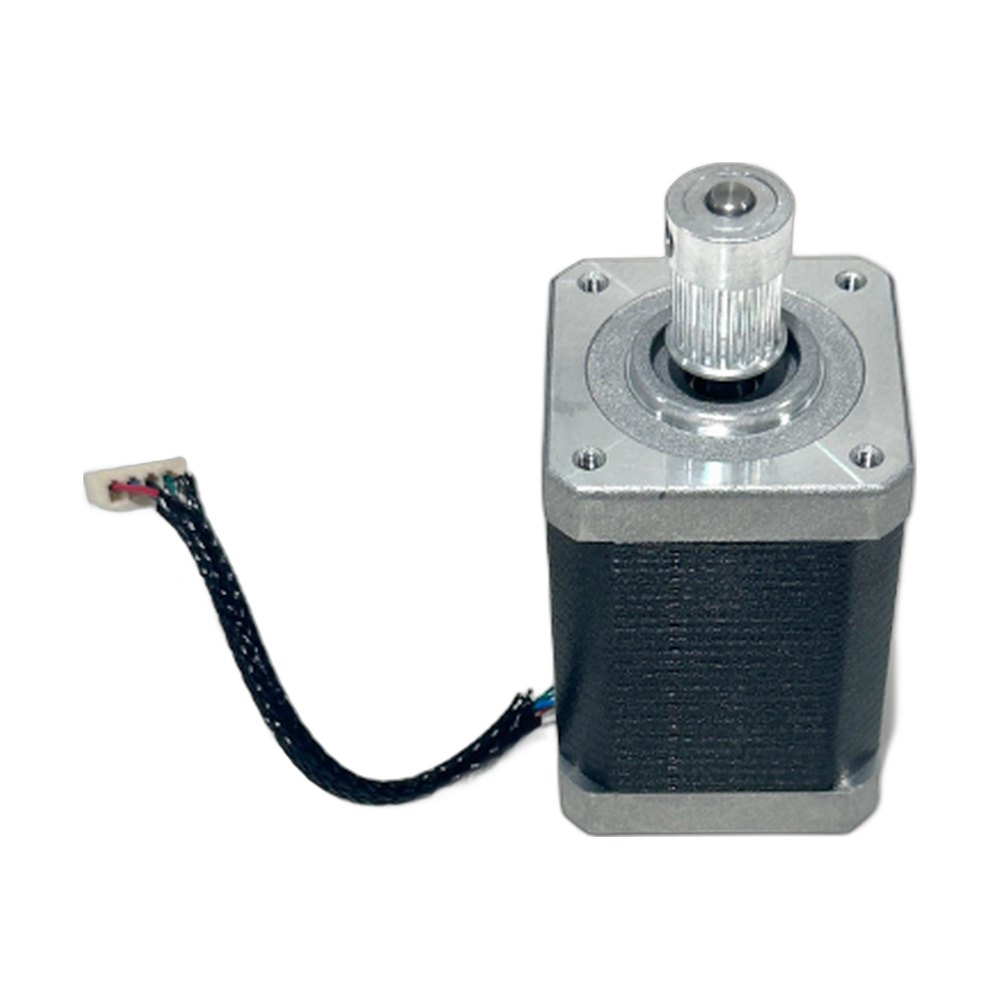

F430 Z Motor (Z-Axis Motor)
The CreatBot F430 Z motor (part 131020) is the OEM Z-axis motor for the CreatBot F430. It moves the Z axis by one layer height after each layer and holds it steady while the layer prints. Consistent Z movement gives you even layer lines, strong layer bonding and parts that come out at the right height. A Z motor that sticks or skips produces banding, weak layers and parts that are too short. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot F430 Z Motor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the Z motor needs replacing
The Z axis does not move, or moves unevenly, when jogged.
Banding or uneven layer lines that were not there before.
Finished parts measure short or tall in Z.
Grinding or knocking from the Z drive during homing.
Binding in the Z mechanism, a loose coupling or a cable fault can cause the same symptoms. Rev1 support can help you check the axis before you replace the motor.
Compatible CreatBot 3D printer
The F430 NX uses its own Z motor, part 131010, and the F1000 uses part 131032. The other F430 motors are X motor 131018, Y motor 131019 and extruder motors 131016 and 131017.
Installation tips
Power the printer off and unplug it. Support the Z assembly before you release the motor so nothing can drop. Photograph the cable routing and the connector. Fit the new motor in the same position and orientation and make sure it is fully seated. Run the axis through its full travel to check for smooth motion, then home the printer, re-level the bed and print a first layer test followed by a tall calibration part.
CreatBot F430 Z Motor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot F430 Z Motor — Questions
Is the F430 Z motor the same as the F430 NX Z motor?
No. The F430 NX uses part 131010.
What else should I check if my F430 shows banding?
Clean and lubricate the Z guides and check the coupling for play. If banding continues, the motor is a likely cause.
Is this a genuine CreatBot part?
Yes. It is part 131020, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified CreatBot service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
