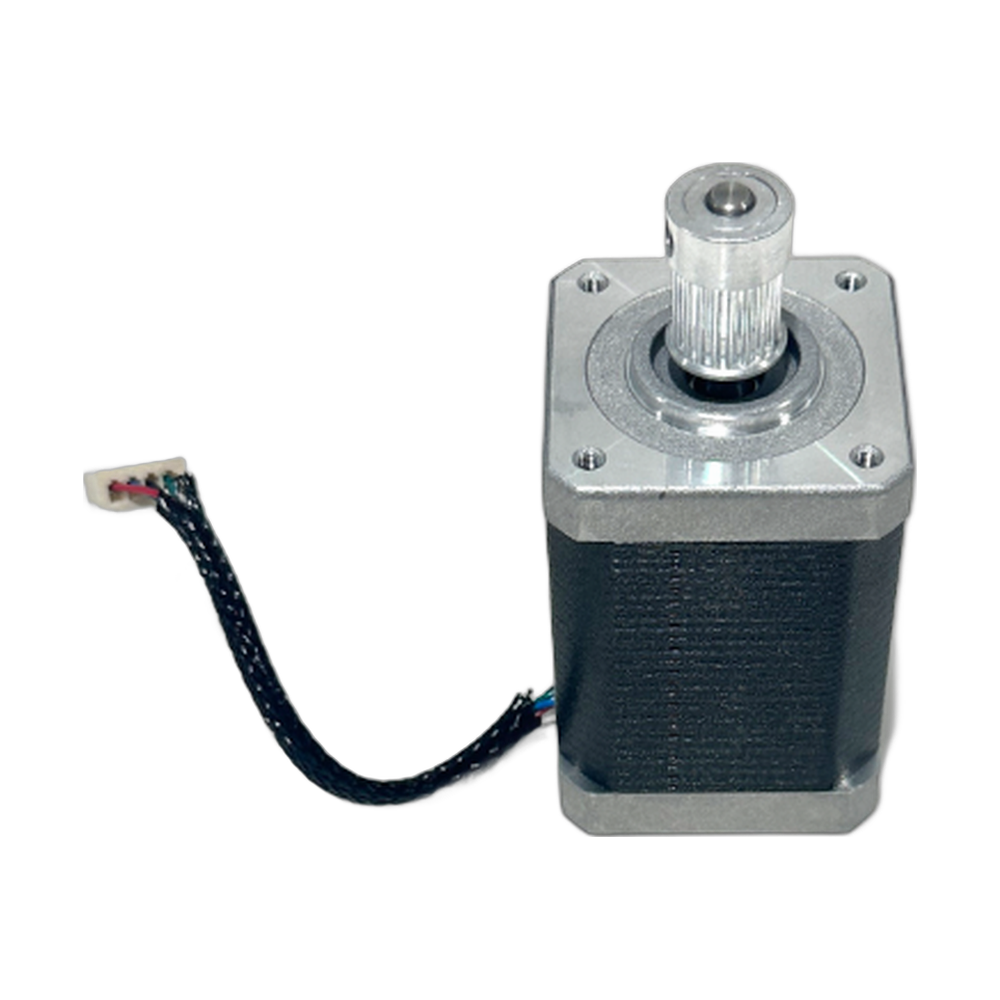

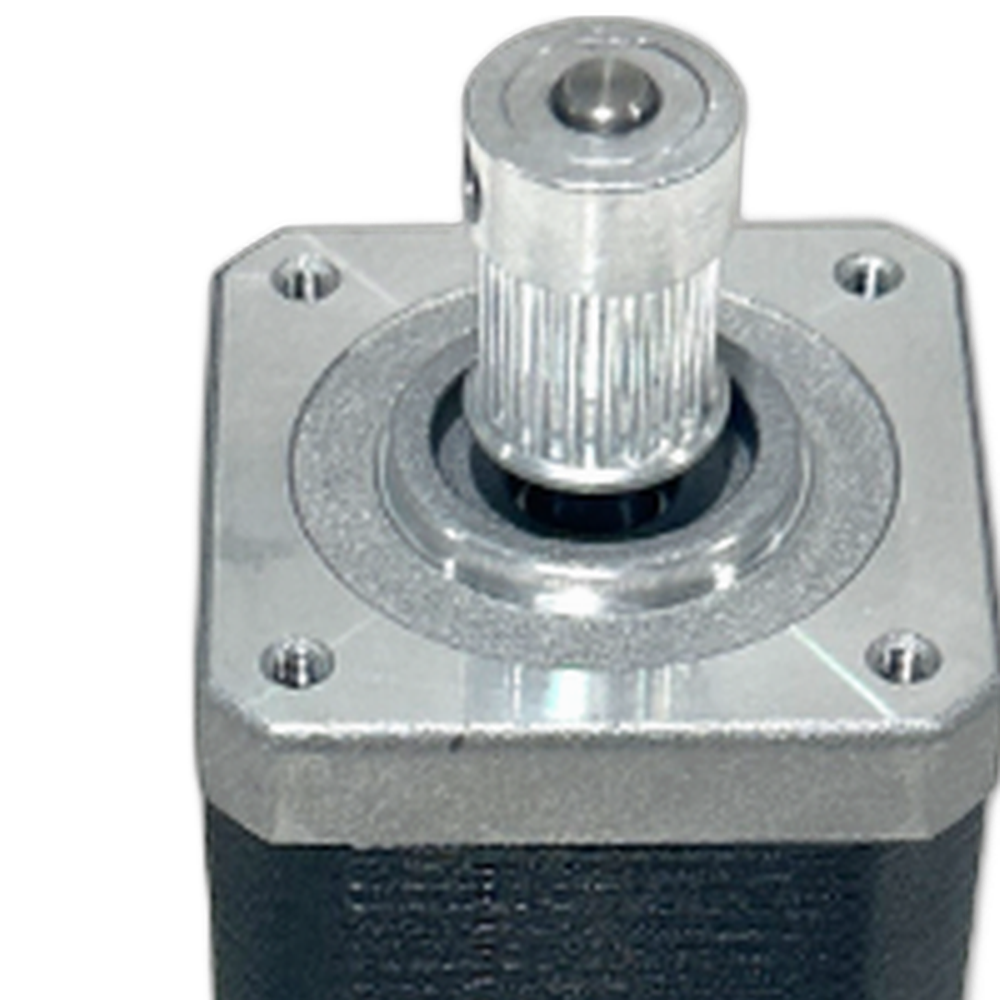

CreatBotF430 Y MotorGenuine CreatBot Replacement Part
F430 Y Motor (Y-Axis Motor)
The CreatBot F430 Y motor (part 131019) is the original Y-axis motor for the CreatBot F430. It drives front to back motion and works with the X motor to trace every path in every layer. A healthy Y motor is the difference between a part that matches its CAD model and one with a step in its side where the axis lost position. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot F430 Y Motor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Why replace with the genuine CreatBot motor
Mounts in the original position and connects to the original cable.
So the stock firmware settings remain correct.
For functional and tight tolerance parts.
Signs the Y motor is failing
Front to back layer shifts during printing.
The Y axis does not home, or stalls partway through a move.
Grinding, clicking or a high pitched whine from the Y motor.
Belts, pulleys and cables cause many Y axis faults too. Check them first, or contact Rev1 support for help confirming the motor is at fault.
Compatible CreatBot 3D printer
The other F430 motors are the X motor 131018, the Z motor 131020 and the extruder motors 131016 and 131017. The F430 NX uses Y motor 131009.
Installation tips
Switch off and unplug the printer. Photograph the wiring, then mark the pulley position on the shaft. Release belt tension and remove the old motor. Fit the new motor in the same orientation, set the pulley in the same position so the belt runs true, and re-tension. Move the axis by hand, home the printer and print a calibration part to confirm Y dimensions.
CreatBot F430 Y Motor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot F430 Y Motor — Questions
Does it fit the F430 NX?
No. The F430 NX uses Y motor 131009.
Are the F430 X and Y motors the same part?
They are listed as separate parts: X is 131018 and Y is 131019. Order the part for the axis you are repairing.
Can Rev1 replace it for me?
Yes. Rev1 is a certified CreatBot service provider and can fit and test the motor.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
