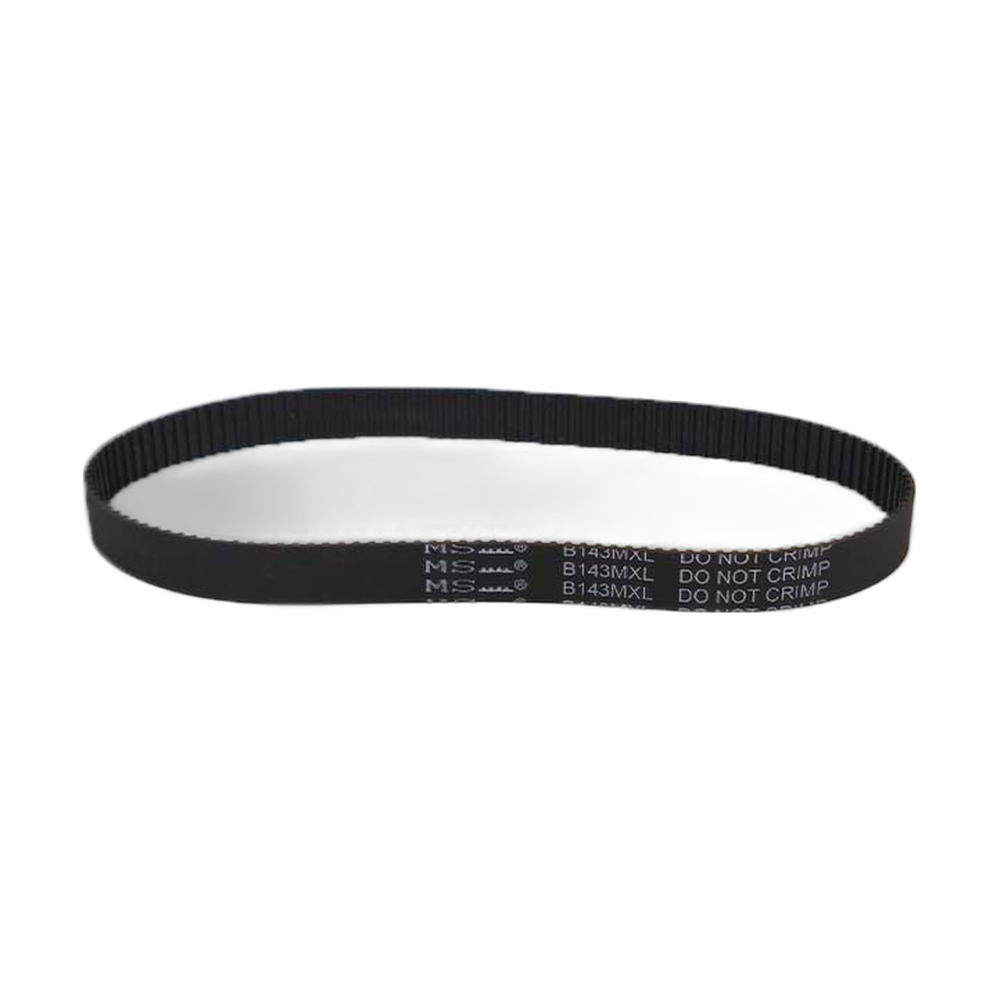

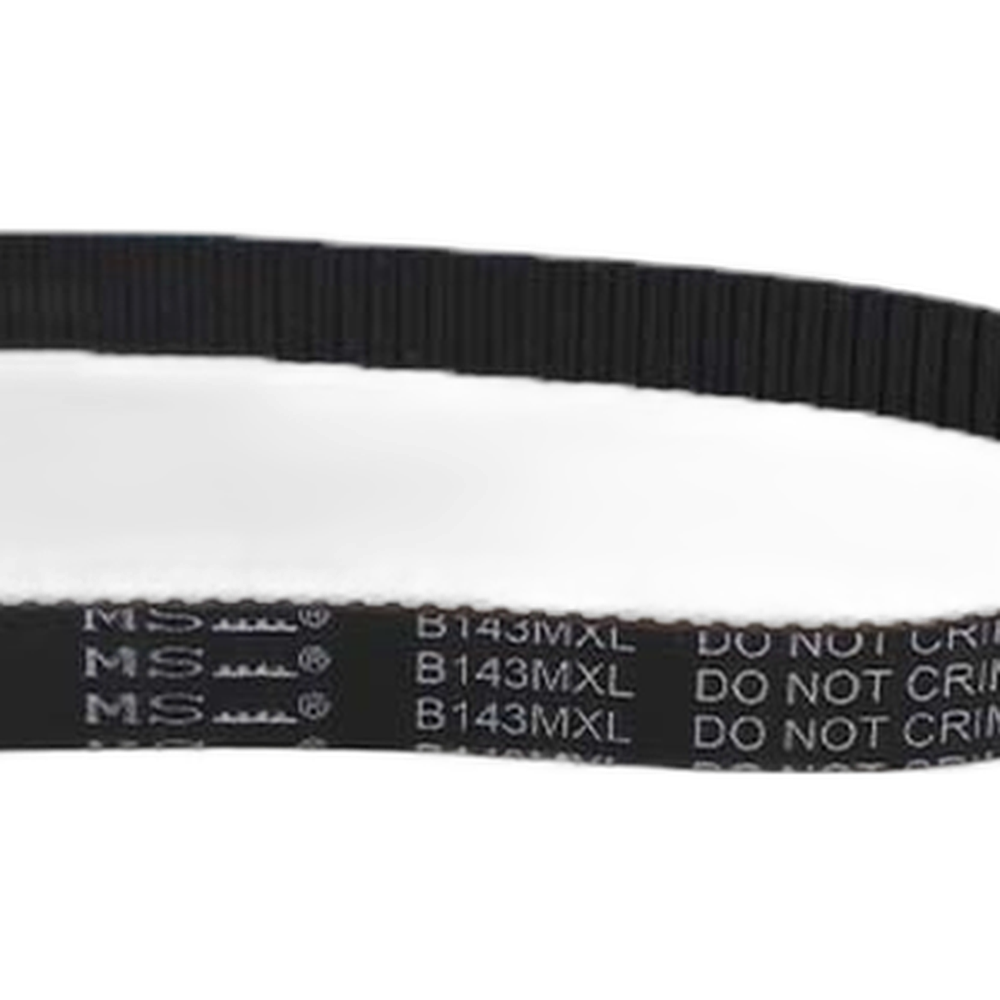

CreatBotF430 Y Axis Reduction BeltGenuine CreatBot Replacement Part
For the CreatBot F430
The CreatBot F430 Y-axis reduction belt (part 141005) is the OEM belt for the reduction stage of the Y axis drive on the CreatBot F430. In a belt reduction, a short belt links the motor to a larger pulley before motion reaches the main axis belt. The reduction gives the motor more leverage over the axis and finer control of each step. Because every Y move passes through it, a worn reduction belt affects accuracy just as much as a worn main belt. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot F430 Y Axis Reduction Belt, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the reduction belt needs replacing
Cracking, fraying or damaged teeth on the short belt near the Y motor.
Layer shifts in the Y direction, even though the main Y belt looks good.
A ticking or skipping sound from the Y drive during fast moves.
Slack in the reduction stage that cannot be taken up with adjustment.
Why the reduction belt matters
Small belts on a reduction stage wrap tightly around small pulleys and carry the full drive load, so they can wear before the main belt does. If you have replaced the main Y belt and still see Y problems, the reduction belt is a good next place to look.
Compatible CreatBot 3D printer
The main F430 Y axis belt is a separate part, 141001. The F430 X axis uses part 141002.
Installation tips
Power off and unplug the printer. Photograph the reduction stage, including the motor pulley, the larger driven pulley and how the motor mount adjusts. Loosen the motor mount or tensioner to release the belt, fit the new belt over both pulleys and restore firm tension. Turn the drive by hand to check that it runs smoothly, then home the printer and print a test part to confirm the Y axis is accurate.
CreatBot F430 Y Axis Reduction Belt Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot F430 Y Axis Reduction Belt — Questions
Is this the main Y axis belt?
No. The main Y axis belt for the F430 is part 141001. This is the shorter reduction belt.
Do I need to replace both Y belts?
Only if both show wear. Inspect them together and replace whichever is damaged.
Is this a genuine CreatBot belt?
Yes, part 141005, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
