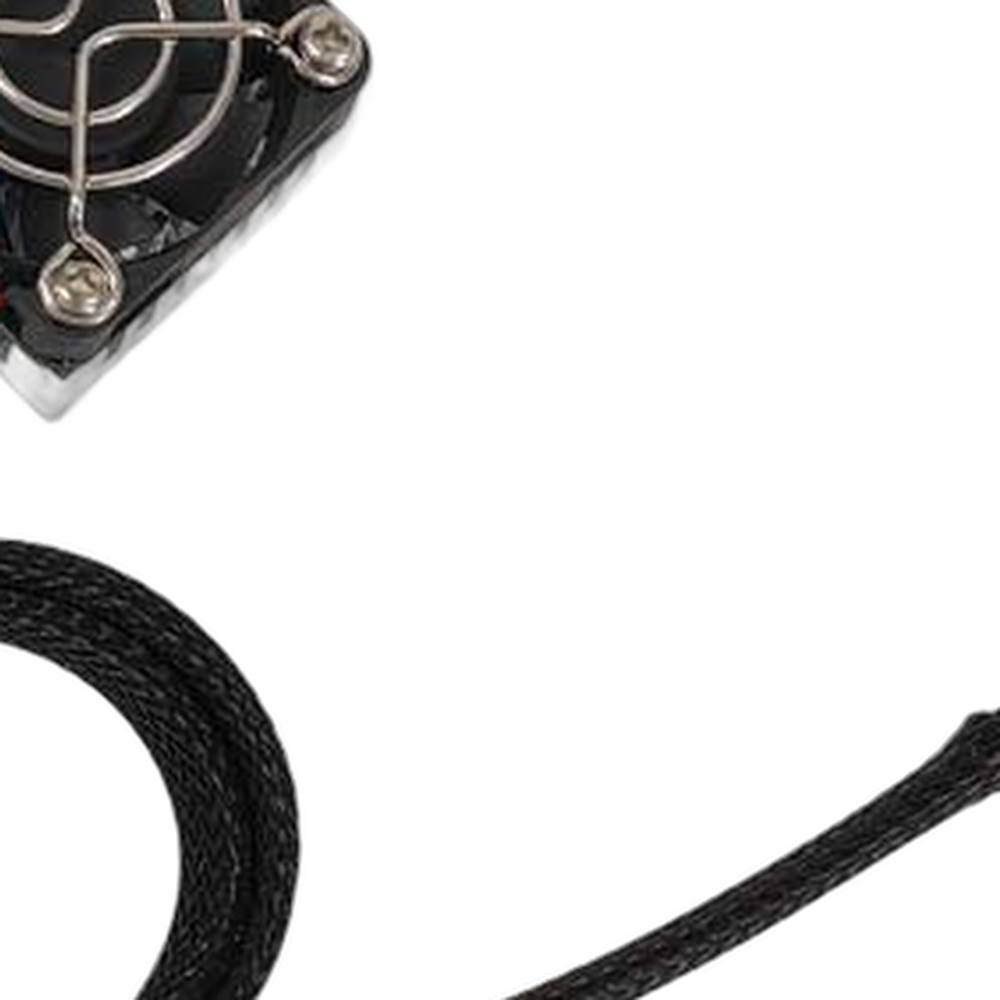

CreatBotF430 X Motor CableGenuine CreatBot Replacement Part
For the CreatBot F430
The CreatBot F430 X motor cable (part 160017) is the OEM cable that connects the X axis stepper motor on the CreatBot F430 to the printer's controller. A stepper motor needs all of its coil connections intact to move in precise steps. If one wire breaks or a pin loosens, the motor loses torque, vibrates in place or moves erratically, and the result is layer shifts or a stalled X axis. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot F430 X Motor Cable, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the X motor cable needs replacing
Layer shifts along the X axis that are not caused by a loose belt or pulley.
The X motor hums or vibrates but does not move, or moves in only one direction.
X axis homing fails or stops partway.
Damaged insulation, a pinched section or a loose plug at the motor.
Check the belt tension and pulley grub screws first, since they cause many X axis shifts. If the mechanics are sound and the motor still misbehaves, the cable is a likely cause.
Compatible CreatBot 3D printer
The D600 Pro has its own X motor cable, part 160018. The F430 extruder cable (160005) and FFC cable (160003) are separate parts.
Installation tips
Always power the printer off before you unplug or plug in a motor cable. Disconnecting a stepper motor while the driver is powered can damage the driver. Note the cable's route and the clips that hold it, swap the cable, and make sure both connectors are fully seated. Home the printer and jog the X axis in both directions to confirm smooth movement.
CreatBot F430 X Motor Cable Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot F430 X Motor Cable — Questions
Will this fit the D600 Pro?
No. The D600 Pro uses part 160018.
Could the motor be the problem instead?
It can be. Swapping the cable is often the quicker first step. Rev1 support can help you test both.
Is this a genuine CreatBot part?
Yes. It is CreatBot part 160017, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified CreatBot service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
