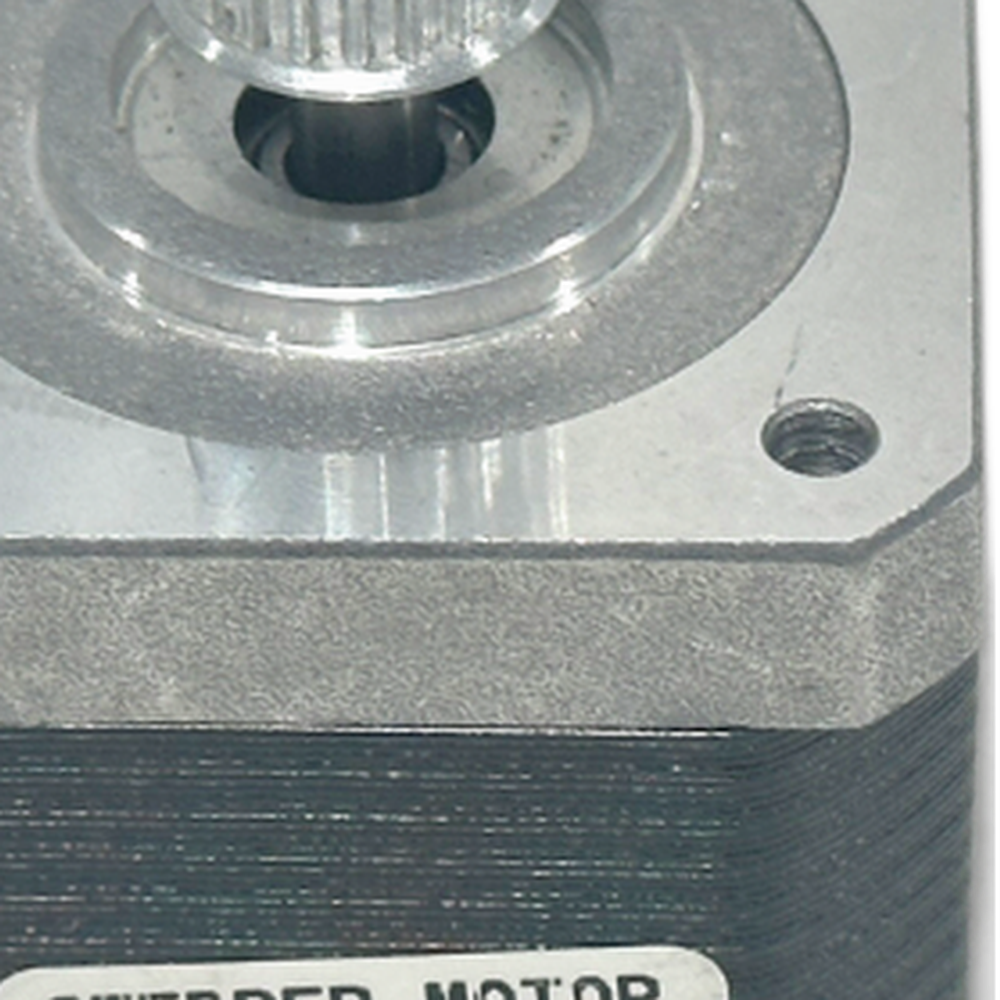

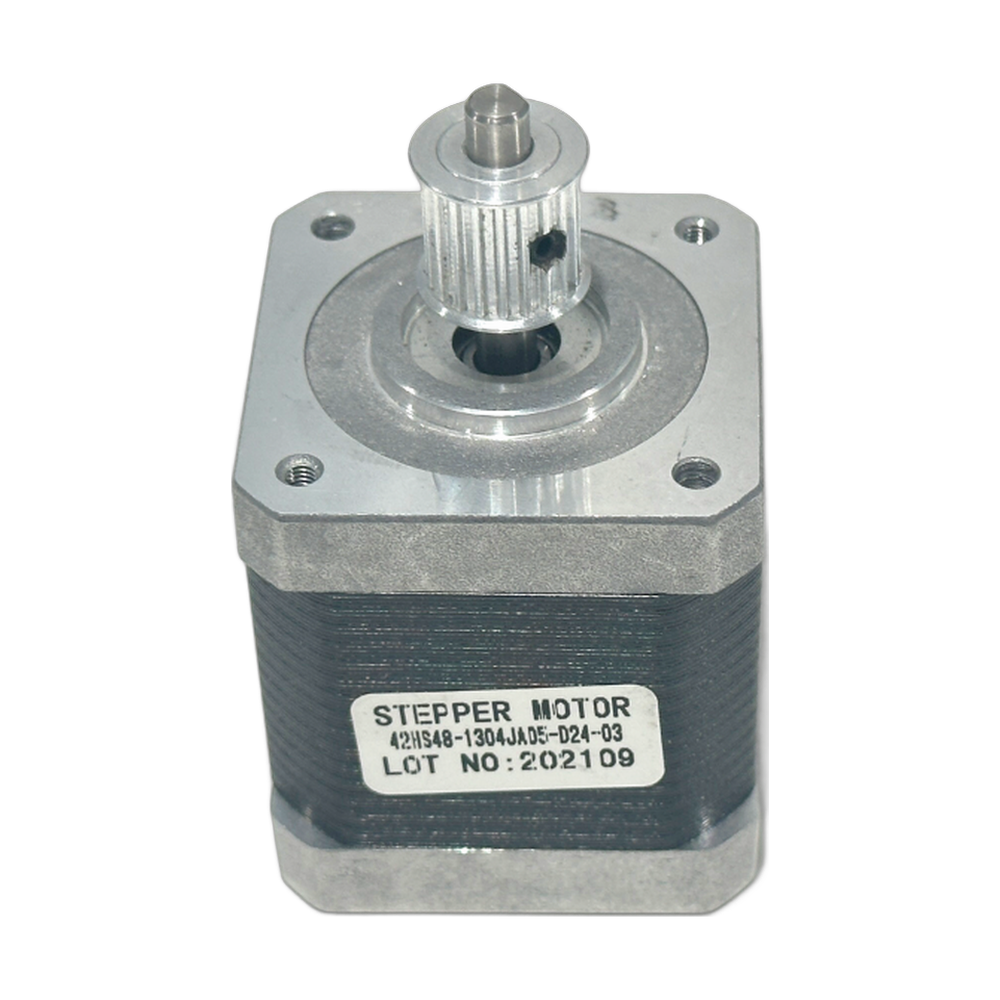

CreatBotF430 X MotorGenuine CreatBot Replacement Part
F430 X Motor (X-Axis Motor)
The CreatBot F430 X motor (part 131018) is the OEM X-axis motor for the CreatBot F430. It drives motion along the X axis, placing each extrusion line where the slicer intended. Engineering parts printed on the F430 are often functional parts with tight fits, so an X motor that skips even occasionally can turn a good part into scrap through a single layer shift. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot F430 X Motor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the X motor needs replacing
Layers shift along the X axis, especially during fast moves.
The X axis does not home, or homes with a grinding sound.
The motor buzzes or vibrates but the axis barely moves.
Dimensions along X drift from print to print.
Loose belts, a slipping pulley, a snagged cable or a driver fault can cause the same layer shifts. Check the mechanics first, or contact Rev1 support for help.
Compatible CreatBot 3D printer
The other F430 motors are the Y motor 131019, the Z motor 131020 and the extruder motors 131016 (E1) and 131017 (E2). The F430 NX uses a different X arrangement with left and right X motors, parts 131007 and 131008.
Installation tips
Turn the printer off and unplug it. Photograph the wiring and mark the pulley position on the old motor shaft. Release belt tension, remove the old motor and fit the new one in the same orientation. Set the pulley at the same height so the belt runs straight and does not rub, then re-tension the belt. Move the print head by hand to confirm smooth travel, home the printer and print a calibration part to check X accuracy.
CreatBot F430 X Motor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot F430 X Motor — Questions
Does the F430 X motor fit the F430 NX?
No. The F430 NX uses left and right X motors, parts 131007 and 131008.
Can a weak X motor cause layer shifts only on large prints?
Yes, it can, because long fast moves put more load on the axis. Belt tension and pulley grip are also worth checking.
Is this a genuine CreatBot part?
Yes. It is part 131018, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified CreatBot service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
