CreatBotF430 Temperature SensorGenuine CreatBot Replacement Part
F430 Hotend Temperature Sensor for F430 and PEEK-300 3D Printers

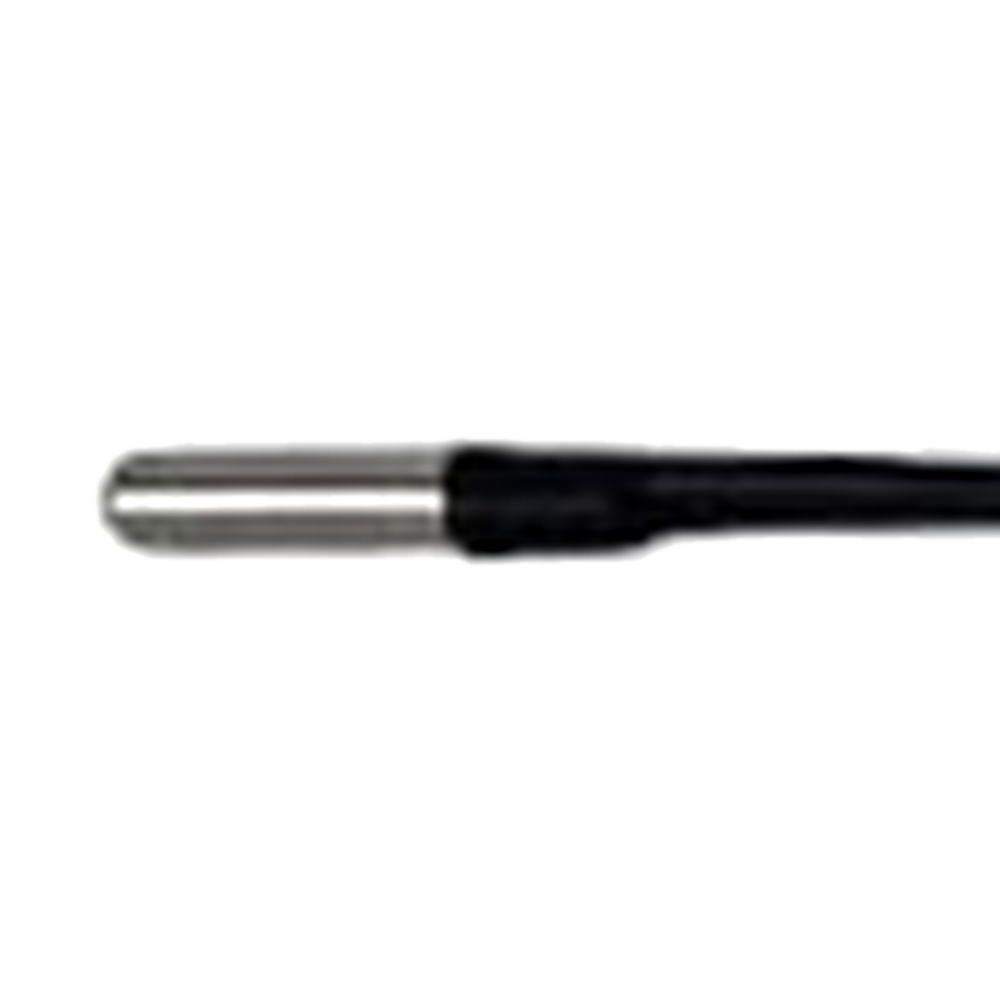

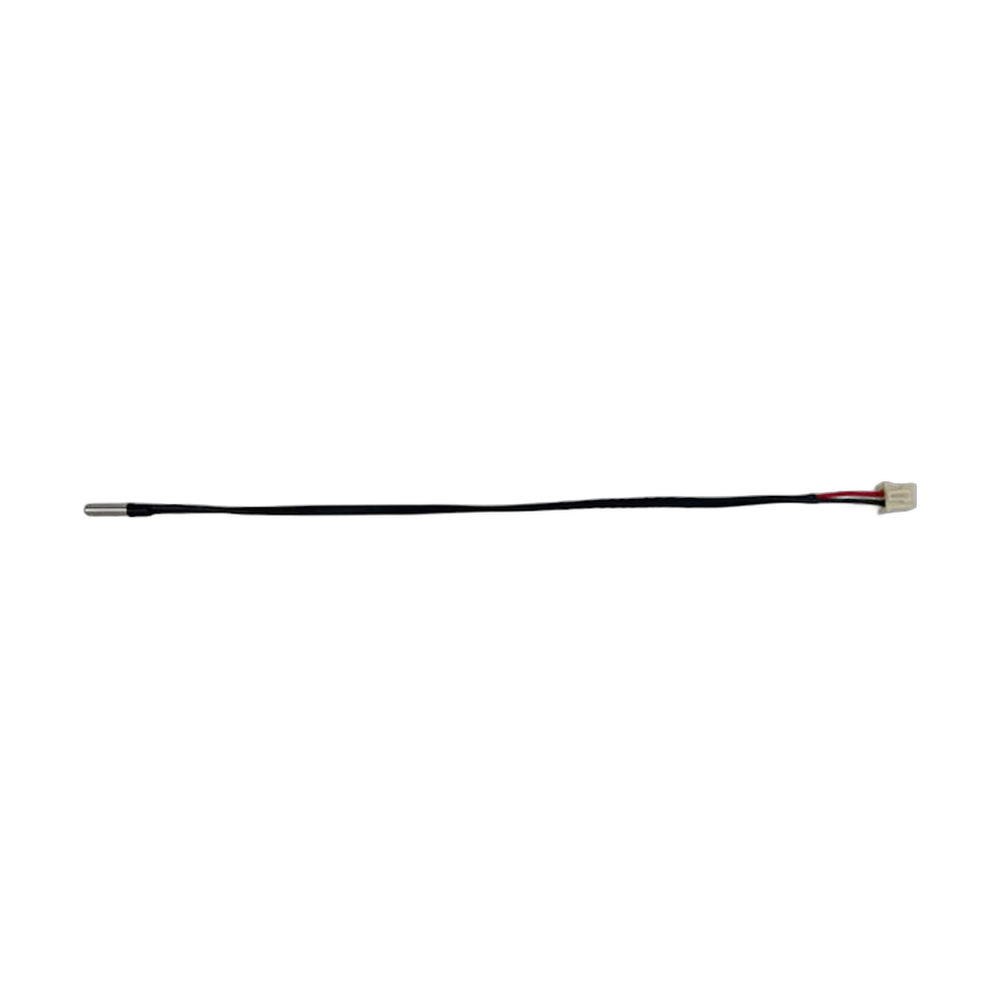

The CreatBot F430 temperature sensor (part 106007) is the OEM hotend temperature sensor for the CreatBot F430, and it is also listed for the PEEK-300. The sensor sits in the heating block and reports the hotend temperature to the motherboard, which uses that reading to control the heating tube. Every temperature you set on the touchscreen depends on this reading, so a faulty sensor affects print quality and can stop the printer with a safety error. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot F430 Temperature Sensor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the temperature sensor needs replacing
The displayed hotend temperature jumps, drifts or shows an impossible value.
The printer reports a sensor error, or stops with a thermal runaway error mid print.
The hotend overheats or underheats while the display says it is on target.
Broken, pinched or brittle sensor wires near the heating block.
A failing heating tube or a loose connector can produce similar symptoms. Contact Rev1 support and we will help you confirm the fault before you order.
Compatible CreatBot 3D printers
CreatBot also lists the PEEK300 Temperature sensor (106009) for the F430 and PEEK-300, and the PEEK300 DAS Temperature sensor (106013) for the PEEK-300. Match the part number on your existing sensor, or ask Rev1, to be sure. The F430 NX uses 106003 or 106004, and the F1000 uses 106010.
Installation tips
Turn the printer off, unplug it and let the hotend cool completely. Note the sensor's wire routing and connector, then loosen the retaining screw and ease the old sensor out of the heating block without pulling on the wires. Insert the new sensor fully, secure it gently, and route the wires clear of the moving carriage. After power-up, confirm the hotend reads close to room temperature before heating, then heat it and watch for a smooth, steady rise.
CreatBot F430 Temperature Sensor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot F430 Temperature Sensor — Questions
How is this different from part 106009?
Both are listed for the F430 and PEEK-300. Match the part number on the sensor you are replacing, or contact Rev1 support and we will confirm the right one.
Should I replace the heating tube at the same time?
Only if it is also faulty. Many users keep a spare sensor and heating tube on hand to avoid downtime.
Is this a genuine CreatBot part?
Yes. It is CreatBot part 106007, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
