CreatBotF430 Removable Magnetic SheetGenuine CreatBot Replacement Part
For the CreatBot F430

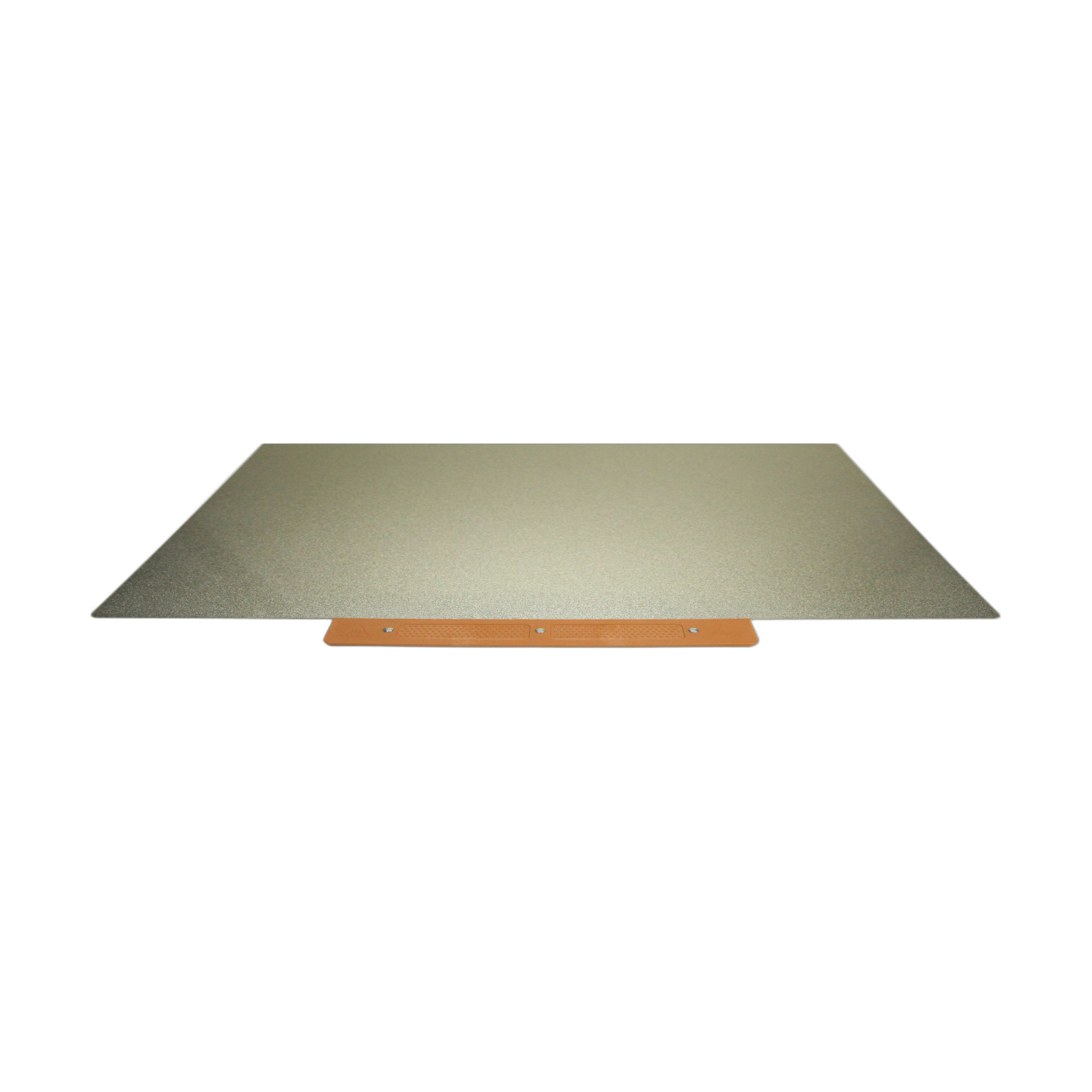

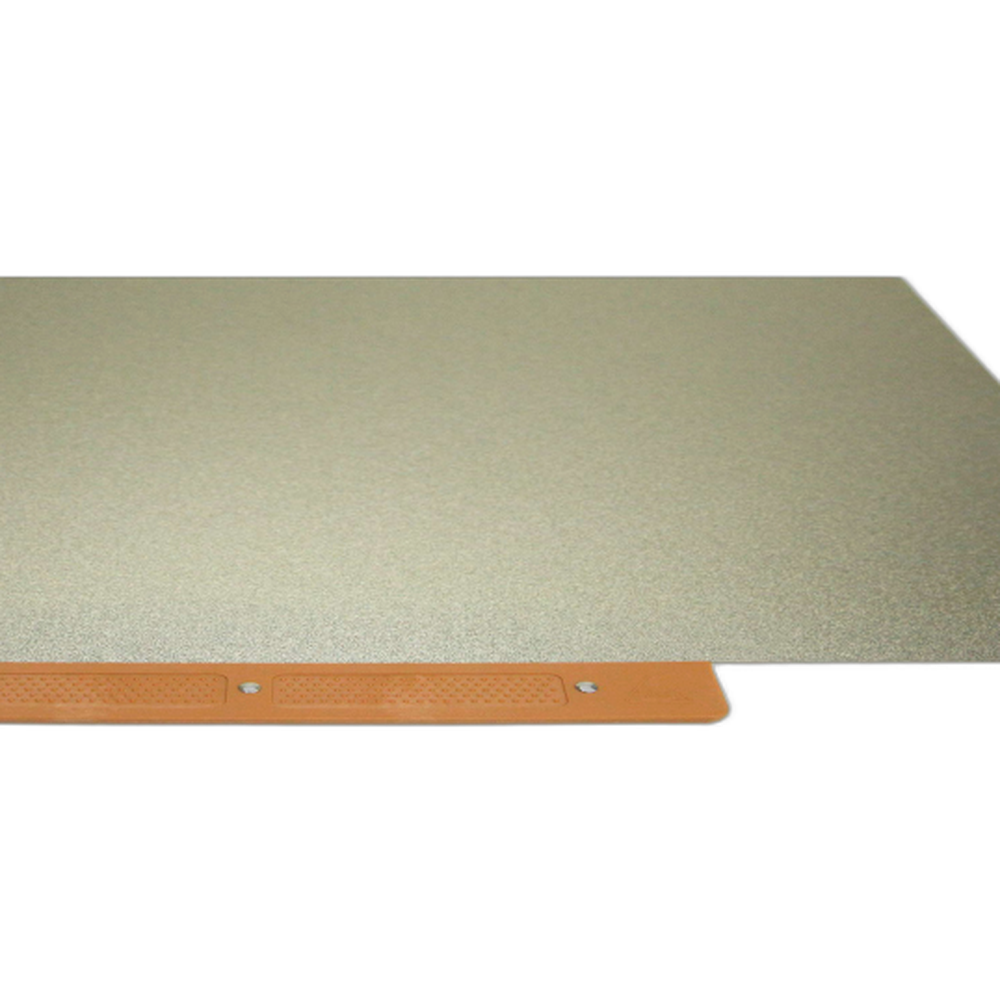

The CreatBot F430 removable magnetic sheet (part 107010) is the OEM removable build sheet for the CreatBot F430 3D printer. The sheet stays put magnetically during printing, then lifts off the bed once the print has cooled. Bend it gently and parts release, which avoids the scraping and prying that wear out fixed surfaces and can damage parts. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot F430 Removable Magnetic Sheet, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
What a removable sheet does for you
Flexing releases parts that would otherwise need a blade.
Remove parts and support material away from the printer.
Swap in a second sheet and start the next job straight away.
Sized for the F430 bed.
Compatible CreatBot 3D printer
This sheet is listed for the F430. The F430 NX uses removable magnetic sheet 107005.
When to replace the sheet
Sheets wear out through use. Replace yours when it has a bend or crease that keeps it from lying flat, when the surface is scratched or worn smooth in the areas you print most, or when adhesion stays poor after cleaning with isopropyl alcohol. A kinked sheet often shows as a stripe of thin or squashed first layer at the same spot on every print. If you are weighing up other F430 surfaces, CreatBot also makes F430 PEI film (107007), BuildTak (107008) and a carbon fiber plate (107009).
Installation tips
Wait for the bed to cool. Lift off the old sheet and wipe the bed clean so no debris is trapped underneath. Lay the new sheet down aligned with the bed edges and check that it sits flat everywhere. Run bed leveling, set the Z offset and print a first layer test.
CreatBot F430 Removable Magnetic Sheet Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot F430 Removable Magnetic Sheet — Questions
Does it fit the F430 NX?
No. The F430 NX uses part 107005.
How do I avoid damaging the sheet?
Remove it only when cool, flex it in a smooth curve and never fold it.
Is this a genuine CreatBot part?
Yes, CreatBot part 107010, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
