CreatBotF430 NX Z MotorGenuine CreatBot Replacement Part

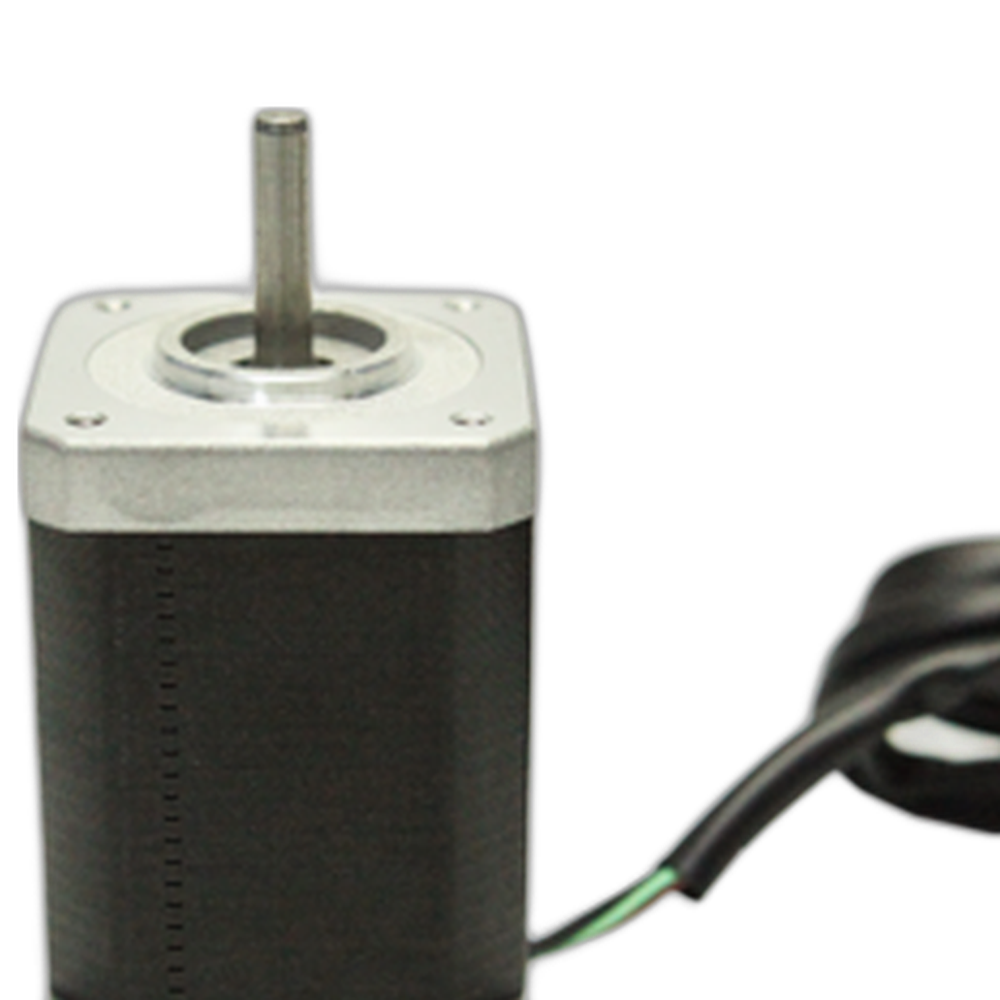

F430 NX Z Motor (Z-Axis Motor)
The CreatBot F430 NX Z motor (part 131010) is the OEM Z-axis motor for the CreatBot F430 NX. It moves the Z axis one layer height at a time and sets the gap between nozzle and bed for the first layer. Engineering materials need a precise, repeatable first layer to stay attached to the bed, so a Z motor that has started to miss steps often shows up first as adhesion problems and only later as visible layer defects. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot F430 NX Z Motor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the Z motor needs replacing
The first layer is too close or too far from the bed from one print to the next.
Layers compress, separate or shift in height on taller prints.
The Z axis does not home, or stalls when jogged.
Grinding, knocking or rough sound from the Z drive.
Binding in the Z mechanism, a loose coupling, a damaged cable or a driver fault can produce the same signs. Rev1 support can help you track down the cause.
Compatible CreatBot 3D printer
This Z motor is for the F430 NX. The original F430 uses Z motor 131020. The other F430 NX motors are X motors 131007 and 131008, Y motor 131009 and extruder motors 131011 and 131012.
Installation tips
Power off and unplug the printer. Support the Z assembly so it cannot drop when the motor is released. Photograph the cable route and connector, then fit the new motor in the same position and orientation. Move the axis over its full travel to check that it runs smoothly, then home, run bed leveling and print a first layer test before returning to engineering materials.
CreatBot F430 NX Z Motor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot F430 NX Z Motor — Questions
Will it fit the original F430?
No. The F430 uses Z motor 131020.
Do I need to re-level after the swap?
Yes. Re-level and check the first layer after any Z axis work.
Can Rev1 replace it for me?
Yes. Rev1 is a certified CreatBot service provider and can diagnose the Z axis, fit the genuine motor and test the printer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
