CreatBotF430 NX Y MotorGenuine CreatBot Replacement Part

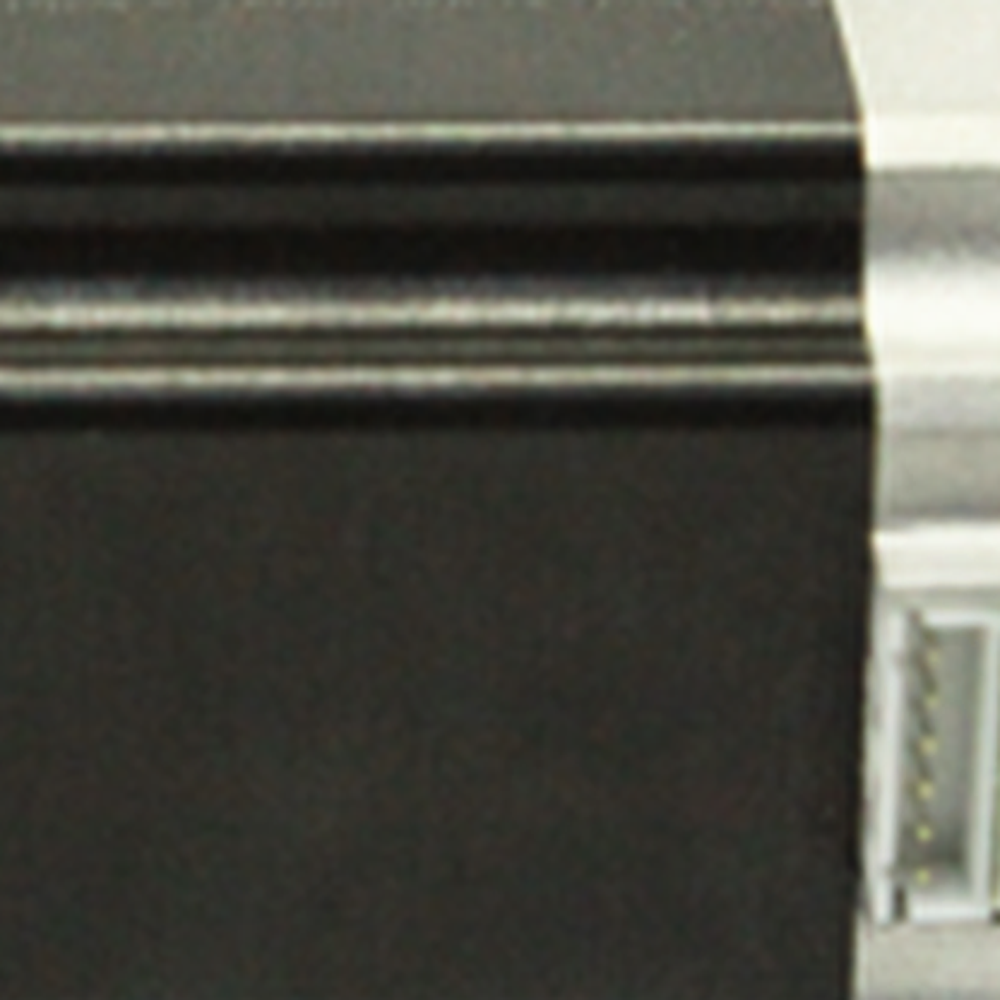

F430 NX Y Motor (Y-Axis Motor)
The CreatBot F430 NX Y motor (part 131009) is the OEM Y-axis motor for the CreatBot F430 NX. It drives front to back motion, so together with the X motors it places every line of every layer. When a Y motor loses steps the print does not fail gracefully: the remaining layers continue from the wrong position, leaving a part that is shifted and usually unusable. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot F430 NX Y Motor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the Y motor needs replacing
Layers shift front to back partway through a print.
The Y axis does not home or stops partway through a move.
Clicking, grinding or unusual noise during fast Y moves.
Parts measure correctly in X but not in Y.
A loose or worn belt, a slipping pulley, an obstruction or a cable fault can give the same results. Rule those out first, or contact Rev1 support for help.
Compatible CreatBot 3D printer
The other F430 NX motors are the X motors 131007 (left) and 131008 (right), the Z motor 131010 and the extruder motors 131011 and 131012. The original F430 uses Y motor 131019.
Installation tips
Switch off and unplug the printer. Take photos of the wiring and mark where the pulley sits on the shaft. Release the belt tension, remove the old motor, and fit the new one in the same orientation with the pulley in the same position. Re-tension the belt evenly, push the axis by hand to confirm it runs freely, then home the printer and print a calibration part to check Y dimensions.
CreatBot F430 NX Y Motor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot F430 NX Y Motor — Questions
Does this fit the original F430?
No. The F430 uses part 131019 for the Y axis.
My prints shift in Y only at high speed. Is it the motor?
Possibly, but belt tension and pulley grip are common causes too. Check those first, then contact Rev1 support if the shifts continue.
Is this a genuine CreatBot part?
Yes. It is part 131009, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
