CreatBotF430 NX X/Z DriveGenuine CreatBot Replacement Part
F430 NX X/Z Drive (X and Z Axis Stepper Driver)

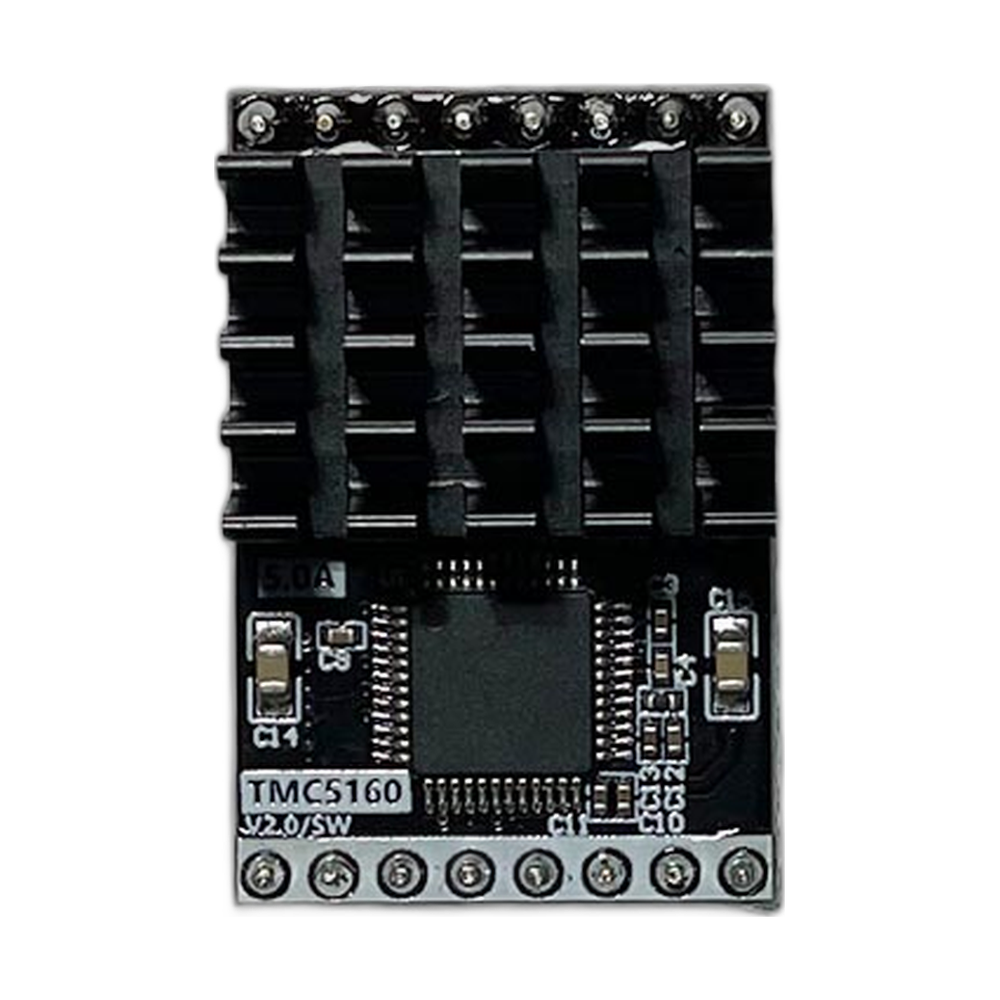

The CreatBot F430 NX X/Z drive (part 115007) is the OEM stepper motor driver CreatBot lists for the X and Z axes of the CreatBot F430 NX. The X axis moves the print head side to side, and the Z axis sets the height of each layer. In both cases the driver takes step and direction signals from the main control board and supplies the current that turns the motor. Accurate X and Z motion is what gives a part clean walls, even layers and the right dimensions. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot F430 NX X/Z Drive, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the X/Z drive may need replacing
Layer shifts along the X axis with belts and pulleys in good order.
Uneven layer lines or parts that finish at the wrong height.
The X or Z motor buzzes, stalls or will not home.
The motor runs normally when tested from a known good driver channel.
Belt tension, a binding lead screw, a loose coupler or a damaged cable can all cause similar symptoms. Check the mechanics first, and ask Rev1 support if the cause is not clear.
Compatible CreatBot 3D printer
The F430 NX uses separate driver parts for its other axes: the Y drive V2 (115009) and the E drive (115011).
Which driver position failed?
Since this part covers both X and Z, identify the failing axis first. With the printer powered off, move the suspect motor's cable to a known good channel and test again. If the fault stays at the driver position, replace that driver. If it follows the motor, the motor or its cable is the likely cause.
Installation tips
Switch the printer off and unplug it. Photograph the driver orientation before removal, fit the new module the same way round and reconnect the motor cable. Home all axes and run a test print.
CreatBot F430 NX X/Z Drive Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot F430 NX X/Z Drive — Questions
Does one part cover both the X and Z positions?
Yes. CreatBot lists part 115007 as the F430 NX X/Z drive.
Will it work for the Y axis?
The F430 NX Y axis has its own listed part, the Y drive V2, part 115009.
Is this a genuine CreatBot part?
Yes, CreatBot part 115007, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
