CreatBotF430 NX X Motor, LeftGenuine CreatBot Replacement Part
For the CreatBot F430 NX

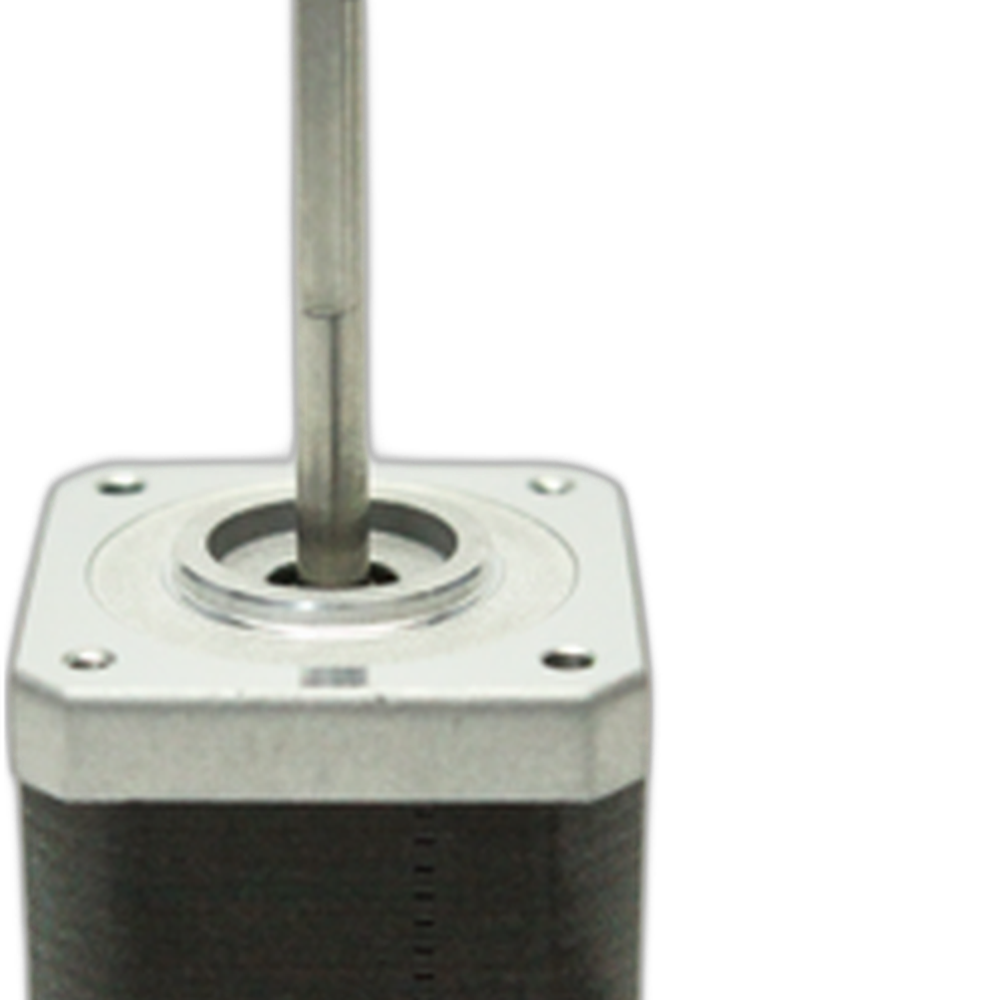

The CreatBot F430 NX X motor, left (part 131007) is the OEM left-side X-axis motor for the CreatBot F430 NX. The X motors drive motion along the X axis, so they decide how accurately each line is placed. A failing X motor shows up as layer shifts along X, rough or noisy travel moves, or an axis that will not home. The F430 NX uses two X motors, a left and a right, and this listing is the left one. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot F430 NX X Motor, Left, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the X motor needs replacing
Layers shift sideways along the X axis partway through a print.
The X axis will not home, or stops and stalls during travel.
Grinding, clicking or loud whining from the left X motor.
Holes and outer walls come out the wrong size or shape along X.
A loose belt, a slipping pulley, a damaged cable or a driver fault can cause similar shifts. Check belt tension and pulley set screws first, or ask Rev1 support to help you diagnose the axis.
Compatible CreatBot 3D printer
The right X motor for the F430 NX is part 131008. The other F430 NX motors are the Y motor 131009, the Z motor 131010 and the extruder motors 131011 (left) and 131012 (right). The original F430 uses a different X motor, part 131018.
Installation tips
Power the printer off and unplug it. Photograph the cable route and connector, and mark the pulley position on the old shaft before you remove it. Release belt tension, swap the motor, and refit the pulley in the same position so the belt runs straight. Re-tension the belt, move the axis by hand to check for smooth travel, then home the printer and print a small calibration part to confirm X dimensions.
CreatBot F430 NX X Motor, Left Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot F430 NX X Motor, Left — Questions
Is this the left or the right X motor?
This is the left X motor, part 131007. The right X motor is part 131008.
Will it fit the original F430?
No. The F430 uses X motor 131018.
Is this a genuine CreatBot part?
Yes. It is CreatBot part 131007, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified CreatBot service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
