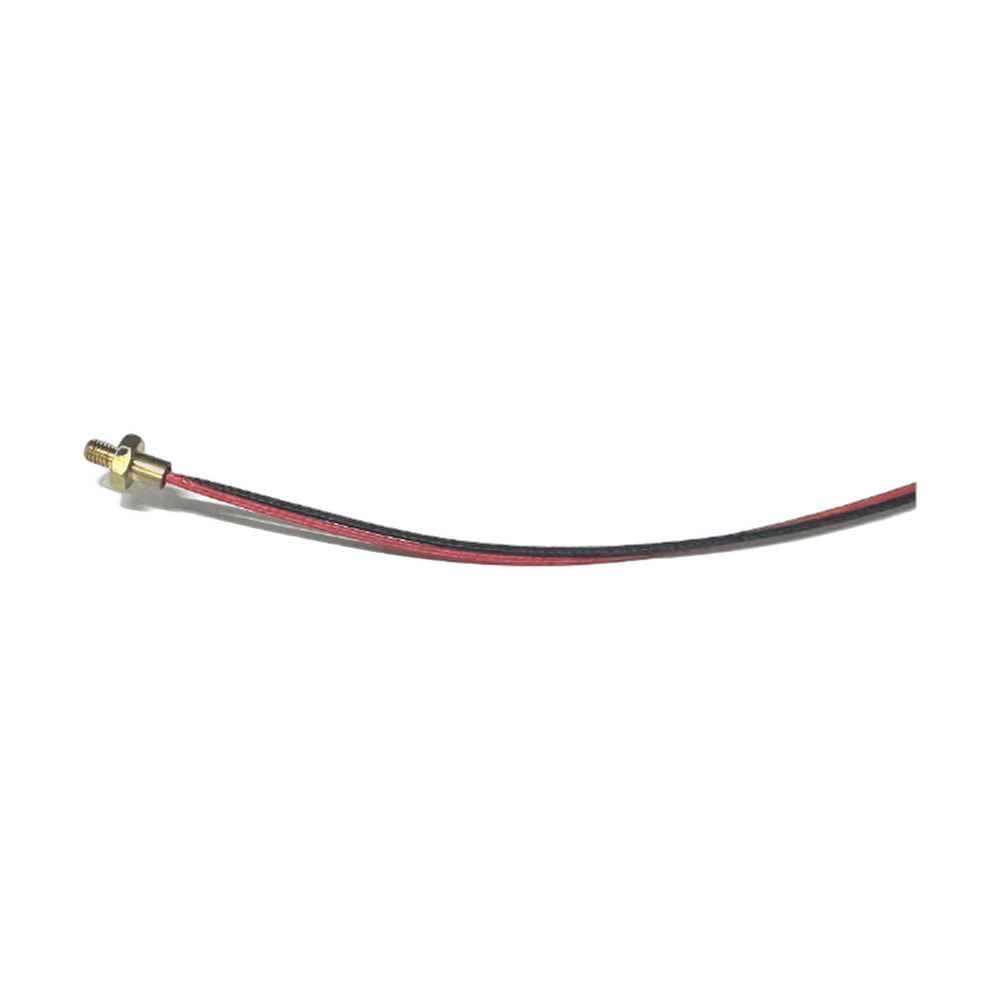

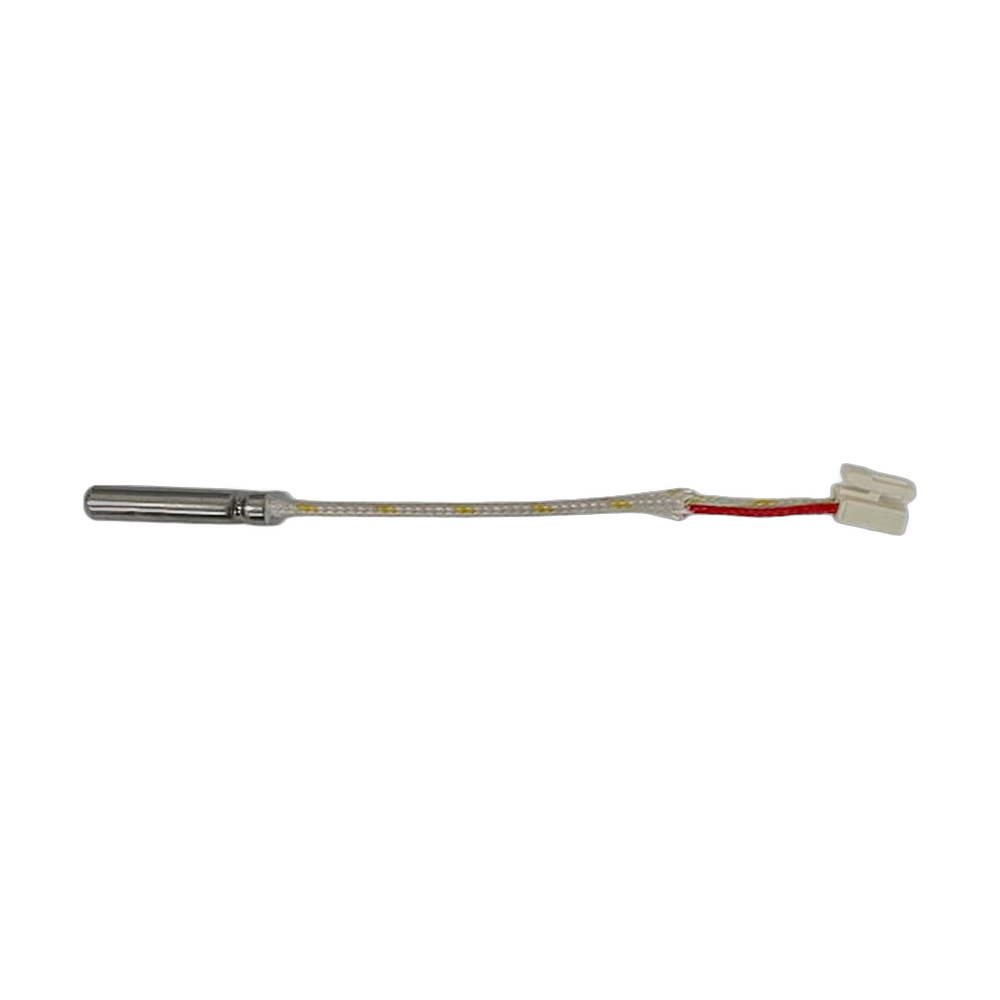

CreatBotF430 NX Temperature SensorGenuine CreatBot Replacement Part
F430 NX Hotend Temperature Sensor
The CreatBot F430 NX temperature sensor is the OEM sensor that measures hotend temperature on the CreatBot F430 NX 3D printer. It sits in the heating block next to the heating tube and reports the temperature to the controller, which adjusts heater power to hold the set point. Accurate readings matter on the F430 NX, which prints demanding engineering materials with narrow processing windows. CreatBot offers two versions: the original sensor (part 106003) and V2 (part 106004). Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot F430 NX Temperature Sensor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the temperature sensor needs replacing
The displayed hotend temperature jumps, drifts or reads far from what you expect.
The printer shows a sensor error, a minimum or maximum temperature error, or a heating failure.
Prints show inconsistent extrusion or surface quality that tracks with temperature swings.
The sensor leads are pinched, frayed or damaged near the heating block.
Loose connectors and damaged cables can cause the same symptoms, so inspect the wiring first. Rev1 support can help you confirm the fault.
Choose your version
| Version | Part number | Fits |
|---|---|---|
| Original | 106003 | F430 NX |
| V2 | 106004 | F430 NX |
Compatible CreatBot 3D printer
Both versions fit only the F430 NX. The original F430 uses a different sensor (106007), and the PEEK-250 has its own Original and V2 sensors (106005, 106006).
Matching the right version
The firmware reads the sensor according to the type it expects, so the replacement should match the version installed in your F430 NX. A mismatched sensor can give a reading that looks normal but is wrong, which puts prints and the hotend at risk. Check your service records or the installed part. If you are not sure, send Rev1 your serial number and a photo of the hotend, and we will tell you which version to order.
Installation tips
Power off, unplug the printer and let the hotend cool fully. Note the sensor's routing, loosen its retaining screw and remove it from the heating block. Fit the new sensor fully into its bore, secure it gently so the sensor body is not crushed, and connect it at the same connector. Heat the hotend and confirm the temperature rises smoothly and holds steady before printing.
CreatBot F430 NX Temperature Sensor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot F430 NX Temperature Sensor — Questions
Which version do I need?
The version that matches your F430 NX hotend. Rev1 can confirm it from the printer serial number.
Will it fit the original F430?
No. The F430 uses part 106007.
Is this a genuine CreatBot sensor?
Yes, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
