CreatBotF430 NX Removable Magnetic SheetGenuine CreatBot Replacement Part
For the CreatBot F430 NX

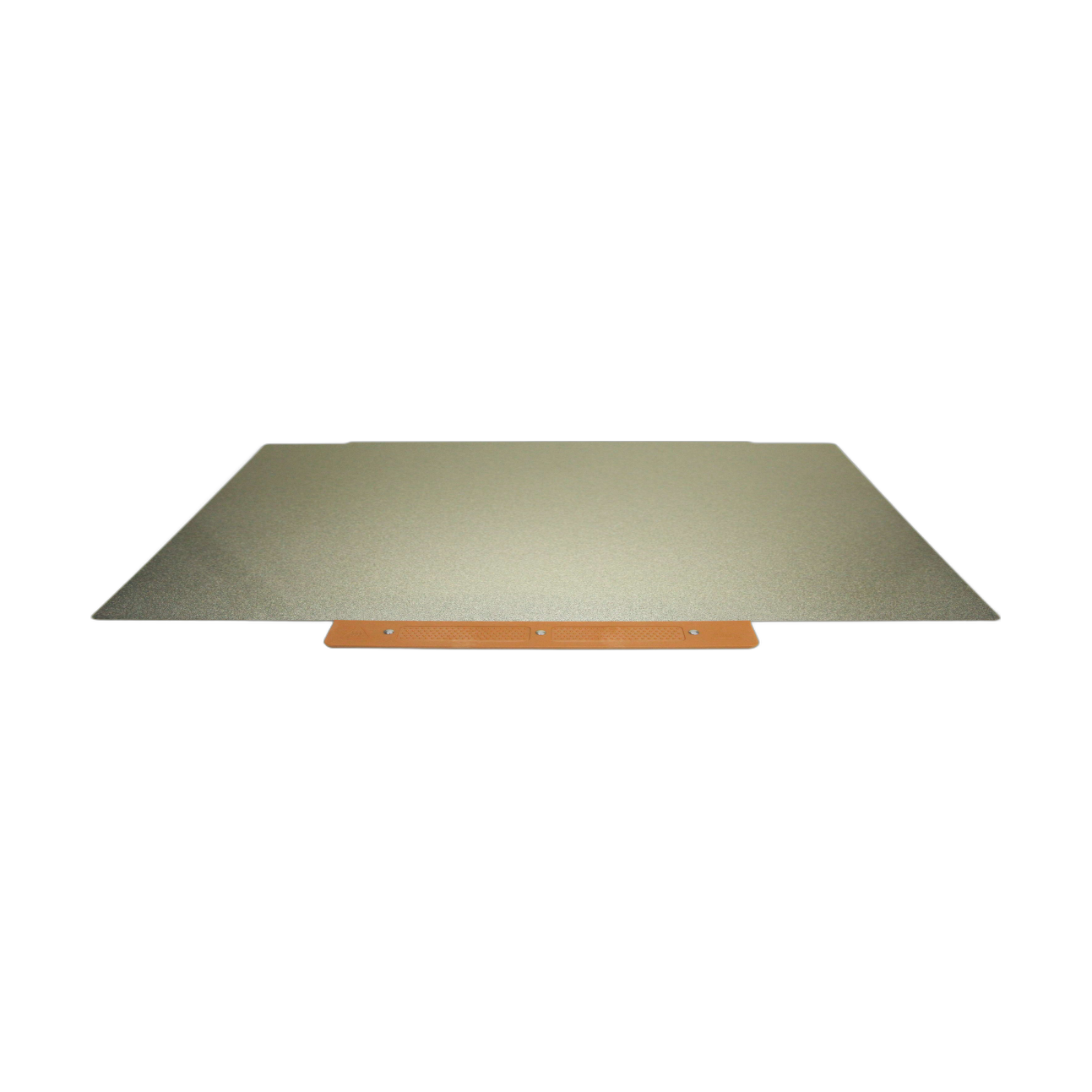

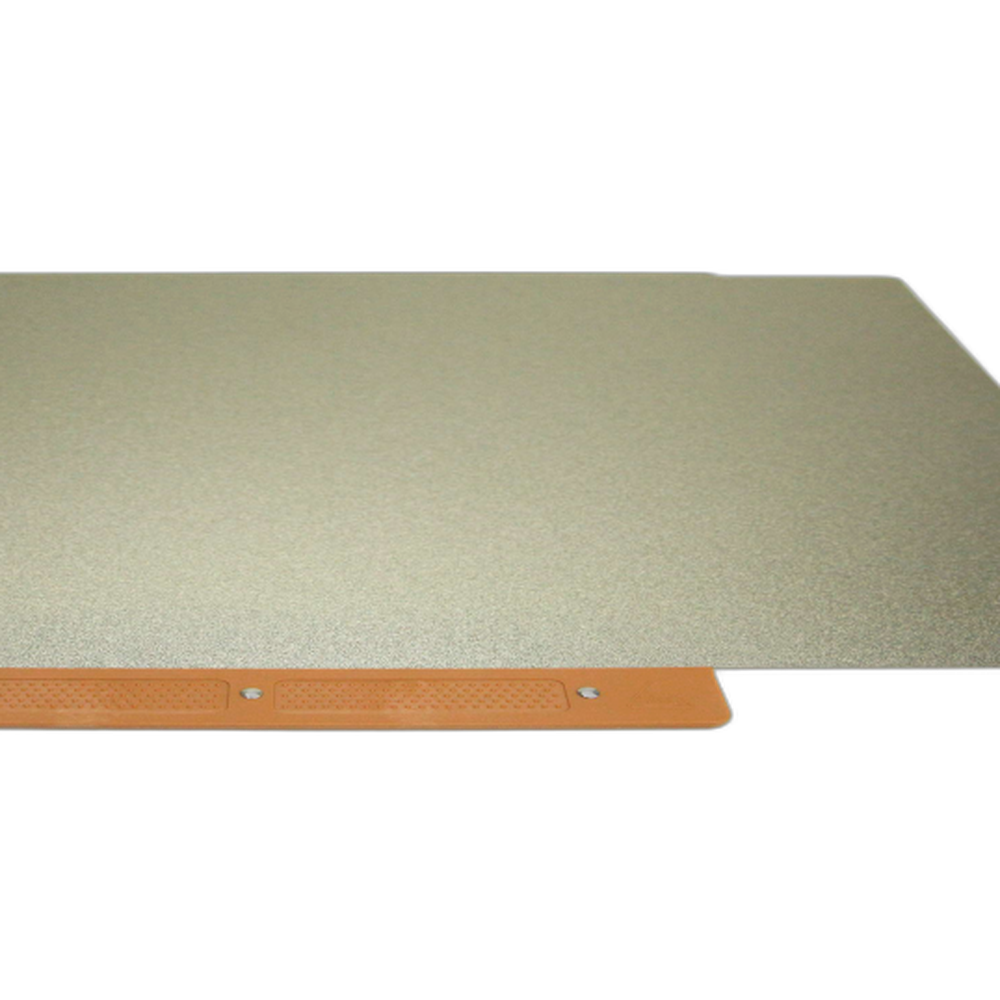

The CreatBot F430 NX removable magnetic sheet (part 107005) is the OEM build sheet for the CreatBot F430 NX 3D printer. It is held in place magnetically while printing and lifts off when the job is finished. Flexing the sheet breaks the bond between the part and the surface, which is far gentler than levering a strongly bonded engineering part off a rigid bed with a blade. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot F430 NX Removable Magnetic Sheet, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Why it matters on the F430 NX
Engineering materials can bond hard to the build surface. Flexing the sheet releases them without gouging the surface or cracking the part.
When the sheet is flat and undamaged.
Take the finished job off with the sheet and fit a spare to keep printing.
So it seats in the right position.
Compatible CreatBot 3D printer
This sheet is listed for the F430 NX only. The original F430 uses part 107010, and the PEEK-250 uses its own removable magnetic sheet, part 107006.
Signs you need a new sheet
Replace the sheet if it has a bend or kink that stops it lying flat, if the print surface is scored or worn through, or if parts no longer hold even after a thorough clean. A sheet that has been folded while removing a part often shows a ridge you can feel by hand, and that ridge prints as a thin line in the first layer. Keeping a second sheet means a damaged one never holds up a job.
Installation tips
Let the bed cool before you touch the sheet. Lift the old sheet off and clean the bed so nothing is trapped beneath the new one. Place the new sheet aligned with the bed edges, press it flat, and run the leveling routine. Check the Z offset and print a first layer test before a production job.
CreatBot F430 NX Removable Magnetic Sheet Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot F430 NX Removable Magnetic Sheet — Questions
Will it fit the original F430?
No. The F430 uses removable magnetic sheet part 107010.
How should I flex the sheet?
Bend it gently in a smooth curve, after the sheet has cooled. Never fold it sharply.
Is this a genuine CreatBot part?
Yes, CreatBot part 107005, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
