CreatBotF430 NX / PEEK-250 HotendGenuine CreatBot Replacement Part
Hotend for F430 NX and PEEK-250 3D Printers

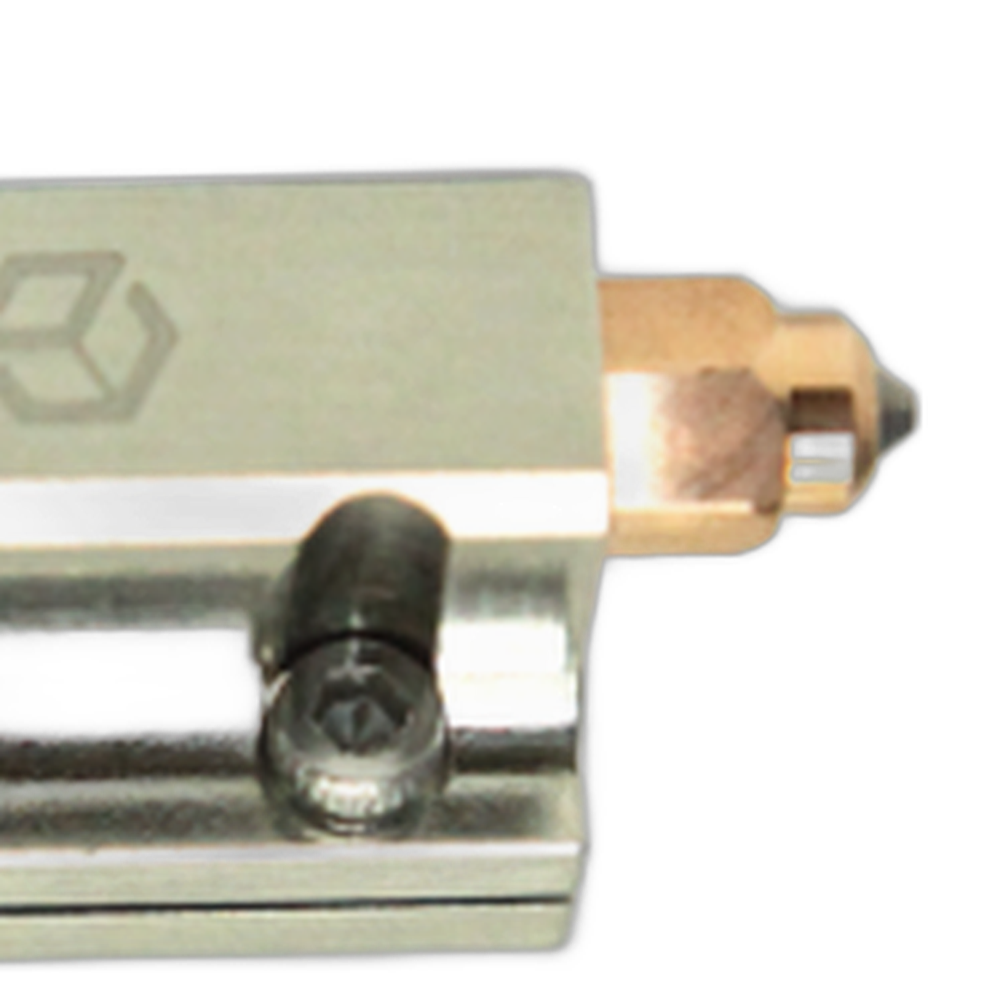

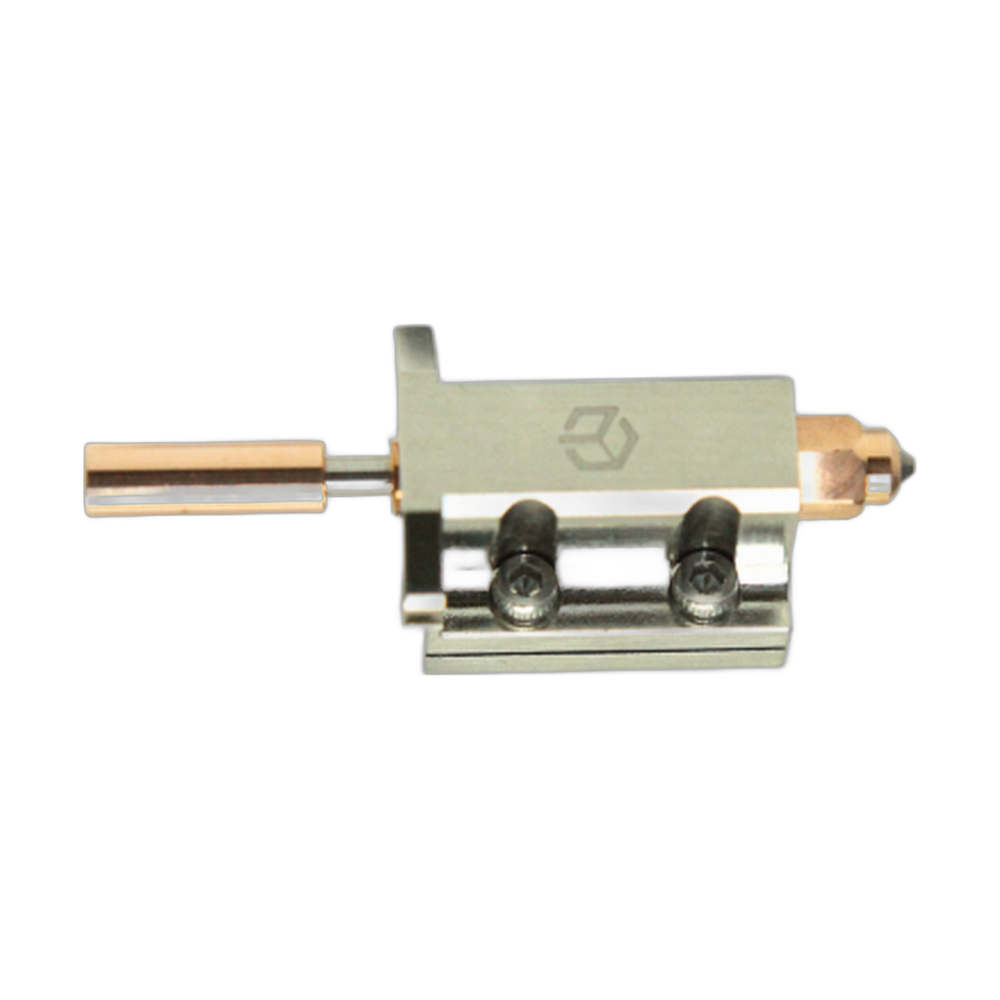

The CreatBot hotend (part 104005) is the OEM replacement hotend for the CreatBot F430 NX and PEEK-250 3D printers. The hotend is the heated assembly at the business end of the extruder: it melts the filament and pushes it through the nozzle at a controlled temperature. On machines built for engineering materials, a worn or damaged hotend shows up quickly as poor extrusion and failed prints, and a genuine replacement returns the print head to its factory condition. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot F430 NX / PEEK-250 Hotend, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs your hotend needs replacing
Repeated jams or clogs that come back after cleaning the nozzle.
Under-extrusion, gaps in walls or a clicking extruder while the filament path is clear.
The hotend heats slowly, will not hold its set temperature or reports a temperature error.
Filament leaking around the nozzle or heating block.
Damaged wiring or a cracked or stripped component in the hotend assembly.
Some of these symptoms can also come from the extruder drive, filament or a cable fault. If you are not sure, contact Rev1 support and we will help you narrow it down before you order.
Compatible CreatBot 3D printers
The standard F430 uses a different hotend: part 104008 (LT Hotend V1 0.4 mm) or part 104009 (HT Hotend V1 0.4 mm). The PEEK-300 uses part 104016 (LT) or part 104017 (HT).
Installation tips
Power the printer off and unplug it, then let the hotend cool fully before you remove the assembly. Photograph the wiring and connector positions before you disconnect anything so the new hotend goes back exactly the same way. Route the cables clear of moving parts and secure them as they were. After installation, heat the hotend, check for leaks, recalibrate nozzle height and bed leveling, and run a short test print. If you would rather not do the work yourself, Rev1 can install it as your certified CreatBot service provider.
CreatBot F430 NX / PEEK-250 Hotend Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot F430 NX / PEEK-250 Hotend — Questions
Is this a genuine CreatBot hotend?
Yes. It is CreatBot part 104005, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Will it fit my standard F430?
No. This hotend is for the F430 NX and PEEK-250. The standard F430 uses part 104008 (LT) or part 104009 (HT).
Should I keep a spare hotend on hand?
If your F430 NX or PEEK-250 runs production work or long engineering prints, a spare hotend lets you swap out a clogged or damaged unit and keep printing while you service the old one.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
