CreatBotF430 NX MotherboardGenuine CreatBot Replacement Part
F430 NX Motherboard (Main Control Board)

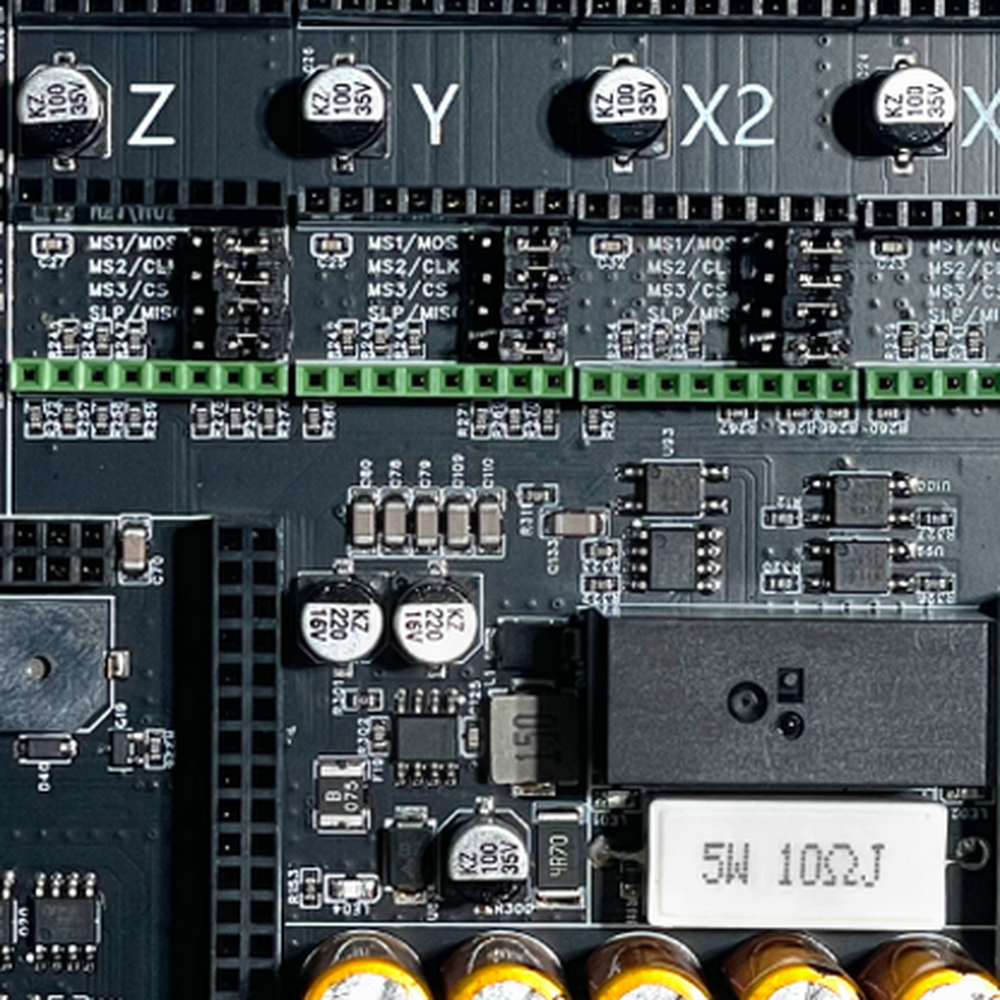

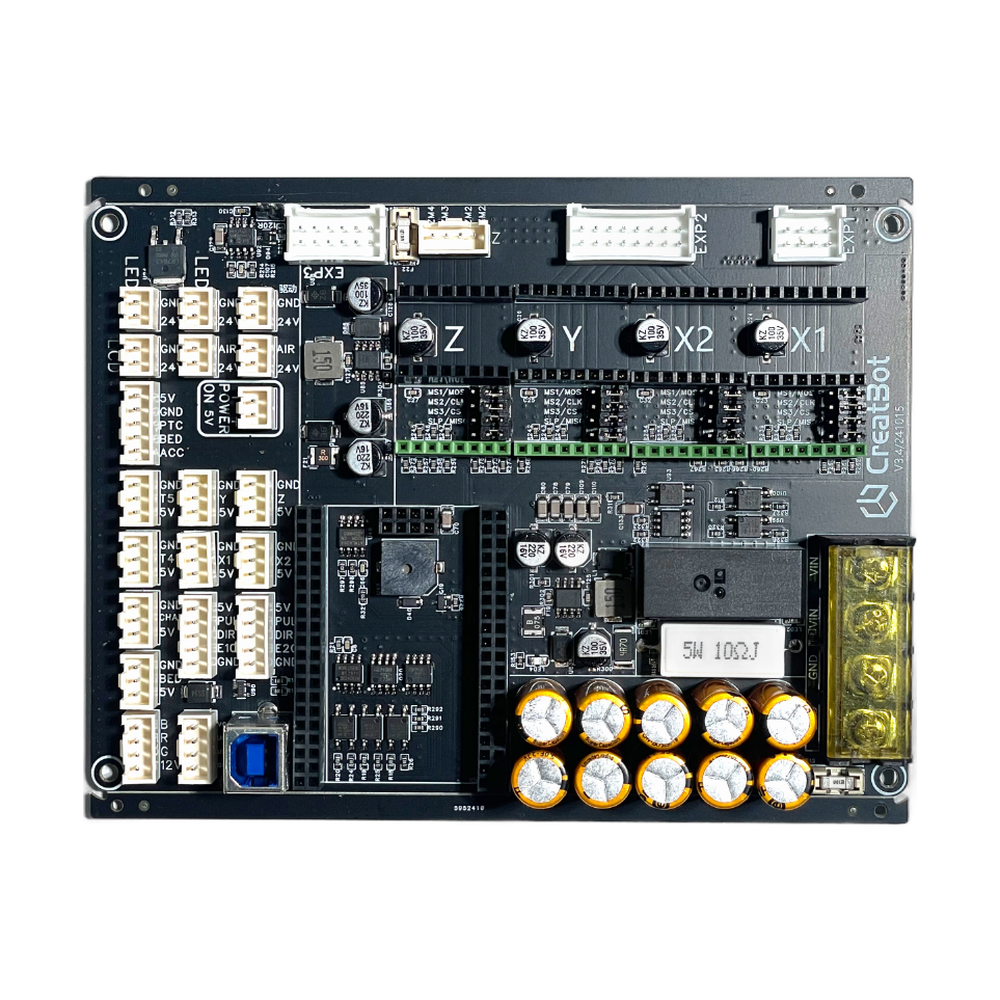

The CreatBot F430 NX motherboard (part 111003) is the OEM main control board for the CreatBot F430 NX. The F430 NX is a different machine from the original F430, and it has its own control board. This board runs the firmware, drives the motion system, switches the hotends and heated components, and reads the printer's sensors, so when it fails nothing else on the printer works properly. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot F430 NX Motherboard, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs your motherboard may need replacing
The F430 NX does not start, restarts on its own, or the screen cannot talk to the printer.
Axes, heaters or fans do not respond, although the parts themselves test good.
Visible damage on the board, such as burnt components or a damaged connector.
Other faults can look the same, for example a failed power supply, cable or extruder board. Contact Rev1 support before you order and we will help you confirm the board is the cause.
Compatible CreatBot 3D printer
The original F430 uses different boards: the 8-bit V9.6 board (part 111005) or the 32-bit V1.3 board (part 111006). Order by the exact model on your printer's label.
Before you replace the board
Write down what the printer does and when it started. Check the power supply output, reseat the main cables and look for damaged wiring in the printhead harness. If the fault survives those checks, the board is a likely cause. Rev1 support can walk you through the checks and confirm the diagnosis, which avoids replacing a good board.
Installation
Power the printer off and unplug it before opening the electronics bay. Photograph every connector before you disconnect anything, use anti-static precautions, and transfer the cables one at a time. Check the firmware with Rev1 support after installation, then run a test print. If your F430 NX is under warranty, contact us first: Rev1 can perform the replacement as your certified CreatBot service provider.
CreatBot F430 NX Motherboard Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot F430 NX Motherboard — Questions
Will this board work in an original F430?
No. The F430 uses part 111005 or 111006, depending on whether it has 8-bit or 32-bit electronics.
Is this the same board my F430 NX shipped with?
Yes. It is the genuine CreatBot F430 NX motherboard, part 111003.
Can Rev1 install it for me?
Yes. Rev1 is a certified CreatBot service provider and can diagnose, replace and test the board.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
