CreatBotF430 NX Heating TubeGenuine CreatBot Replacement Part

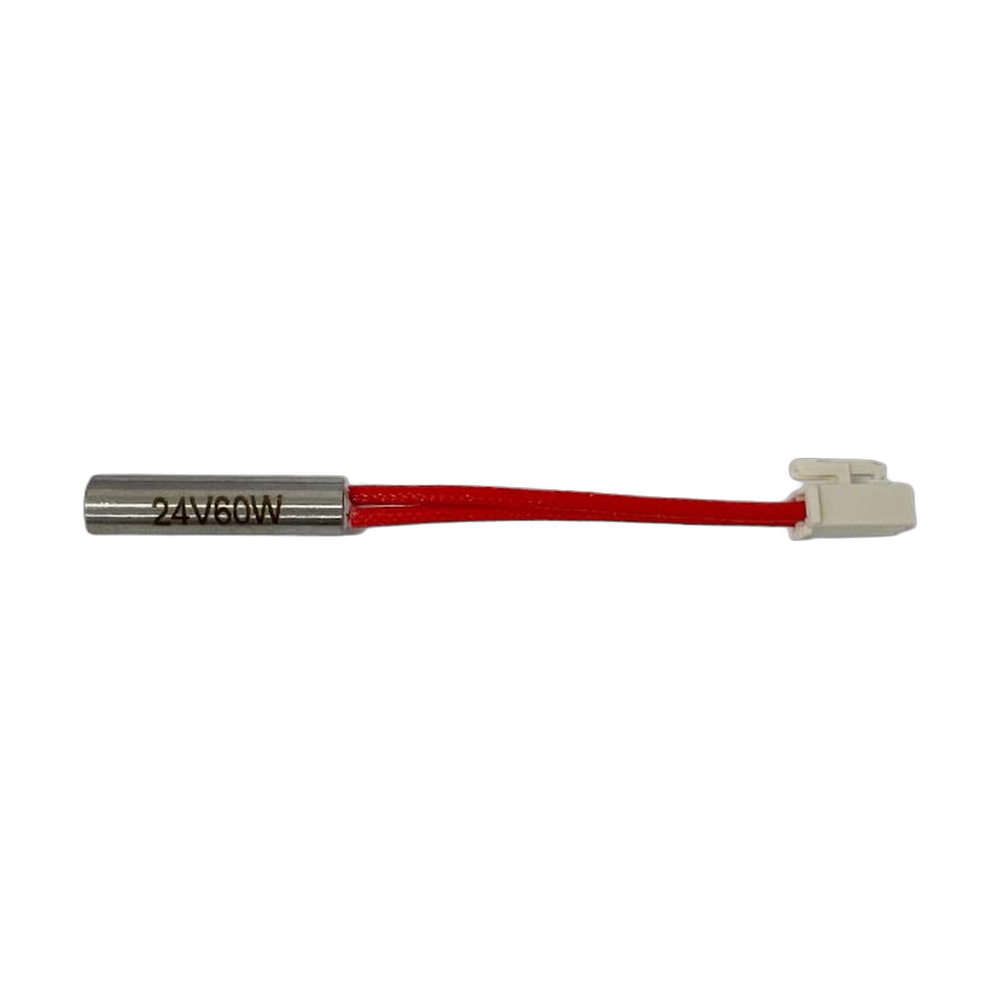

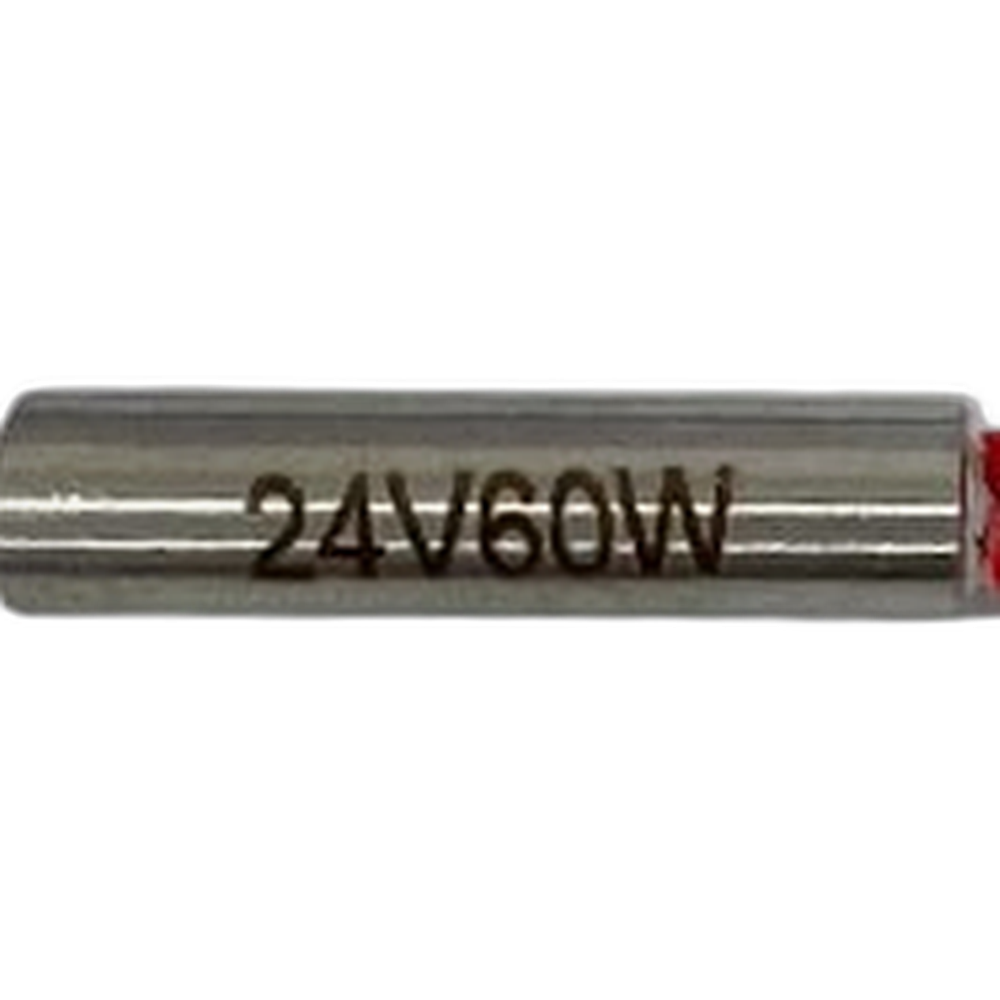

F430 NX Heating Tube (Hotend Heater Cartridge)
The CreatBot F430 NX heating tube is the OEM heater cartridge for the hotend of the CreatBot F430 NX 3D printer. It sits in a bore in the heating block and converts electrical power into heat, bringing the nozzle up to printing temperature and holding it there. CreatBot supplies two versions for the F430 NX: the original heating tube (part 105003) and the V2 heating tube (part 105004). Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot F430 NX Heating Tube, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the heating tube needs replacing
The hotend heats slowly, will not reach its set temperature or drops temperature during a print.
The printer reports a heating failure or thermal runaway error on the hotend.
The heater wires are damaged, pinched or burnt near the block.
A resistance check shows an open circuit on the heater.
A failed temperature sensor, loose connector or controller fault can cause similar symptoms. Rev1 support can help you narrow it down before you order.
Choose your version
| Version | Part number | Fits |
|---|---|---|
| Original | 105003 | F430 NX |
| V2 | 105004 | F430 NX |
Compatible CreatBot 3D printer
Both versions are for the F430 NX only. The original F430 uses a different heating tube (105006), and the PEEK-250 uses its own (105005).
Original or V2: which one?
Both versions fit the F430 NX, but they are different revisions and should be matched to your machine. Check the heating tube that is installed now, along with any service records for the printer. If it has already been replaced with V2, order V2 again. If you cannot identify the version, contact Rev1 with the printer serial number and a photo of the hotend wiring, and we will confirm the right part. Fitting the matching heating tube keeps the hotend behaving the way the firmware expects.
Installation tips
Turn the printer off, unplug it and let the hotend cool completely. Loosen the retaining screw, slide the old heating tube out of the heating block and follow its wire back to the connector. Insert the new tube fully, tighten the retaining screw firmly without crushing the cartridge, and route the wire away from moving parts. Heat the hotend and watch the temperature reading to confirm stable heating before printing.
CreatBot F430 NX Heating Tube Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot F430 NX Heating Tube — Questions
Which version do I need?
The one that matches the heating tube installed in your F430 NX. Rev1 can confirm it from your serial number.
Should I replace the temperature sensor at the same time?
Only if it is faulty. The F430 NX temperature sensor is a separate part, also offered in Original and V2 versions.
Can Rev1 diagnose a heating fault?
Yes. Rev1 is a certified CreatBot service provider and can test and repair the hotend.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
