CreatBotF430 NX Extruder PCBGenuine CreatBot Replacement Part
F430 NX Extruder PCB, Left or Right, for the F430 NX 3D Printer

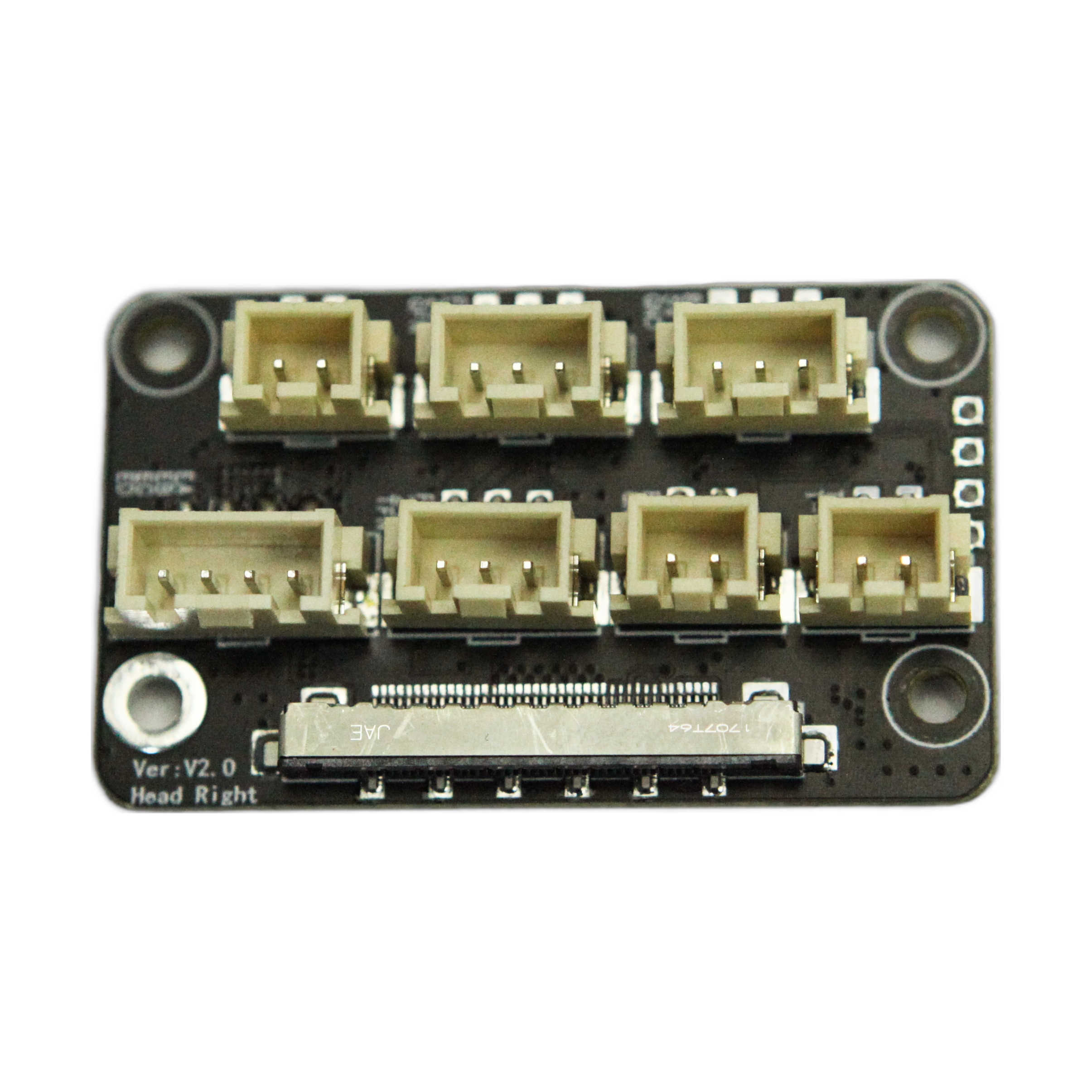

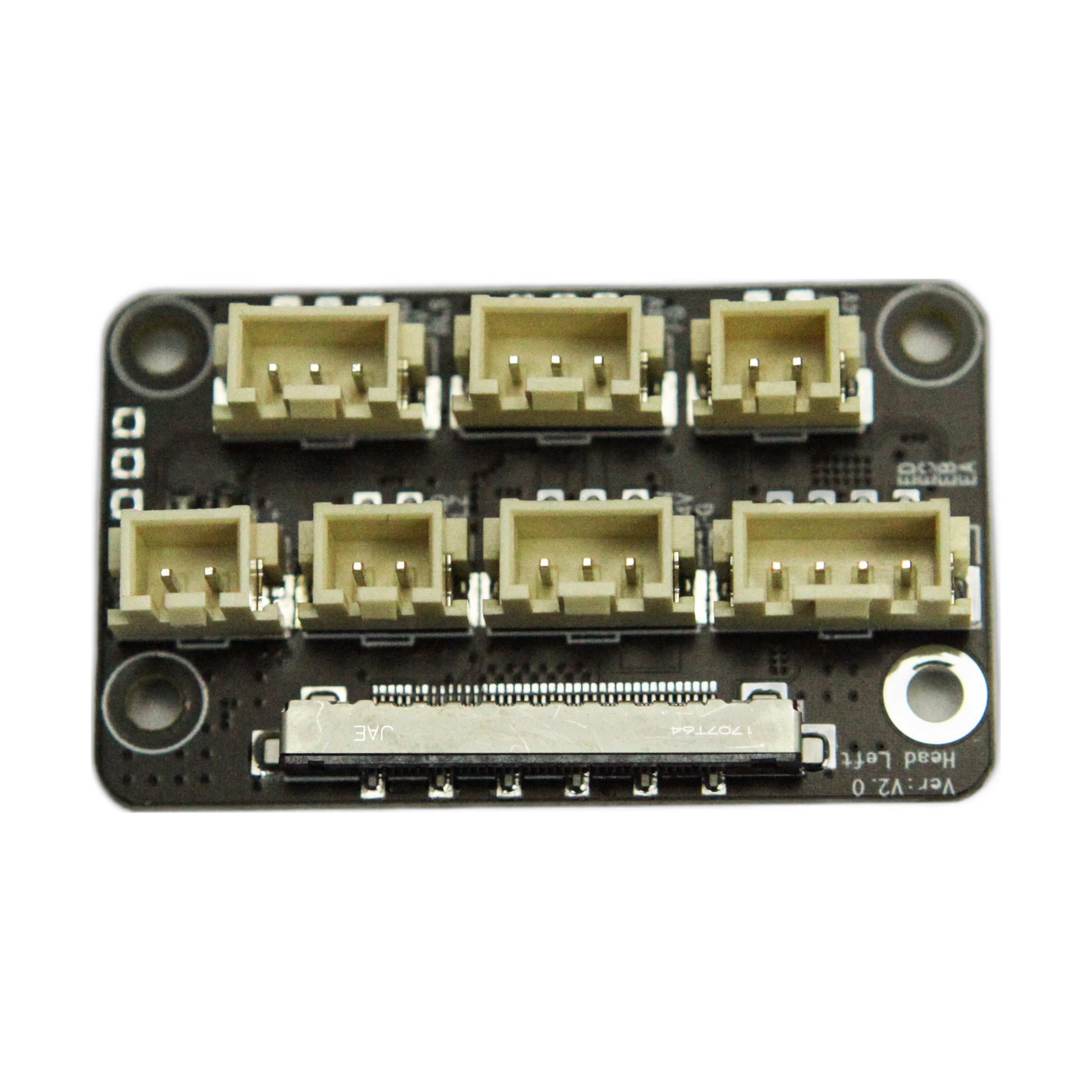

The CreatBot F430 NX extruder PCB is the OEM print head circuit board for the CreatBot F430 NX. The F430 NX has a left and a right extruder, and each side has its own board. Each board connects the components on its side of the head, the hotend heater, temperature sensor, fans and extruder motor, to the printer's main control board. CreatBot also revised the boards, so there are four parts: left and right in the original version, and left and right in V2. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot F430 NX Extruder PCB, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs an extruder PCB needs replacing
A temperature error or unstable reading on one hotend only.
One side will not heat or extrude, while the other side works normally.
A head fan or extruder motor on one side stops working although the part tests good.
Visible damage such as a burnt or loose connector on one board.
Because the fault usually affects one side, note which extruder is misbehaving. Contact Rev1 support and we will help you confirm the board is the cause.
Choose your version and side
| Version | Side | Part number | Fits |
|---|---|---|---|
| Original | Left | 112003 | F430 NX |
| Original | Right | 112004 | F430 NX |
| V2 | Left | 112005 | F430 NX |
| V2 | Right | 112006 | F430 NX |
Compatible CreatBot 3D printers
All four boards fit the F430 NX only. The original F430 uses different extruder boards (112008, 112019 or 112017).
Choosing the right board
Pick the side first. Left and right boards serve different extruders and are separate parts, so order the side that has the fault. Then pick the version. Open the print head with the printer cool and unplugged and read the marking on the board: a board marked V2 is replaced by 112005 (left) or 112006 (right), and an unmarked original board by 112003 (left) or 112004 (right). If both sides are affected, or the marking is unclear, send Rev1 a photo of both boards.
Installation tips
Let both hotends cool, then power the printer off and unplug it. Photograph the board with every lead connected, transfer the connectors one at a time, and keep the left and right harnesses on their own sides. Refit the cover without pinching wires, then heat both hotends and run a test print with each extruder.
CreatBot F430 NX Extruder PCB Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot F430 NX Extruder PCB — Questions
Which version and side do I need?
The side of the faulty extruder, in the version marked on the board you are replacing. Rev1 support can confirm from a photo.
Can a left board be used on the right?
No. They are different parts. Order the side you need.
Do these fit the original F430?
No. They are for the F430 NX only.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
