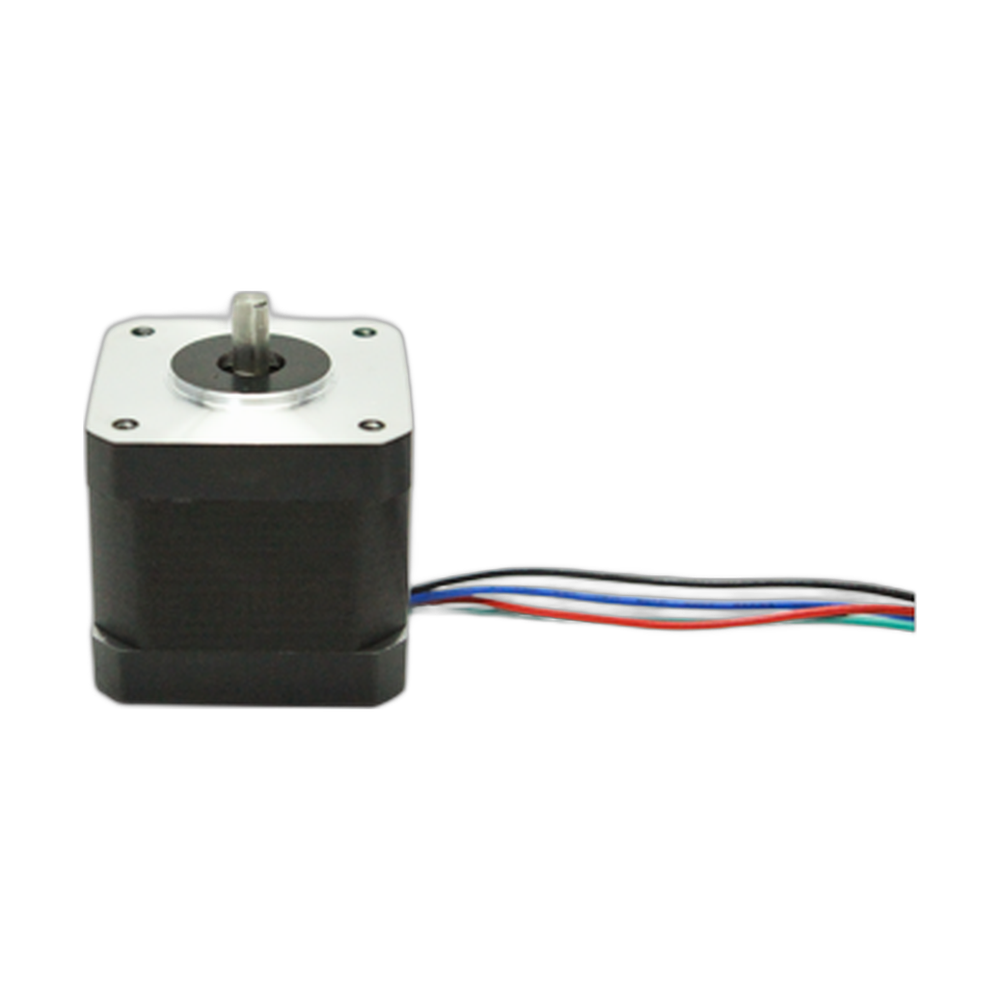

CreatBotF430 NX Extruder MotorGenuine CreatBot Replacement Part
F430 NX Extruder Motor (Left or Right)
The CreatBot F430 NX extruder motor is the OEM motor that drives filament feed on the CreatBot F430 NX. The F430 NX has two extruders, a left and a right, and each has its own motor. The motor turns the drive gear that grips the filament and pushes it into the hotend, so it sets how much material reaches the nozzle on every move. This listing covers both sides: choose the left or right motor to match the extruder you are repairing. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot F430 NX Extruder Motor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs an extruder motor needs replacing
One extruder does not turn during load or extrude commands while the other works normally.
Clicking, skipping or grinding on one side with a clear nozzle and filament path.
Under-extrusion, gaps or thin walls from one extruder only.
Vibration without movement, or one motor running much hotter than the other.
A partial clog, a worn drive gear, wrong tension or a cable fault can look like a motor failure. Rev1 support can help you isolate the cause before you order.
Choose your side
| Side | Part number | Fits |
|---|---|---|
| Left | 131011 | F430 NX |
| Right | 131012 | F430 NX |
Compatible CreatBot 3D printers
Both sides fit the F430 NX only. The original F430 uses different extruder motors, parts 131016 (E1) and 131017 (E2). The other F430 NX motors are the X motors 131007 (left) and 131008 (right), the Y motor 131009 and the Z motor 131010.
Choosing the left or right motor
Order the side that matches the extruder that has the fault. If you are not sure which extruder is failing, start a load or extrude command on each one from the touchscreen and watch which drive gear does not turn or skips. If both extruders print well and you want a spare, the side you use most for your main material is usually the better choice, since it does most of the work. If you run both extruders heavily, a spare for each side avoids downtime.
Installation tips
Unload filament from the extruder you are servicing and let the hotend cool. Power off and unplug the printer. Photograph the wiring and note how the drive gear sits on the shaft. Fit the new motor in the same orientation, align the drive gear with the filament path and reset the tension. Make sure the cable goes back to the same connector it came from, then extrude a test length on that side and run a short dual extrusion test.
CreatBot F430 NX Extruder Motor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot F430 NX Extruder Motor — Questions
Which side do I need?
Choose the side of the extruder that is failing: left is part 131011 and right is part 131012. If you are unsure, contact Rev1 support before ordering.
Will either motor fit the original F430?
No. The F430 uses parts 131016 and 131017.
Are these genuine CreatBot parts?
Yes. Both are genuine CreatBot motors, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified CreatBot service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
