F430 NX E Drive (Extruder Stepper Driver)

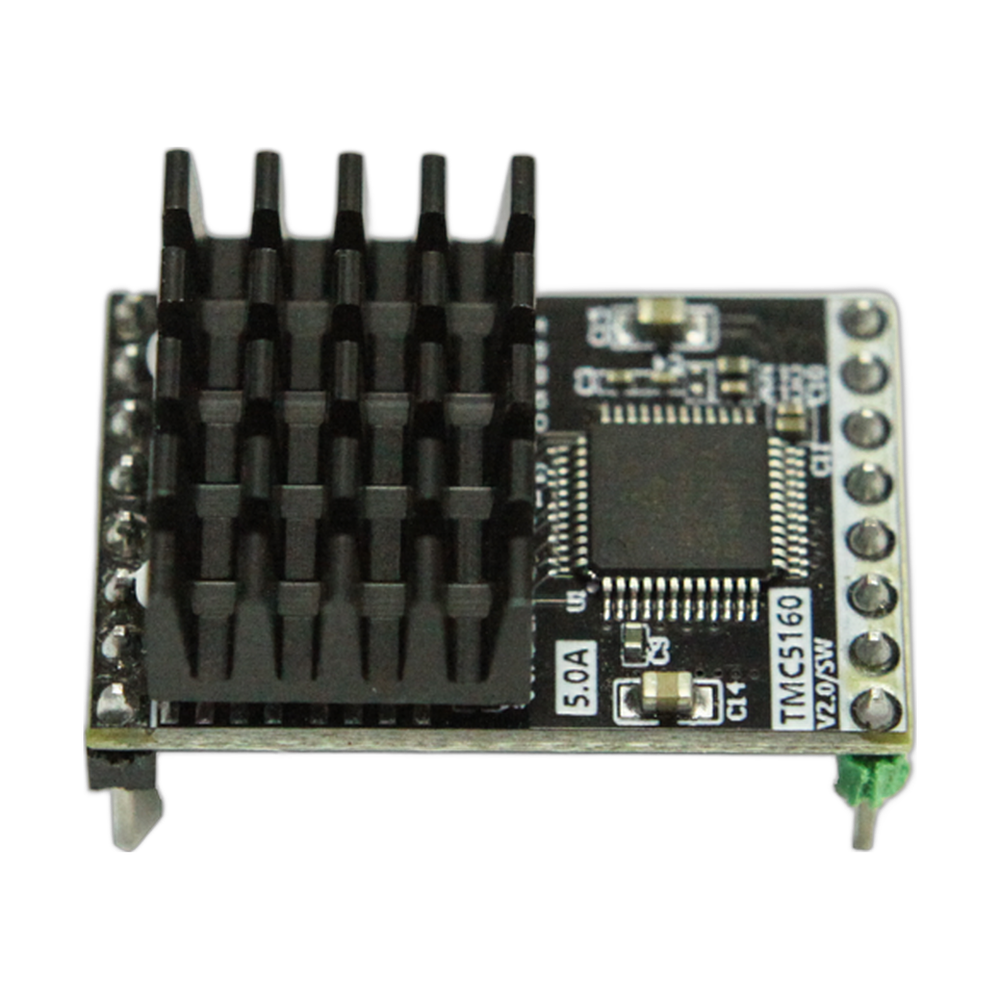

The CreatBot F430 NX E drive (part 115011) is the OEM extruder motor driver for the CreatBot F430 NX 3D printer. The F430 NX is built to print engineering materials, and those materials need a steady, accurate filament feed to bond well and hold dimensions. The E drive is the electronics behind that feed: it converts step commands from the main control board into the current that turns the extruder motor. When the driver weakens, the printer keeps moving but extrusion falls short. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot F430 NX E Drive, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the E drive may need replacing
The extruder motor stalls, clicks or turns unevenly while the axes move normally.
Under-extrusion, gaps and weak layers that continue after the nozzle and filament path are cleared.
Extrusion returns to normal when the extruder motor is tested on another known good driver.
Extruder errors on the touchscreen that come back after a restart.
Rule these out first
Engineering filaments are often hygroscopic, and wet filament can cause popping and poor extrusion that looks like a hardware fault. Also check for a partial clog, a worn drive gear and a damaged motor cable. If all of those are good and the fault follows the driver, replace the E drive.
Compatible CreatBot 3D printer
The F430 NX motion axes use their own drivers: the X/Z drive is part 115007 and the Y drive V2 is part 115009.
Installation tips
Power the printer off and unplug it before opening the electronics area. Photograph the driver and note its orientation, fit the new module the same way round and reconnect the extruder motor cable. Heat the hotend, run a manual extrusion test, then a short print.
CreatBot F430 NX E Drive Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot F430 NX E Drive — Questions
Does this fit the original F430?
Part 115011 is listed for the F430 NX only. Contact Rev1 with your model for the F430.
Can I use the X/Z drive in the extruder position?
Use the part CreatBot lists for each position. The E drive is part 115011 and the X/Z drive is part 115007.
Is this a genuine CreatBot part?
Yes, CreatBot part 115011, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
