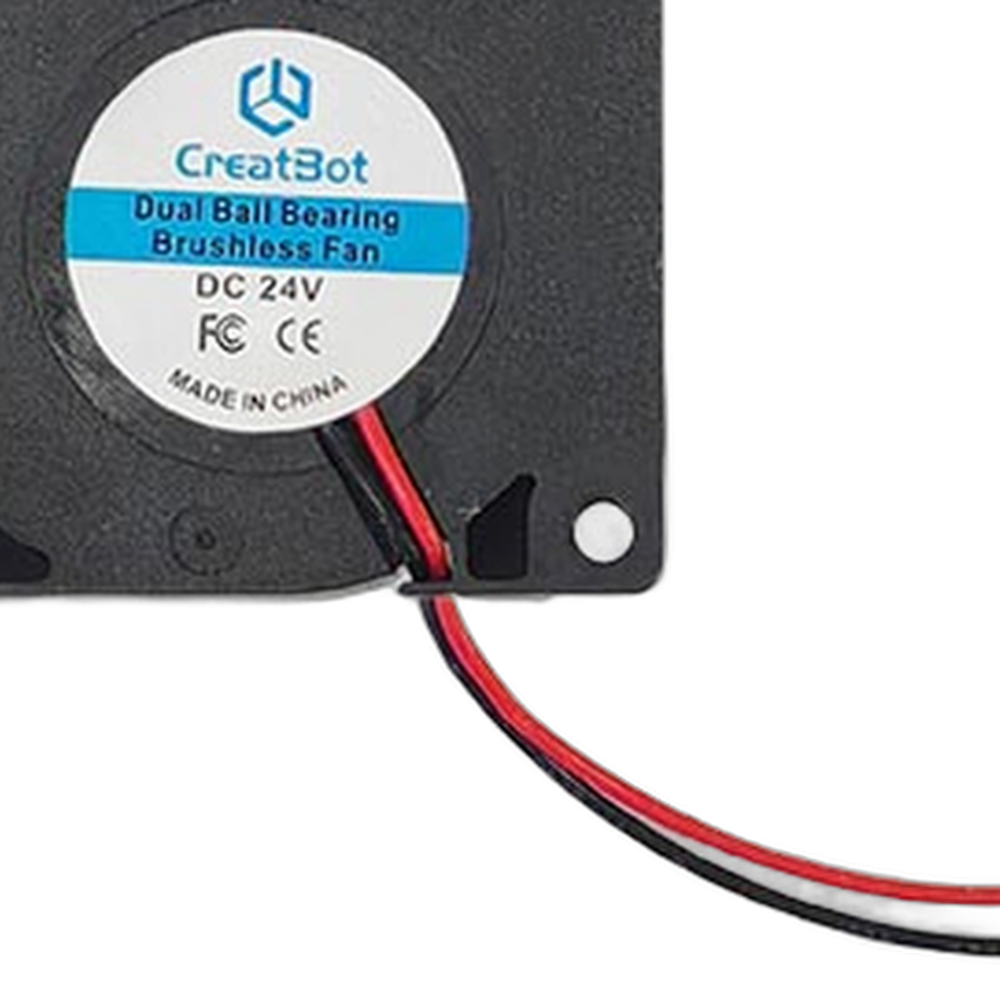

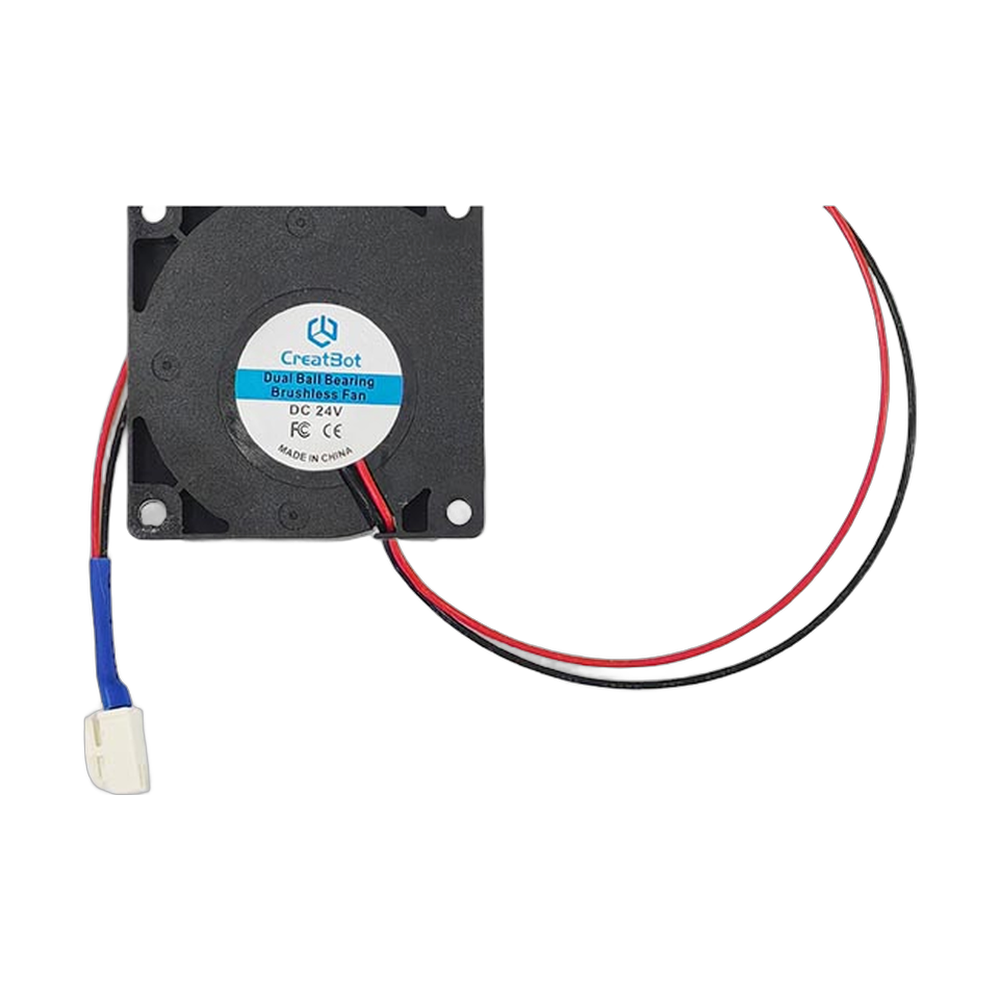

CreatBotF430 NX Cooling FanGenuine CreatBot Replacement Part
For the CreatBot F430 NX
The CreatBot F430 NX cooling fan (part 150008) is the OEM print cooling fan for the CreatBot F430 NX 3D printer. It blows air onto the plastic just after it leaves the nozzle, so each line firms up before the next layer arrives. On the F430 NX this fan serves a wide range of jobs, from fast cooling for PLA and PETG to gentle or no cooling for engineering materials that warp when chilled. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot F430 NX Cooling Fan, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the cooling fan needs replacing
Profiles that used to give clean overhangs now leave them drooping.
Bridges sag in the middle.
Fine text, pins and corners look melted.
The fan does not respond to fan speed commands, or it rattles while running.
Compatible CreatBot 3D printer
The F430 NX also uses a sink fan (150007) and a cross flow fan (150012 for 220V, 150013 for 110V). The original F430 is a different machine and uses cooling fan 150015.
F430 NX or F430?
The F430 NX and the F430 share a name but not all of their parts, and the cooling fans are different. Check the model name on the printer's label or on the touchscreen information page before you order. If it reads F430 NX, this is the right fan. If it reads F430 only, order part 150015.
Installation tips
Power the printer off and let the hotend cool before you touch the print head. Note the fan's mounting, orientation and cable route. Fit the new fan the same way round so the airflow still targets the nozzle area, keep the cable clear of the heater block and moving parts, then run a short print with part cooling on to confirm the fan responds.
CreatBot F430 NX Cooling Fan Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot F430 NX Cooling Fan — Questions
Does this fit the original F430?
No. The F430 uses cooling fan 150015.
The fan spins but prints still look soft. What else should I check?
Make sure the fan duct is not cracked or clogged, and that your slicer profile actually turns the fan on for that material.
Is this a genuine CreatBot part?
Yes. It is CreatBot part 150008, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
