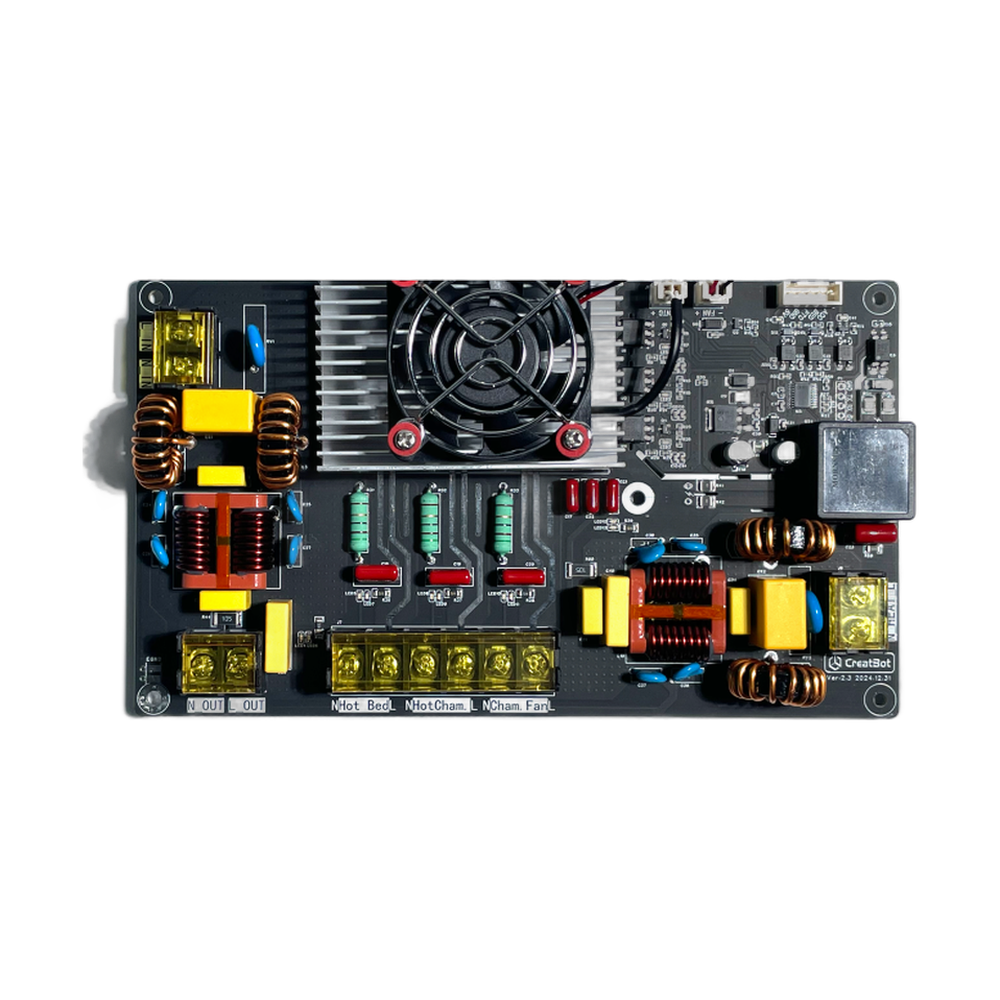

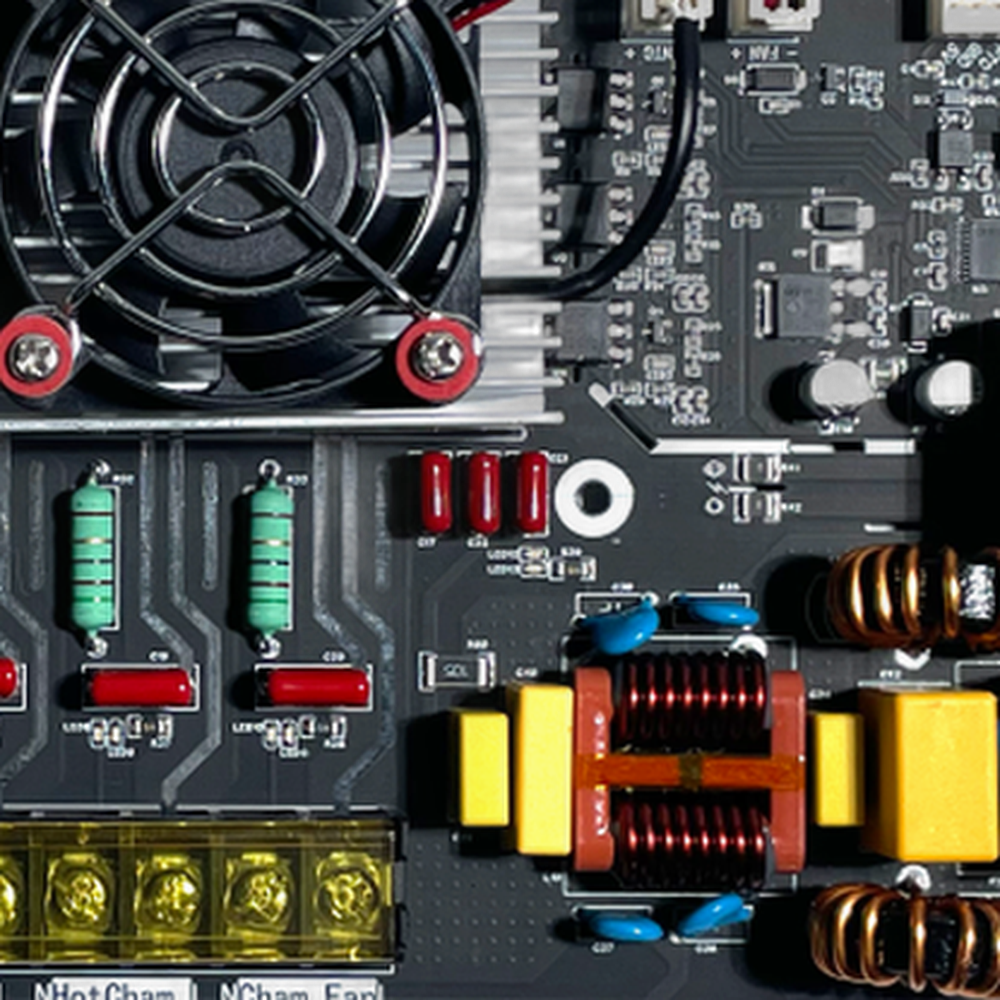

CreatBotF430 NX AC Power Control BoardGenuine CreatBot Replacement Part
F430 NX AC Power Control Board for F430 NX and F430 3D Printers
The CreatBot F430 NX AC power control board (part 113003) is the OEM mains power board for the CreatBot F430 NX, and CreatBot also lists it for the original F430. It works alongside the motherboard: the motherboard decides when a mains powered load, typically a heater, should be on, and the AC power control board switches the AC supply to make it happen. Keeping mains switching on its own board also keeps high voltage wiring away from the printer's control electronics. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot F430 NX AC Power Control Board, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Why replace it with a genuine board
For the F430 NX electrical compartment.
As designed.
One spare serves both the F430 NX and the F430.
Signs the AC power control board may need replacing
A mains powered heater does not switch on, or does not switch off, while the heater and motherboard test good.
Scorch marks, a melted terminal or a burnt smell from the board.
A fuse or breaker that trips again after reset.
Contact Rev1 support before ordering and we will help you confirm the board is the cause.
Compatible CreatBot 3D printers
The F430 can also use the F430 AC power control board (part 113005). For the F430 NX, this board is the listed part.
Installation and safety
This board carries mains voltage and should be replaced by a qualified person. Switch the printer off and unplug it from the wall before opening the electrical compartment. Photograph and label each terminal, fit the new board in the same position, and tighten every terminal firmly with no stray strands. Close the compartment before restoring power, then heat the printer and confirm each heater switches on and off as it should. Never bypass a fuse or protective device to get a heater working. If your printer is under warranty, contact Rev1 first: we can do the replacement as your certified CreatBot service provider.
CreatBot F430 NX AC Power Control Board Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot F430 NX AC Power Control Board — Questions
I have an original F430. Should I order 113003 or 113005?
Both are listed for the F430. Match the board fitted to your printer, or send Rev1 a photo and we will confirm.
Is this the board my F430 NX shipped with?
Yes. Part 113003 is the genuine CreatBot AC power control board listed for the F430 NX.
Is this a genuine CreatBot part?
Yes. It is CreatBot part 113003, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
