CreatBotF430 Heating TubeGenuine CreatBot Replacement Part
F430 Heating Tube (Hotend Heater Cartridge) for F430 and PEEK-300 3D Printers

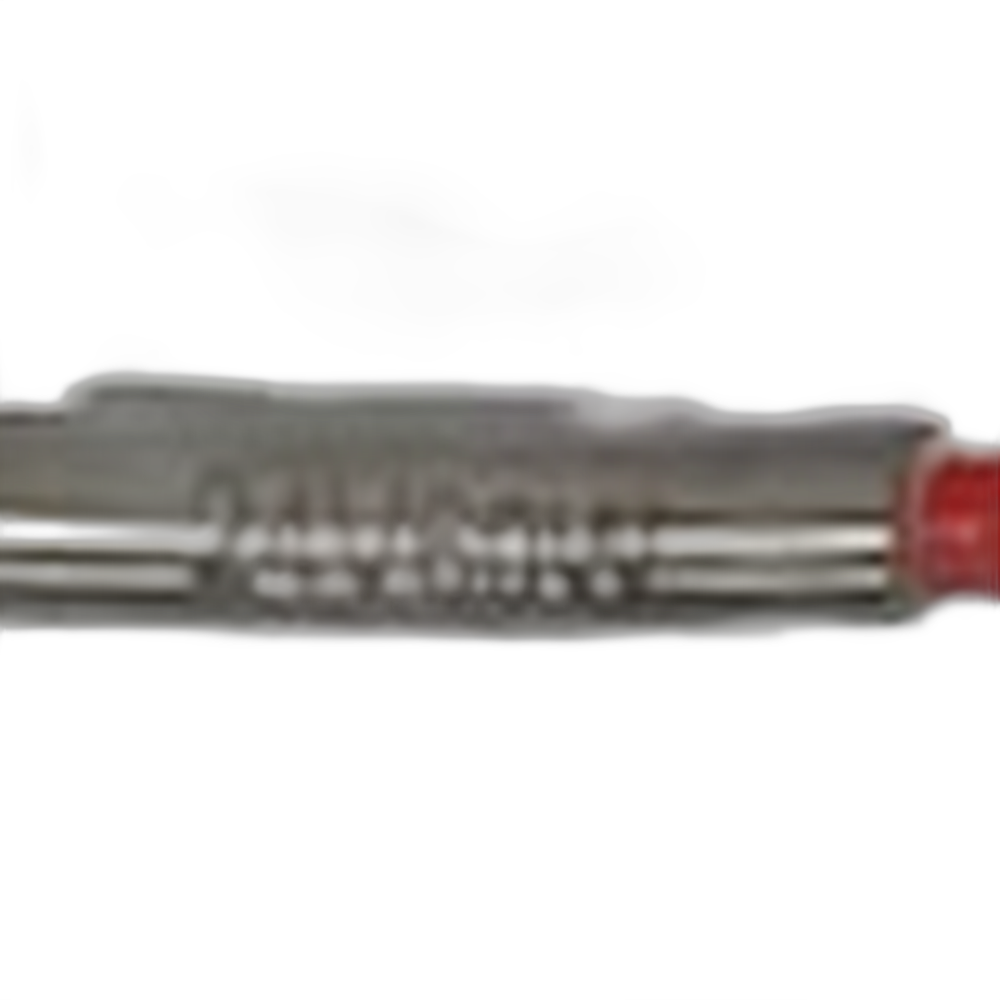

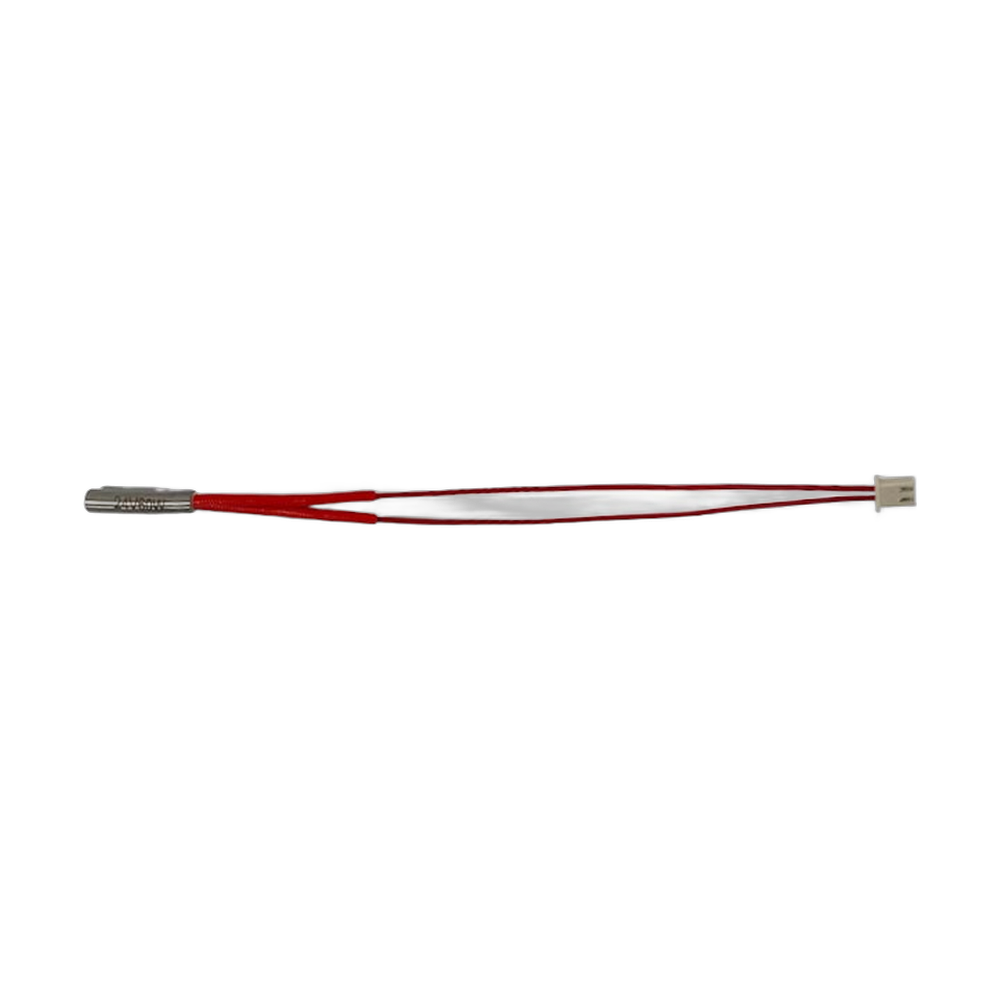

The CreatBot F430 heating tube (part 105006) is the OEM heater cartridge for the hotend on the CreatBot F430, and it is also listed for the PEEK-300. The heating tube sits inside the heating block and turns electrical power into the heat that melts filament. When it fails, the hotend cannot reach or hold its set temperature, and the printer will usually stop with a heating error. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot F430 Heating Tube, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the heating tube needs replacing
The hotend heats very slowly or never reaches the target temperature.
The printer reports a heating failure or thermal runaway error.
The temperature reading drops during a print while the sensor tests good.
Damaged, pinched or burnt wires where the cartridge leaves the heating block.
A failed temperature sensor, a loose connector or a wiring fault can cause the same errors. Contact Rev1 support and we will help you confirm the heating tube is the cause.
Compatible CreatBot 3D printers
CreatBot also lists the PEEK300 Heating tube (105008) for the F430 and PEEK-300, and the PEEK300 DAS Heating tube (105012) for the PEEK-300. If you are not sure which tube your printer uses, match the part number on your existing part or ask Rev1. The F430 NX uses 105003 or 105004, and the F1000 uses 105009.
Installation tips
Power the printer off, unplug it and let the hotend cool fully before you start. Note how the heater wires are routed, loosen the clamp screw on the heating block and slide the old cartridge out. Fit the new heating tube fully into the block, tighten the clamp without crushing the cartridge, and route the wires away from moving parts. Reconnect it, heat the hotend while you watch the temperature reading, and run a short test print.
CreatBot F430 Heating Tube Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot F430 Heating Tube — Questions
What is the difference between 105006 and 105008?
Both are listed for the F430 and PEEK-300. Match the part number on the tube you are replacing, or contact Rev1 support and we will confirm the right one for your machine.
Will it fit my F430 NX?
No. The F430 NX uses the F430 NX Heating tube (105003) or V2 (105004).
Is this a genuine CreatBot part?
Yes. It is CreatBot part 105006, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
