CreatBotF430 FFC CableGenuine CreatBot Replacement Part

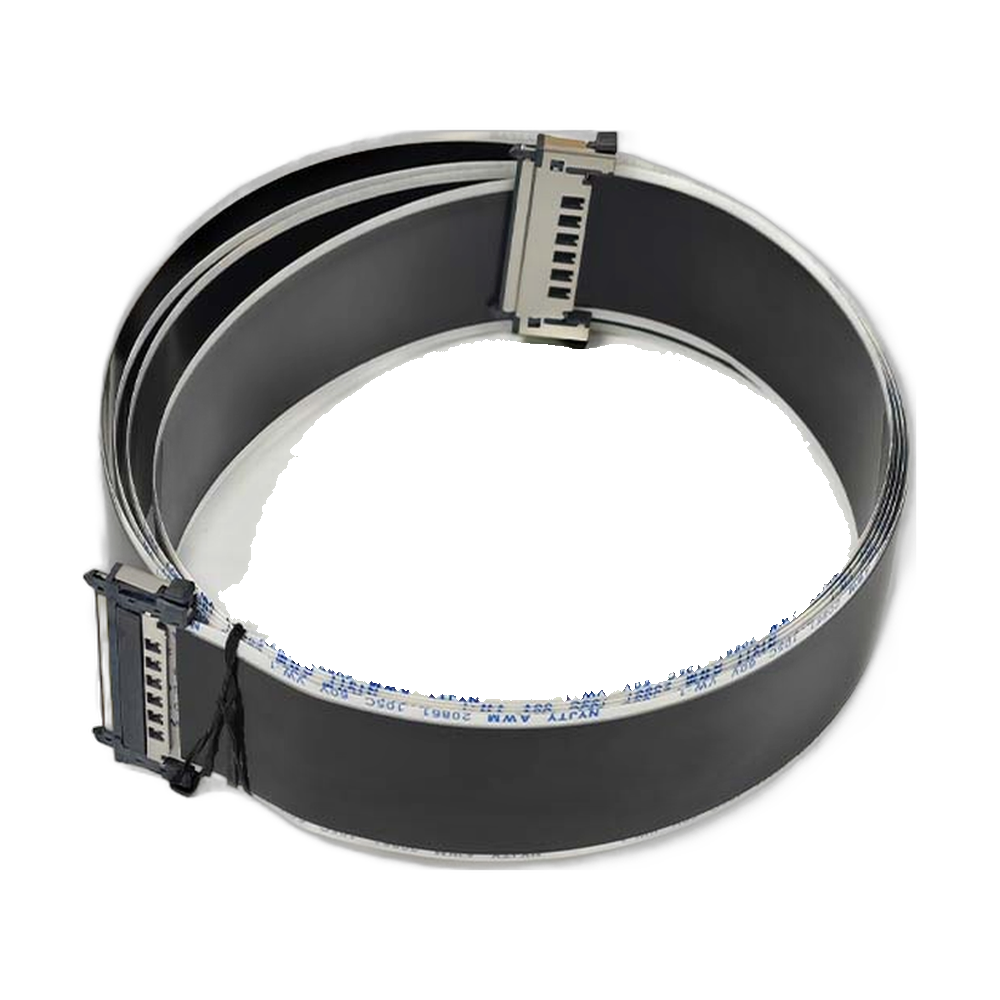

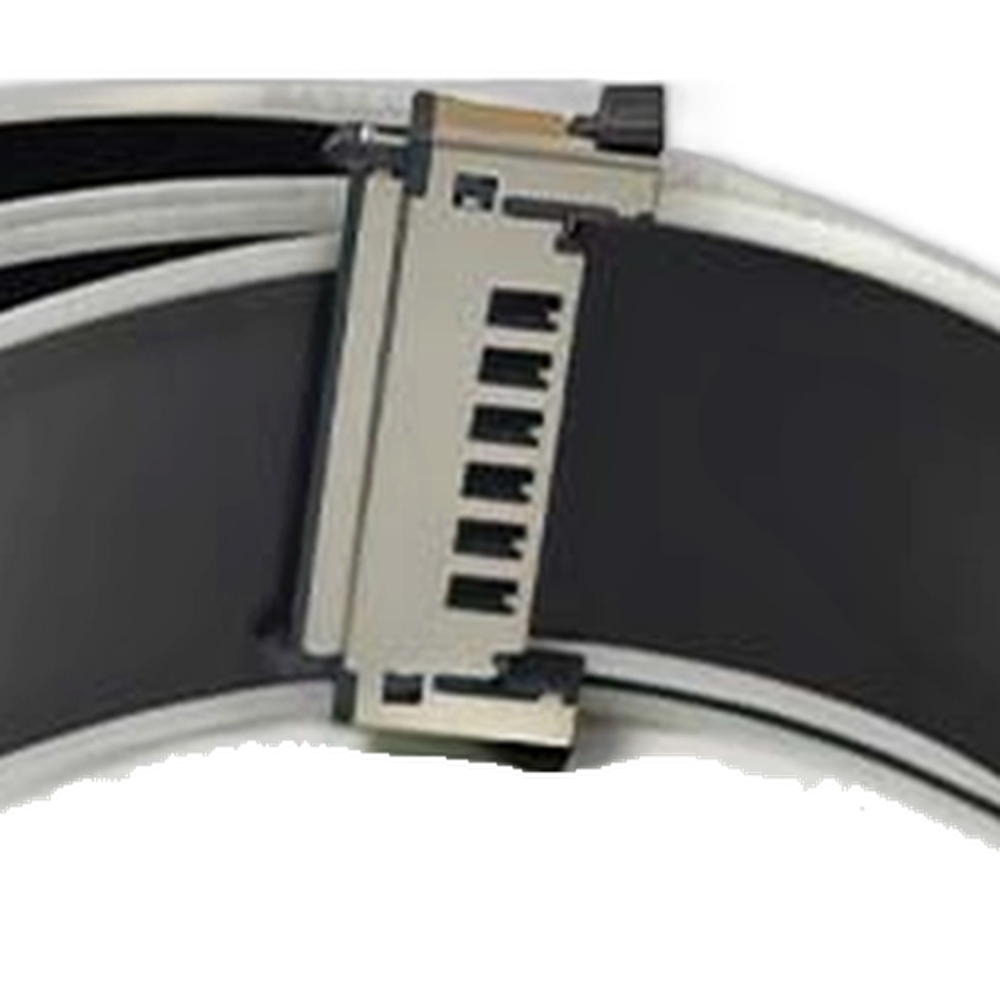

F430 FFC Cable (Flat Flexible Cable)
The CreatBot F430 FFC cable (part 160003) is the OEM flat flexible cable for the CreatBot F430. An FFC is a thin, flat ribbon with many parallel conductors. It is used where a cable has to carry several signals while flexing in a tight space, because it bends smoothly in one plane and takes up very little room. In a 3D printer an FFC typically links electronics that move relative to each other, such as a print head board and the main electronics, so it flexes during printing. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot F430 FFC Cable, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the FFC cable needs replacing
Errors or lost signals that come and go as the print head moves.
A crease, tear or fold line across the ribbon.
Worn, scratched or discolored contacts at either end.
Faults that clear briefly after the cable is reseated, then return.
Flat cables fail at the same point again and again: where they bend the most. A permanent crease at that spot is a strong sign the conductors inside are cracking.
Compatible CreatBot 3D printer
The F430 NX uses a different FFC cable, part 160004. Check your model before ordering, since the two printers look similar.
Handling an FFC cable
FFC cables are delicate until installed. Do not fold them sharply, crease them or bend them back on themselves. Hold the cable by its stiffened ends, keep the contacts clean and free of skin oil, and store a spare flat in its packaging.
Installation tips
Turn the printer off and unplug it. FFC connectors usually have a small locking latch: lift or slide it open before you pull the cable out, and never pull on a locked connector. Insert the new cable square and fully, with the contacts facing the same way as the old one, then close the latch. Follow the original bend path, then power up and test.
CreatBot F430 FFC Cable Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot F430 FFC Cable — Questions
Will this fit my F430 NX?
No. The F430 NX uses part 160004.
Which way round does it go?
The same way as the cable you removed. Photograph the contact side at both ends before you take the old one out.
Is this a genuine CreatBot part?
Yes. It is CreatBot part 160003, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
