CreatBotF430 Extruder PCBGenuine CreatBot Replacement Part
F430 Extruder PCB for the F430 3D Printer
The CreatBot F430 extruder PCB is the OEM print head circuit board for the CreatBot F430. The F430 is often run with engineering materials, and its print head carries the hotends, temperature sensors, fans and extruder motors that make that possible. This board is where they all connect, and the printhead harness carries their signals and power to the main control board. CreatBot has built the F430 with two revisions of this board, so it is available in V1.1 and V2.8. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot F430 Extruder PCB, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the extruder PCB needs replacing
A hotend shows a temperature error or a reading that jumps as the head moves.
A heater, fan or extruder motor on the head stops working while the part itself tests good.
A connector on the board is scorched, cracked or no longer holds its plug.
A damaged printhead cable or a failed sensor can cause similar symptoms. Contact Rev1 support before you order and we will help you find the fault.
Choose your version
| Version | Part number | Fits |
|---|---|---|

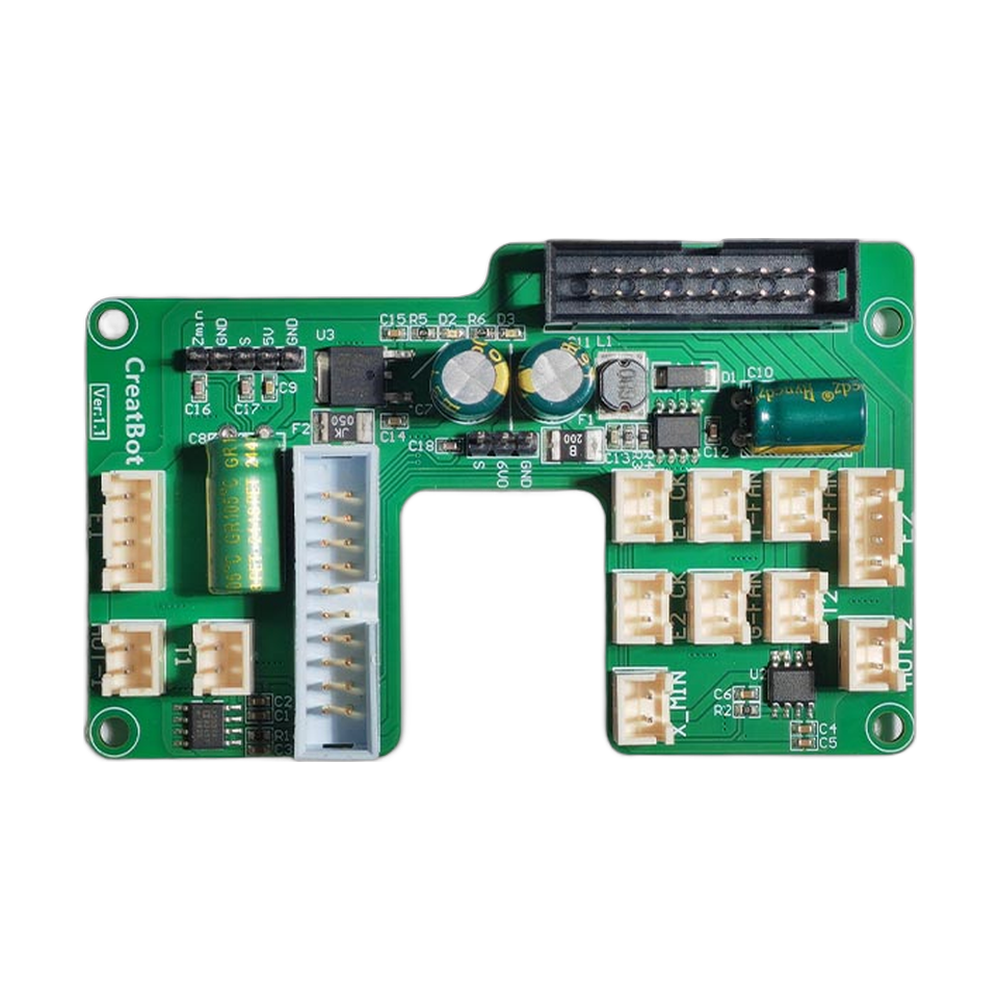

| V1.1 | 112008 | F430 |

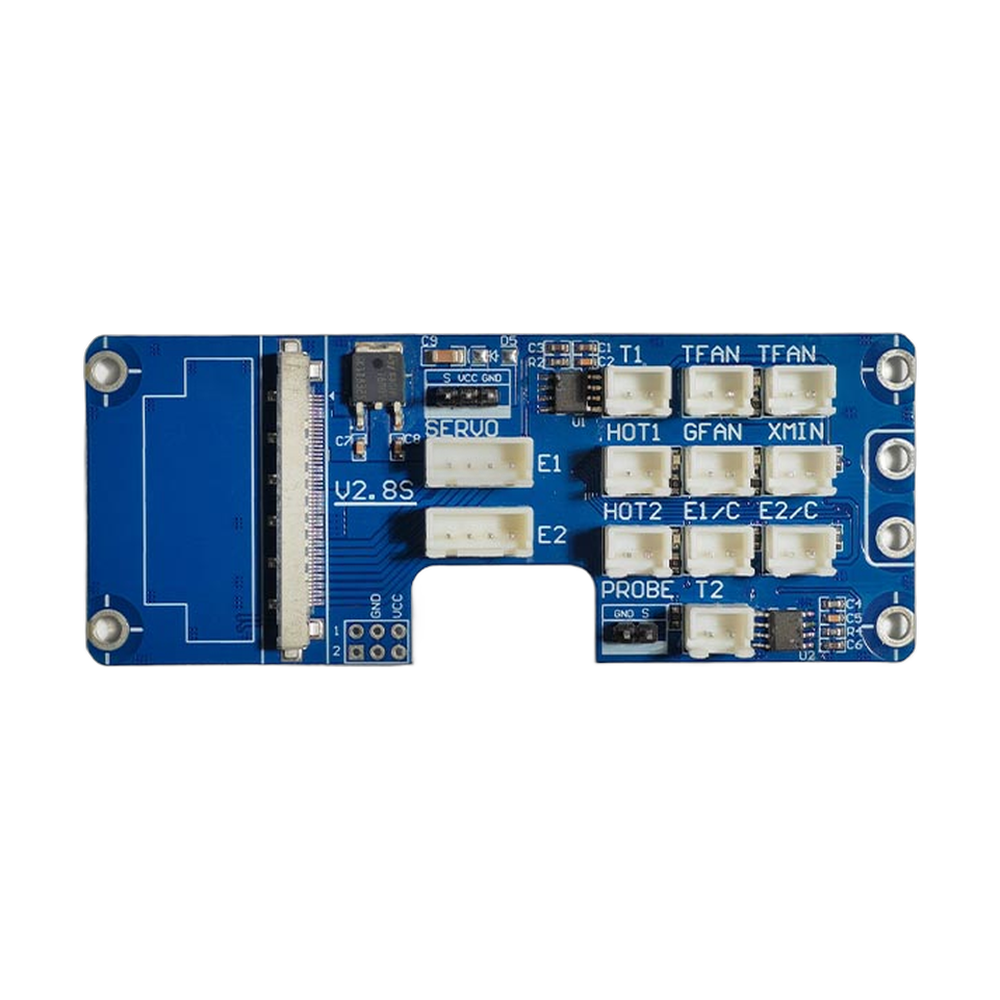

| V2.8 | 112019 | F430 |
Compatible CreatBot 3D printers
Both versions fit the F430. CreatBot also lists the PEEK-300 extruder PCB (part 112017) for the F430. The F430 NX is a different printer and uses parts 112003 to 112006.
Which version should I choose?
The F430 has been produced with more than one generation of electronics, and the extruder board changed along the way. Order the version that matches the board in your print head. The version is marked on the board. With the printer cool and unplugged, open the head and read the marking, or send Rev1 a photo and your printer's serial number. It also helps to know whether your F430 has 8-bit or 32-bit main electronics, since the extruder board has to work with the motherboard it connects to.
Installation tips
Let the hotends cool, then power the printer off and unplug it. Photograph the board with every lead connected, then transfer the connectors one at a time to the same positions. Check that each plug is fully seated and that the harness moves freely, refit the cover, heat each hotend and run a short test print.
CreatBot F430 Extruder PCB Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot F430 Extruder PCB — Questions
Which version do I need?
The version marked on your current board: V1.1 (112008) or V2.8 (112019). Rev1 support can help identify it.
Can I fit V2.8 in place of V1.1?
Not without checking. Ask Rev1 support before changing versions.
Does either version fit the F430 NX?
No. The F430 NX uses its own left and right boards, parts 112003 to 112006.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
