CreatBotF430 E2 Extruder MotorGenuine CreatBot Replacement Part
For the CreatBot F430

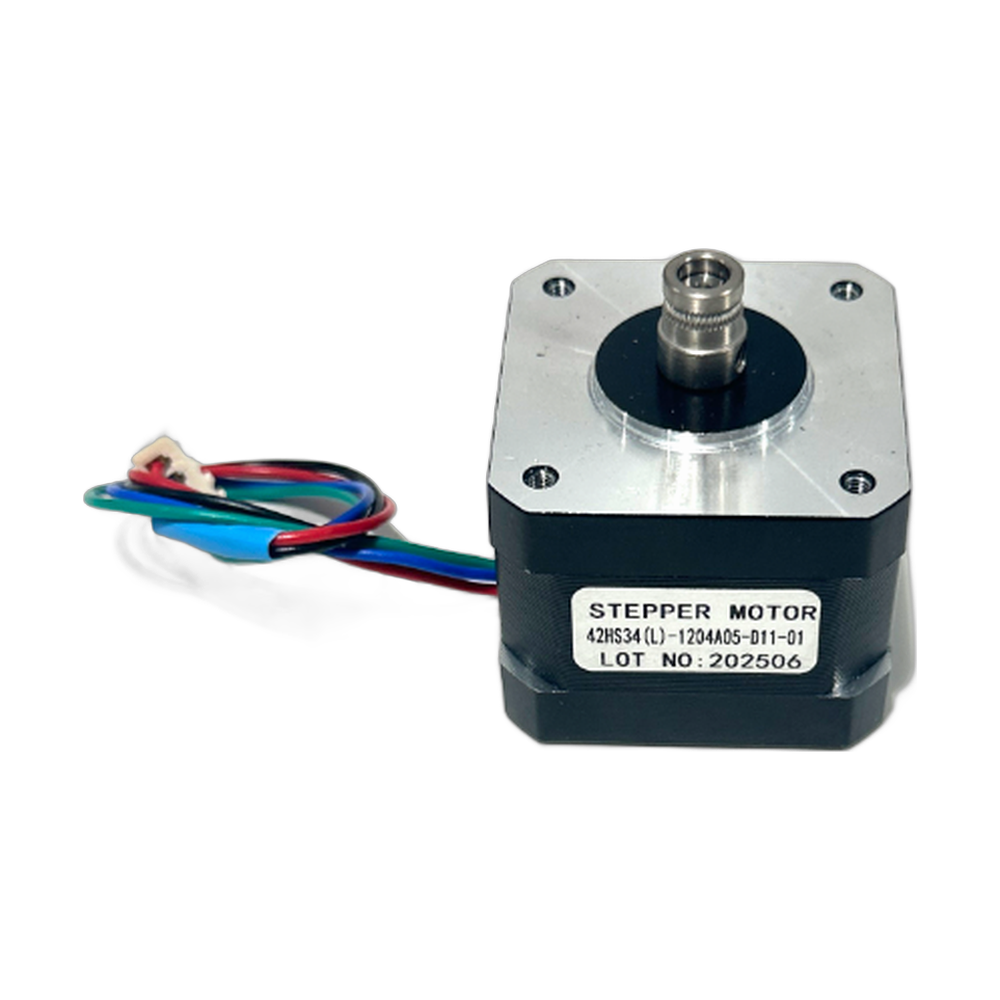

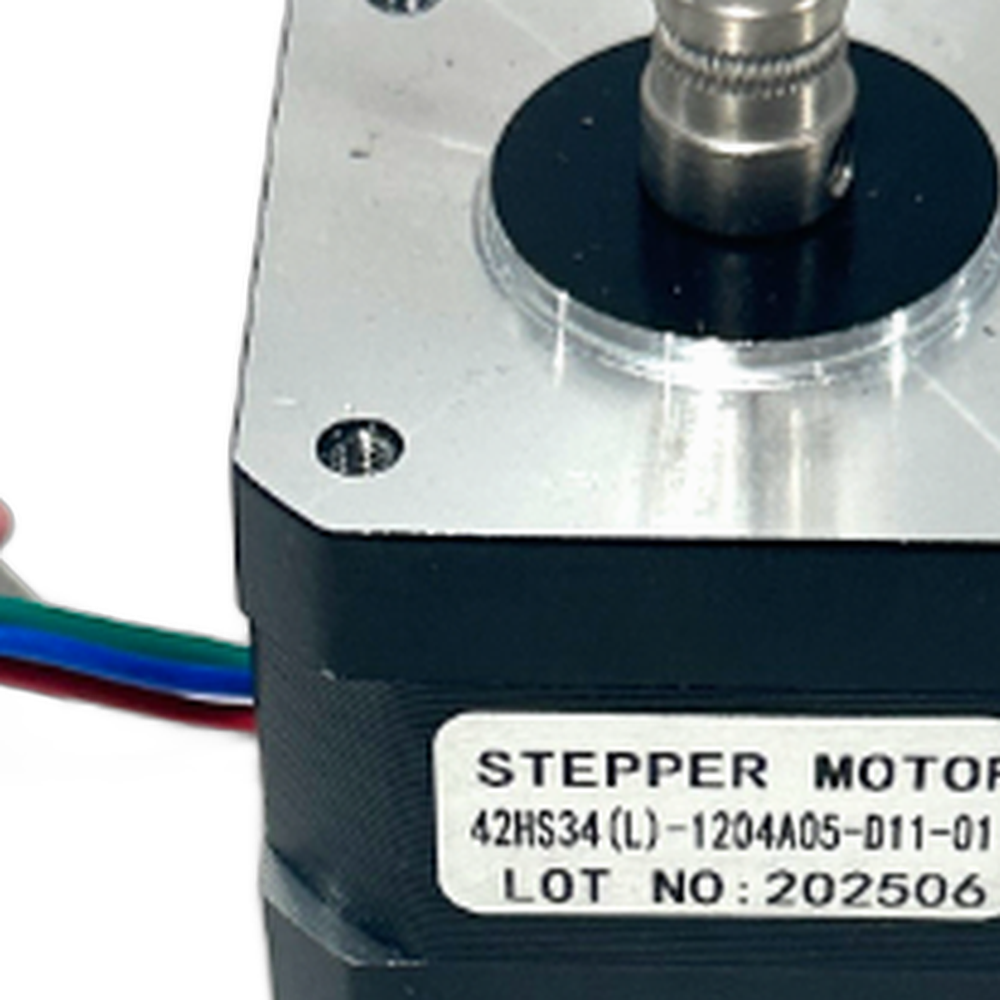

The CreatBot F430 E2 motor (part 131017) drives the second extruder (E2) on the CreatBot F430. Many F430 owners use the second extruder for soluble or breakaway support, or for a second engineering material. When the E2 motor starts to fail, supports print thin, the second material drops out, and parts with deep overhangs start to sag or fail. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot F430 E2 Extruder Motor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Why replace with the genuine part
The same motor the F430 ships with, for the original mount and cable.
E2 feeds the same way as E1, so dual extrusion settings stay valid.
For complex engineering parts.
Signs the E2 motor is failing
E2 does not respond to load or extrude commands.
Clicking or skipping on E2 only, with a clear nozzle.
Second material sections or supports print thin, patchy or not at all.
A clog, a worn drive gear or a damaged cable can look the same. Rev1 support can help you confirm the motor is the cause.
Compatible CreatBot 3D printer
The F430 first extruder uses the E1 motor, part 131016. The F430 NX uses different extruder motors, parts 131011 and 131012.
Installation tips
Unload the filament from E2, let the hotend cool, then switch off and unplug the printer. Photograph the wiring and the drive gear before you remove the motor. Install the new motor in the same orientation, line the drive gear up with the filament path and reset the tension. Extrude a short length through E2, then print a small dual material test to check both extruders.
CreatBot F430 E2 Extruder Motor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot F430 E2 Extruder Motor — Questions
Does this fit the F430 NX?
No. The F430 NX uses extruder motors 131011 (left) and 131012 (right).
Can I swap E1 and E2 motors to test?
Swapping cables between positions, where practical, can help show whether the motor or the driver is at fault. Rev1 support can guide you.
Can Rev1 do the replacement?
Yes. Rev1 is a certified CreatBot service provider and can fit and test the E2 motor.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
