CreatBotF430 E1 Extruder MotorGenuine CreatBot Replacement Part
For the CreatBot F430

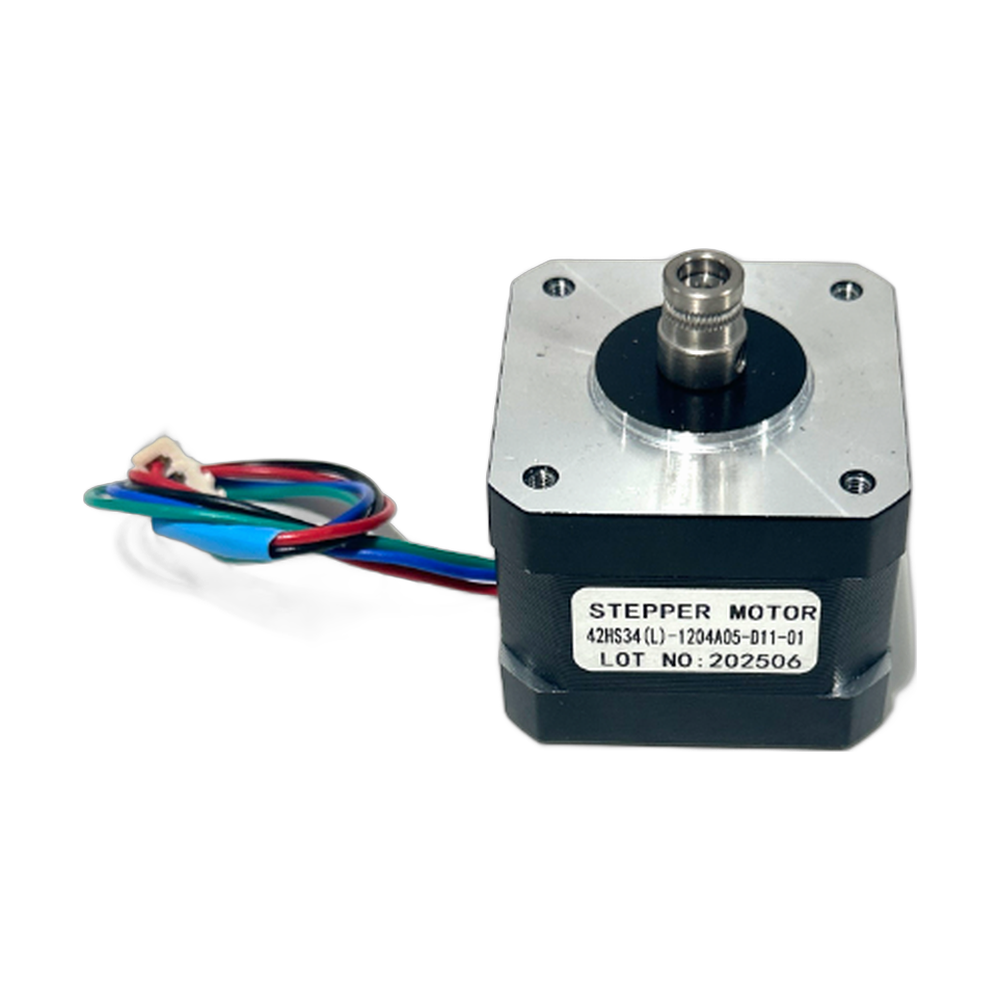

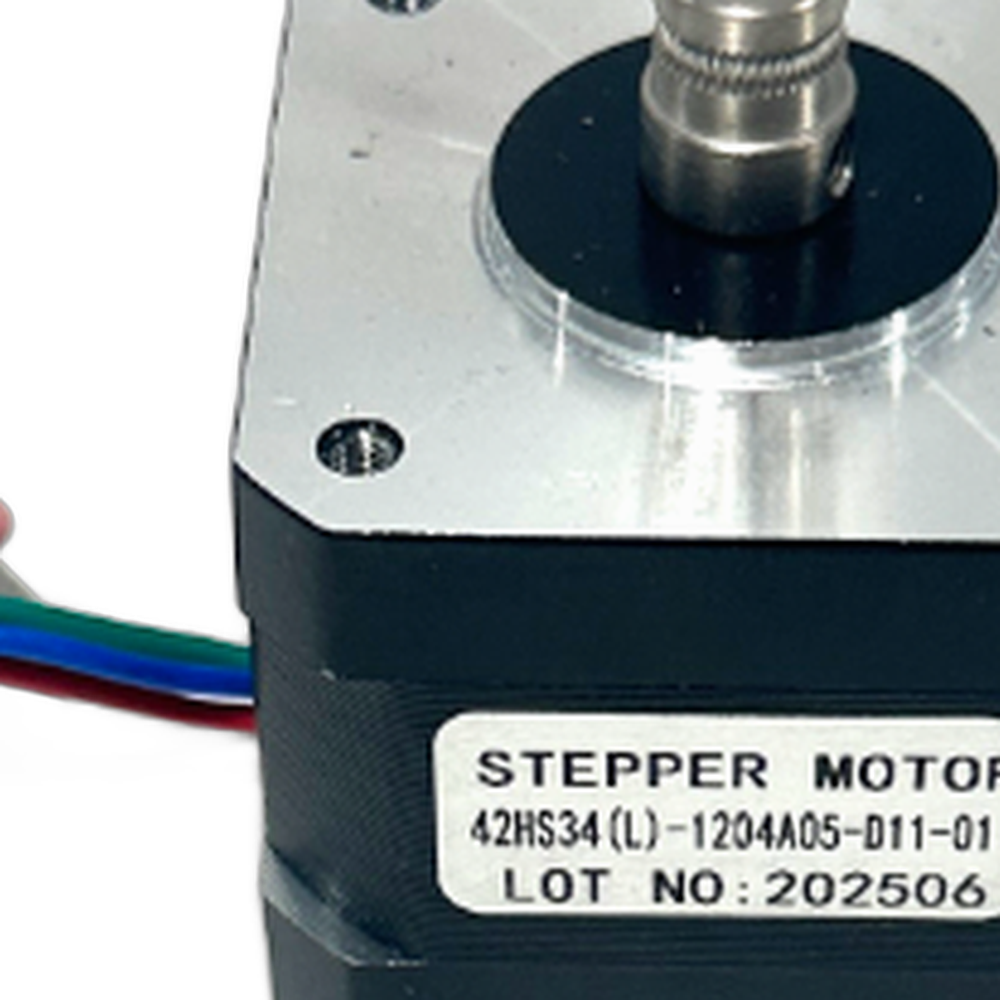

The CreatBot F430 E1 motor (part 131016) is the OEM motor for the first extruder (E1) on the CreatBot F430. The F430 is often used for engineering materials, which are less forgiving of feeding problems than PLA. The E1 motor turns the drive gear that grips the filament and pushes it into the hotend, so steady torque and accurate steps are what keep extrusion consistent from the first layer to the last. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot F430 E1 Extruder Motor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the E1 motor needs replacing
E1 does not turn when you load or extrude filament from the touchscreen.
Clicking or skipping on E1 with a clear nozzle and a free spool.
Gaps, weak layers or thin walls from the first extruder only.
Erratic movement, vibration or excess heat from the E1 motor.
Before you replace the motor, rule out a clog, a worn drive gear and a loose cable. Rev1 support can help you work through it.
Compatible CreatBot 3D printer
The F430 second extruder uses the E2 motor, part 131017. The F430 motion motors are parts 131018 (X), 131019 (Y) and 131020 (Z). The F430 NX uses different motors, including extruder motors 131011 and 131012.
Installation tips
Unload filament from E1 and let the hotend cool. Power the printer off and unplug it. Photograph the extruder and wiring, then remove the old motor while noting how the drive gear sits on the shaft. Fit the new motor in the same orientation, align the drive gear with the filament path and set the tension. Extrude a test length and print a small part to confirm steady feeding.
CreatBot F430 E1 Extruder Motor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot F430 E1 Extruder Motor — Questions
Will this fit an F430 NX?
No. The F430 NX uses its own extruder motors, parts 131011 (left) and 131012 (right).
Is the E1 motor the same as E2?
They are separate parts. Order 131016 for E1 and 131017 for E2.
Is this a genuine CreatBot part?
Yes. It is part 131016, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
