CreatBotF430 BuildTak SurfaceGenuine CreatBot Replacement Part
F430 BuildTak Build Surface

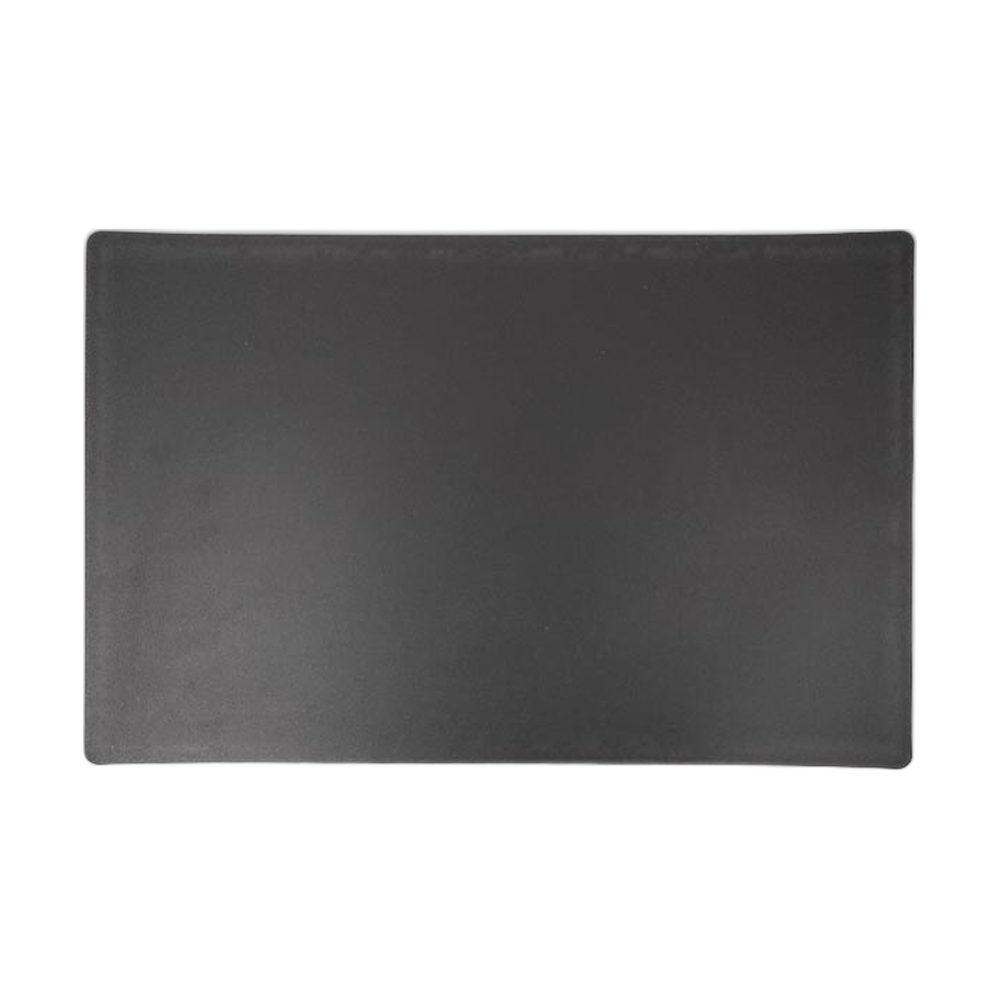

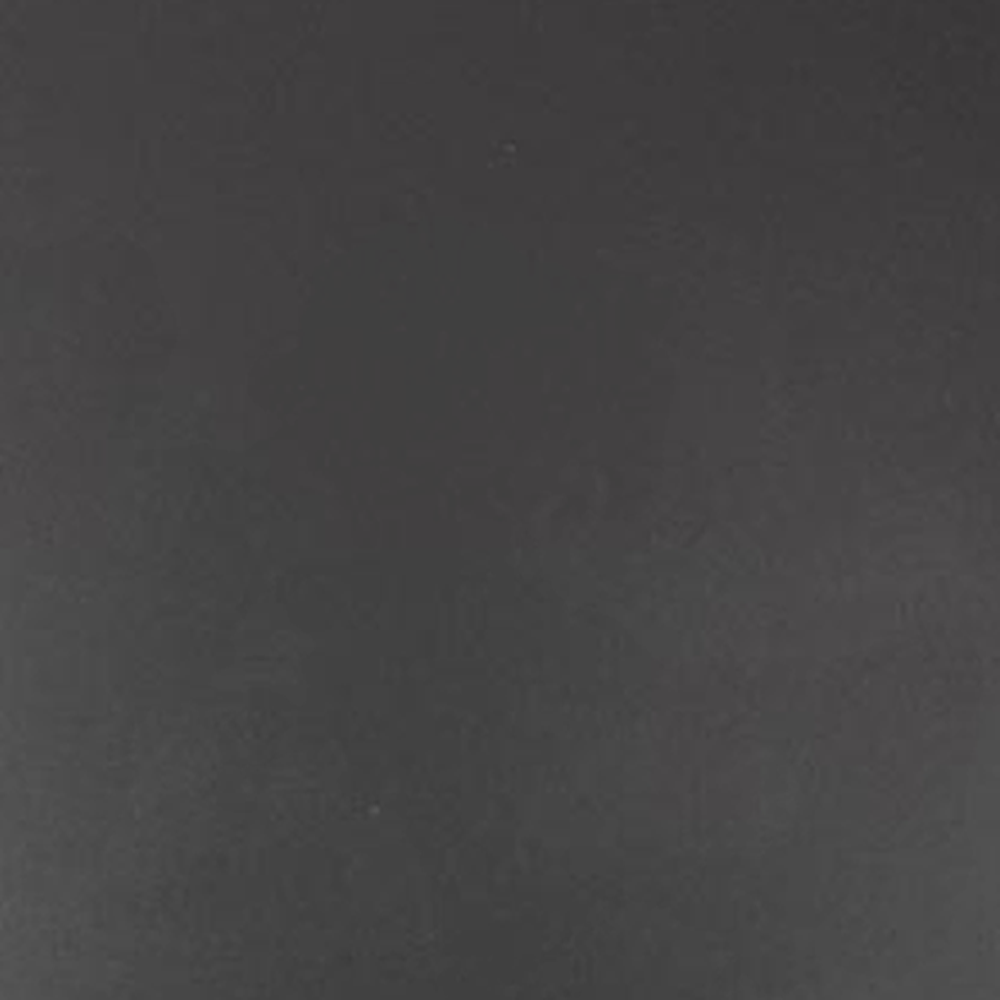

The CreatBot F430 BuildTak (part 107008) is the OEM BuildTak print surface cut for the build plate of the CreatBot F430 3D printer. BuildTak is an adhesive-backed textured sheet that gives the first layer a strong mechanical grip. For many filaments that means no glue stick, no tape and less bed preparation between jobs. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot F430 BuildTak Surface, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Why choose BuildTak for the F430
For many common filaments.
That hides small first layer imperfections.
Peel off a worn sheet and apply a fresh one.
So it fits without trimming.
Compatible CreatBot 3D printer
This sheet is for the F430. The F1000 uses BuildTak part 107021 and the D600 Pro uses part 107012. For the F430 NX, CreatBot lists the removable magnetic sheet 107005.
Which F430 surface should I use?
CreatBot makes four print surfaces for the F430. BuildTak is the textured, high grip option. PEI film (107007) gives a smoother bottom face and releases parts as the bed cools. The carbon fiber plate (107009) is the rigid plate option. The removable magnetic sheet (107010) comes off the printer so you can flex parts free. Choose BuildTak when you want strong first layer hold with minimal preparation and do not need a glossy underside.
Installation tips
Make sure the bed is cool. Peel the old sheet from one corner, remove adhesive residue and wipe the plate dry. Peel back part of the liner on the new sheet, align it with the edge of the plate and press it down, then remove the rest of the liner while smoothing outward. Re-level and set the Z offset with a little extra clearance so the nozzle does not cut into the textured surface.
CreatBot F430 BuildTak Surface Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot F430 BuildTak Surface — Questions
Will it fit the F430 NX?
It is listed for the F430 only. For the F430 NX, CreatBot lists removable magnetic sheet 107005.
How do I remove parts?
Let the bed cool and lift parts with a thin plastic scraper. Metal blades cut BuildTak.
Is this a genuine CreatBot part?
Yes, CreatBot part 107008, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
