CreatBotF430 Adapter BoardGenuine CreatBot Replacement Part
For the CreatBot F430

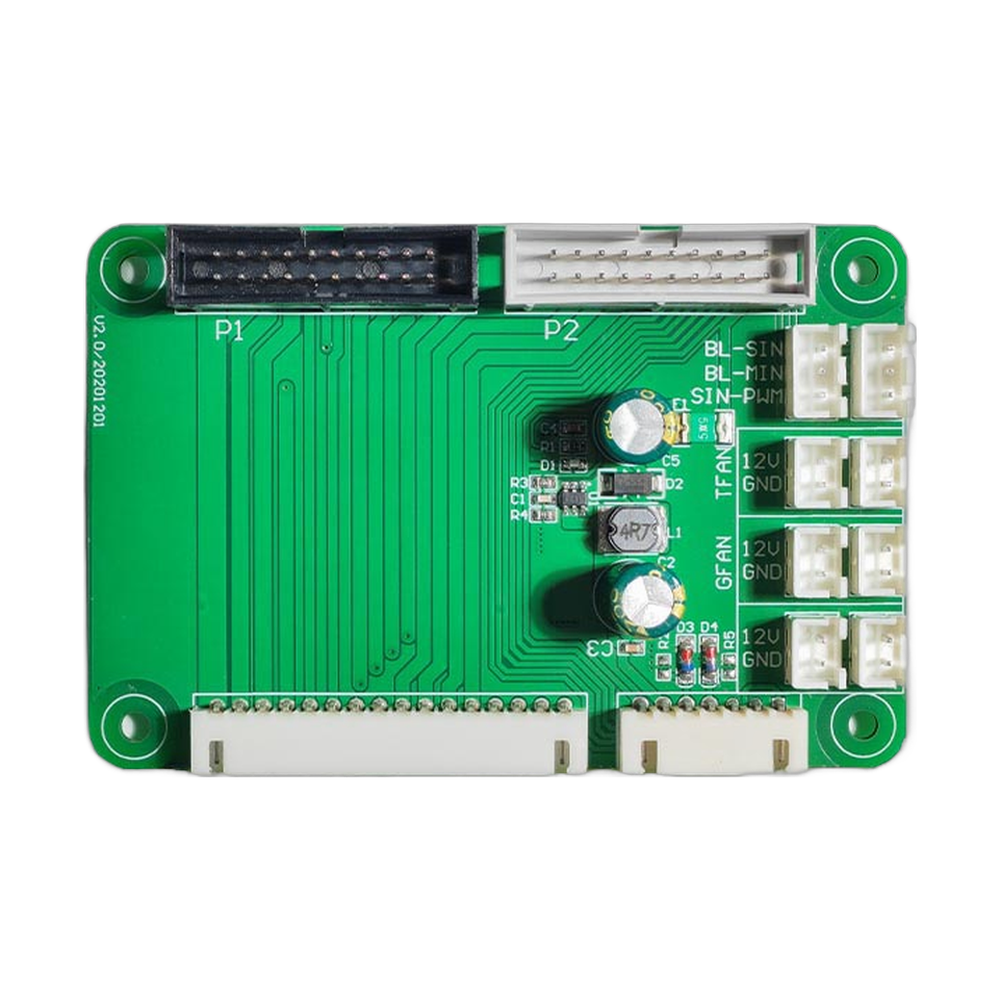

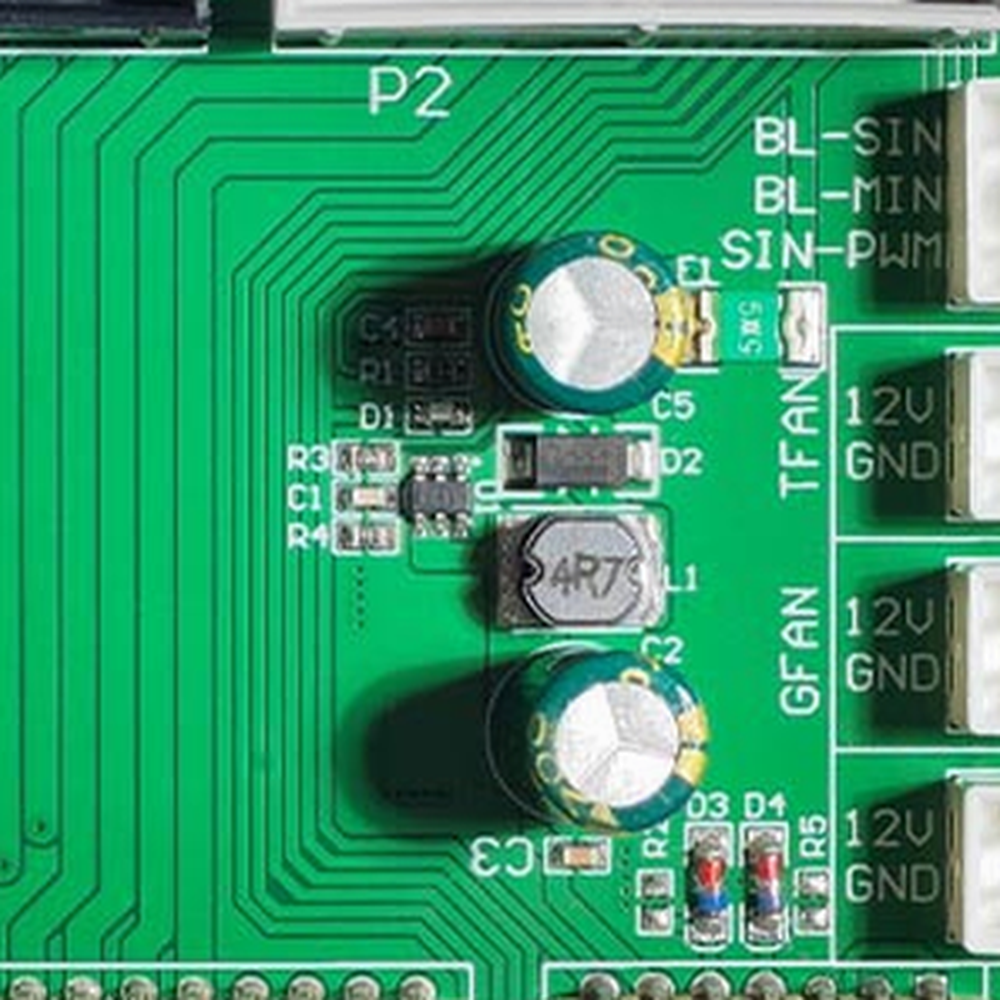

The CreatBot F430 adapter board (part 114005) is the OEM interface board for the CreatBot F430 3D printer. On a printer built for engineering materials, a lot of wiring has to meet in a small space. The adapter board is where cables from different sections connect, so power and signals travel between the components and the main control board in an orderly way. A fault on this board can take out several functions together, which makes it a common suspect when an F430 shows multiple errors at once. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot F430 Adapter Board, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the adapter board may need replacing
A group of components wired through the board stop working at the same time.
Sensor readings jump or drop out, especially when the cables near the board are touched.
Burn marks, a lifted connector or cracked solder joints on the board itself.
Before you order, rule out a loose plug or a damaged cable. Rev1 support is happy to walk through the checks with you.
Compatible CreatBot 3D printer
The F430 NX is a different machine and uses its own adapter board, part 114004. The D600 and D600 Pro use part 114008, and the PEEK-250 uses part 114003.
Installation tips
Switch the printer off and disconnect mains power, and let the machine cool if it has been printing. Take a clear photo of the board with every cable connected, and label the plugs before removal. Fit the new board in the same orientation, push each connector fully home and secure the cables so they cannot rub on moving parts. Then power on and confirm that each function routed through the board works before you start a full print.
CreatBot F430 Adapter Board Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot F430 Adapter Board — Questions
Does this board fit the F430 NX?
No. The F430 NX uses adapter board part 114004. This board, part 114005, is for the F430.
Is this a genuine CreatBot part?
Yes. It is CreatBot part 114005, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Can Rev1 help me confirm the board is the problem?
Yes. As a certified CreatBot service provider, Rev1 can help you diagnose the fault and can carry out the replacement.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
