CreatBotF430 AC Power Control BoardGenuine CreatBot Replacement Part
For the CreatBot F430

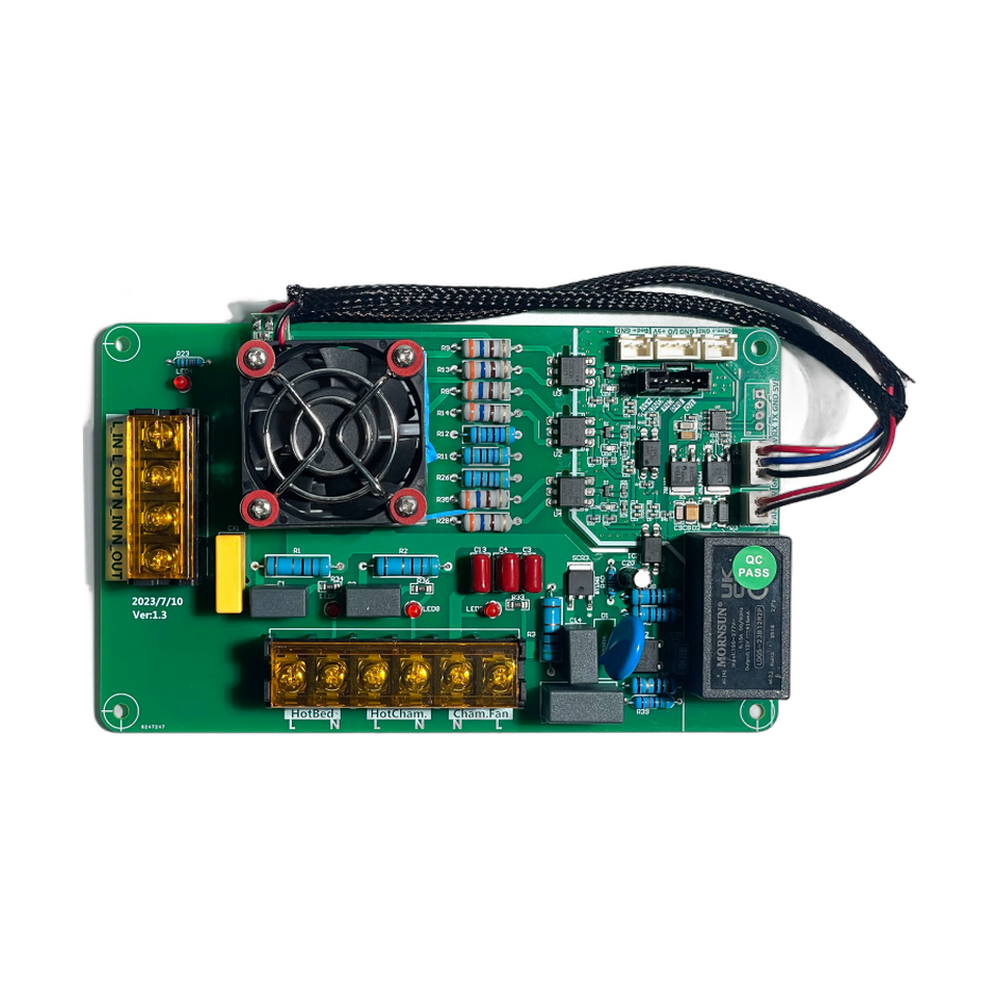

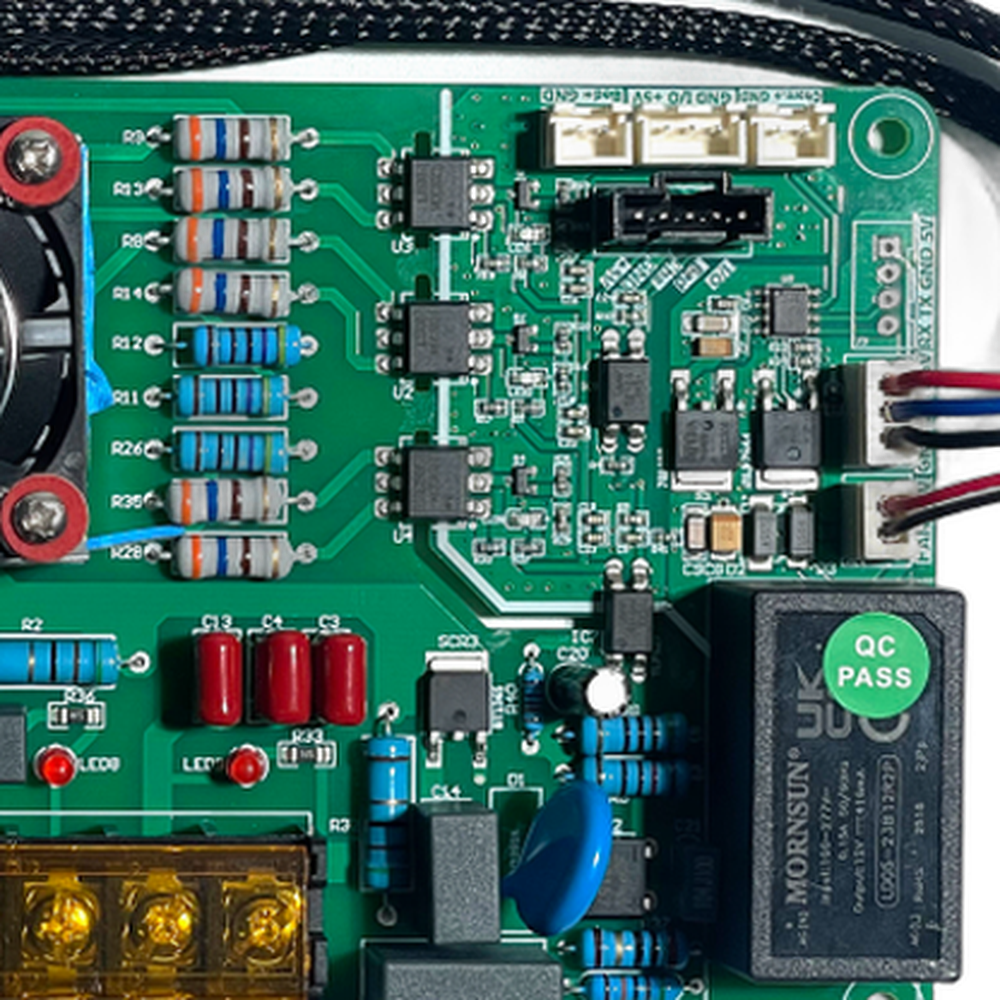

The CreatBot F430 AC power control board (part 113005) is the OEM mains power board for the CreatBot F430. The F430's motherboard works at low voltage, so a separate board is needed to switch mains power. The AC power control board does that: when the motherboard calls for a mains powered load, typically a heater, this board switches the AC supply to it. It also keeps the mains wiring physically separate from the printer's control electronics. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot F430 AC Power Control Board, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the AC power control board may need replacing
A mains powered heater will not come on, while the heater itself tests good and the motherboard is calling for heat.
A heater that will not turn off.
Scorch marks, a melted terminal or a burnt smell from the electrical compartment.
A fuse or breaker that trips again after it is reset.
Heater, cable and motherboard faults can produce similar symptoms. Contact Rev1 support before ordering and we will help you find the cause.
Compatible CreatBot 3D printer
CreatBot also lists the F430 NX AC power control board (part 113003) for both the F430 and the F430 NX. If you have an F430 NX, that is the board to order.
113005 or 113003 for an F430?
Both boards are listed for the F430. Match the one fitted to your printer: unplug the F430, open the electrical compartment and photograph the board, then send Rev1 the photo along with your printer's serial number. F430 printers have been built with more than one generation of electronics, so a quick check avoids ordering the wrong board.
Installation and safety
This board carries mains voltage and should be replaced by a qualified person. Switch the printer off and unplug it from the wall before you open it. Photograph and label every terminal, fit the new board in the same position and tighten each terminal firmly with no stray strands. Close the compartment before restoring power, then confirm each heater switches on and off. Never bypass a fuse or protective device.
CreatBot F430 AC Power Control Board Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot F430 AC Power Control Board — Questions
Does it fit the F430 NX?
It is not listed for the F430 NX. The F430 NX uses part 113003.
Can Rev1 replace it for me?
Yes. Rev1 is a certified CreatBot service provider and can diagnose and replace the board.
Is this a genuine CreatBot part?
Yes. It is CreatBot part 113005, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
