CreatBotF430 8-Bit MotherboardGenuine CreatBot Replacement Part

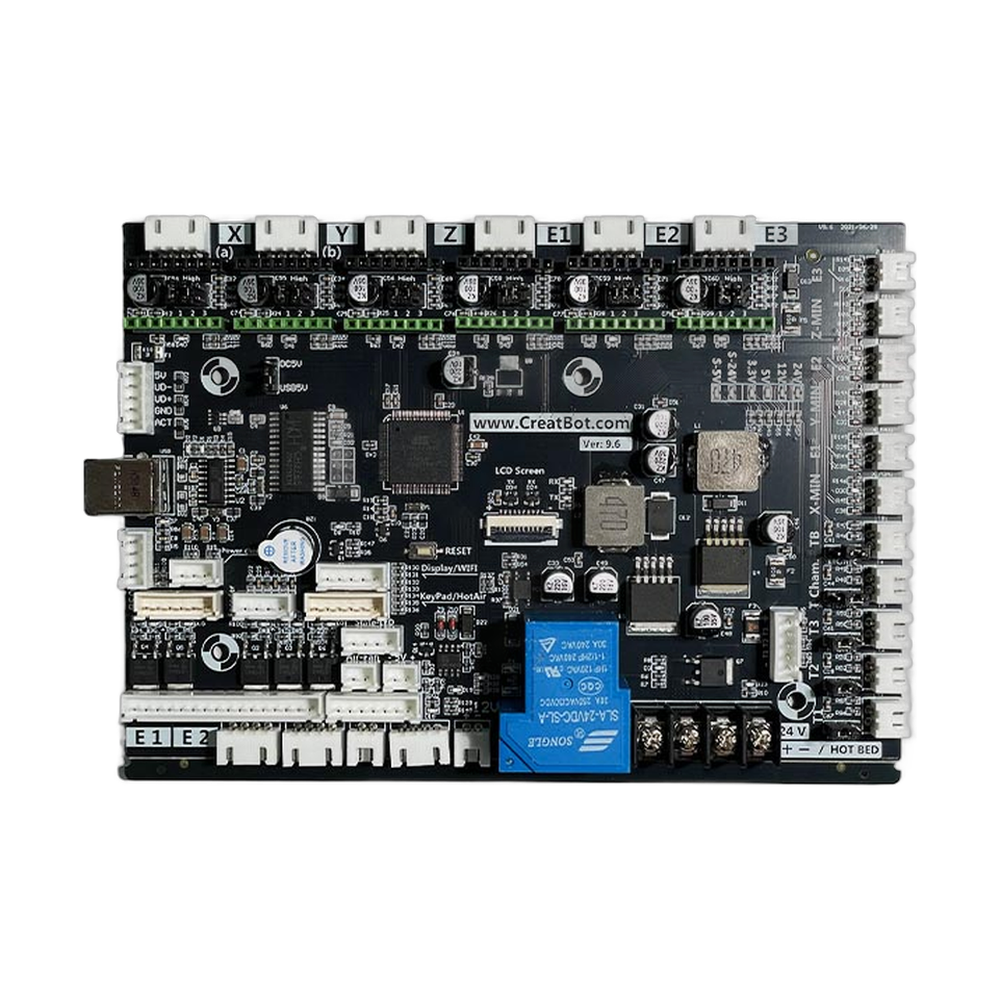

F430 8-Bit Motherboard V9.6 (Main Control Board)
The CreatBot F430 8-bit motherboard V9.6 (part 111005) is the OEM main control board for F430 printers that shipped with the 8-bit electronics. It is the board that runs the printer's firmware and coordinates everything else: the stepper drivers that move the axes, the hotend and heated component outputs, the fans and the sensors. If you are keeping an earlier F430 in production, a genuine V9.6 board returns it to the configuration it left the factory with. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot F430 8-Bit Motherboard, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs your motherboard may need replacing
The printer powers on but never finishes starting up, or the screen does not respond.
A single output fails, for example one axis or one heater, while the component on the end of it tests good.
Burn marks, a damaged connector or a cracked component on the board.
Power supply, cable and extruder board faults can look similar. Contact Rev1 support before ordering and we will help you narrow it down.
Compatible CreatBot 3D printer
F430 printers with 32-bit electronics use the F430 32-bit motherboard V1.3 (part 111006). The F430 NX uses part 111003.

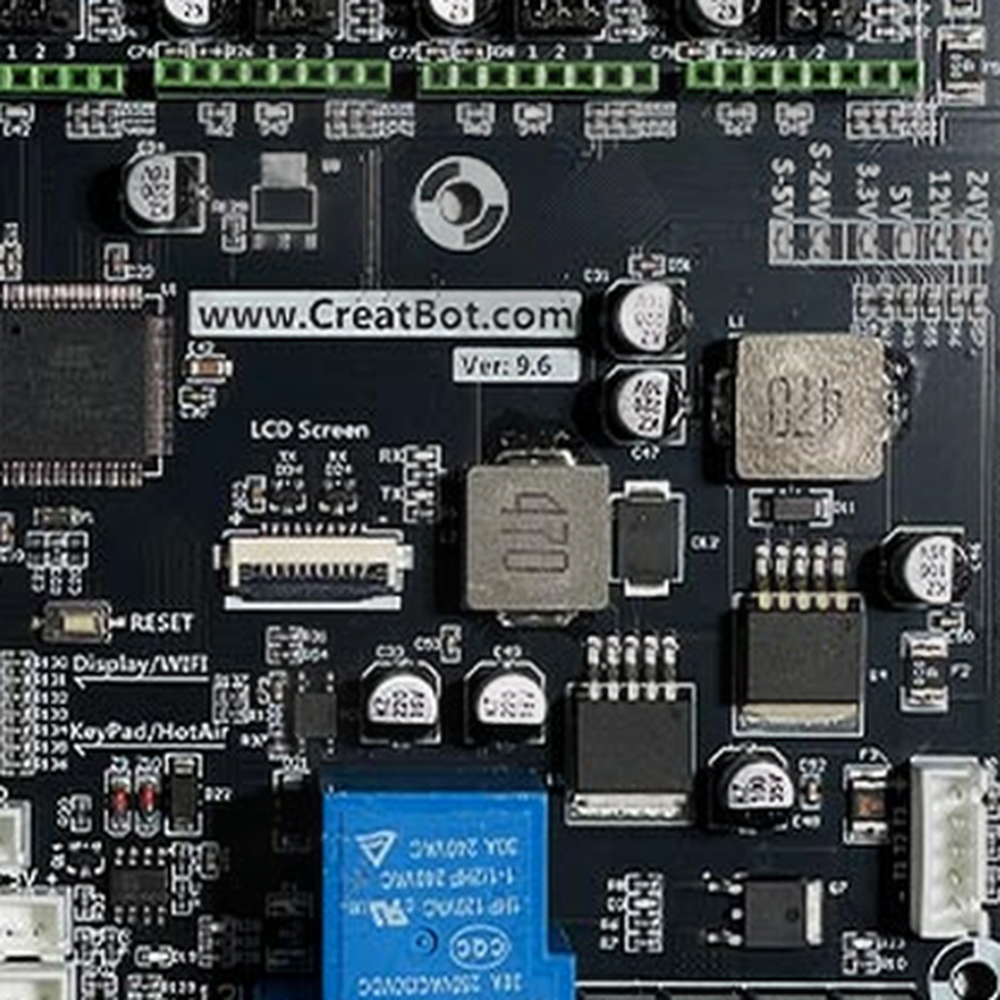

How to confirm you have the 8-bit board
The F430 has been built with both 8-bit and 32-bit controllers, and they are not the same part. Unplug the printer, open the electronics bay and read the marking on the board. A board marked 8Bit V9.6 is replaced by this part. A board marked 32Bit V1.3 needs part 111006. Firmware is specific to each controller, which is another reason to replace like with like.
Installation
Disconnect mains power before you open the printer. Take a clear photo of the board with every cable in place, follow anti-static practice, and move the connectors to the new board one at a time. Confirm the firmware with Rev1 support before returning the printer to work. Under warranty? Contact Rev1 first, as your certified CreatBot service provider we can carry out the swap.
CreatBot F430 8-Bit Motherboard Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot F430 8-Bit Motherboard — Questions
Is this the board my older F430 shipped with?
If the original board is marked 8Bit V9.6, yes. This is the genuine CreatBot replacement, part 111005.
Can I upgrade to the 32-bit board instead?
Ask Rev1 support first. The 32-bit board runs different firmware and may need wiring changes.
Does it fit the F430 NX?
No. The F430 NX uses its own motherboard, part 111003.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
