CreatBotF430 32-Bit MotherboardGenuine CreatBot Replacement Part
F430 32-Bit Motherboard V1.3 (Main Control Board)

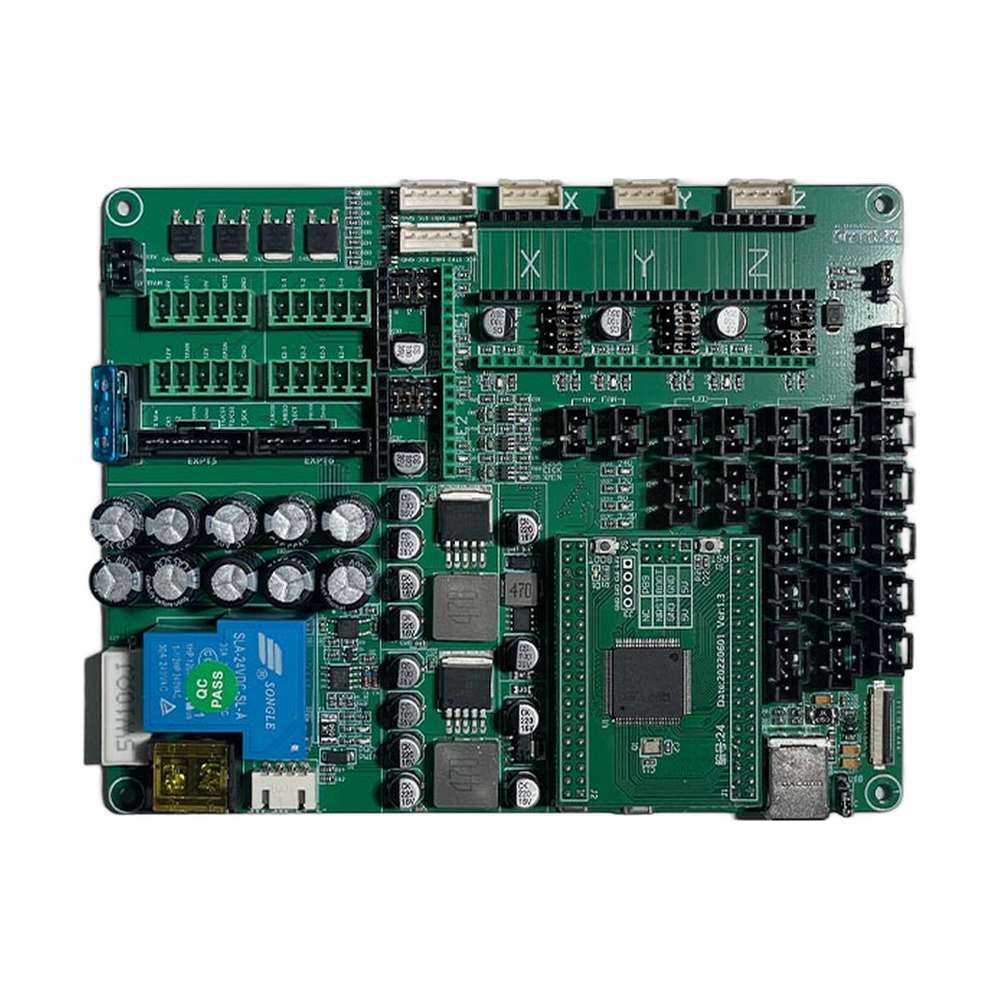

The CreatBot F430 32-bit motherboard V1.3 (part 111006) is the OEM main control board for F430 printers built with the 32-bit electronics. The motherboard is the center of the printer: it runs the firmware, drives the motion system, controls the hotends and heated components, and reads the printer's sensors. When it fails, the whole machine stops, and a genuine CreatBot board is the direct way to restore factory behavior. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot F430 32-Bit Motherboard, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs your motherboard may need replacing
The F430 will not boot, or the touchscreen stays blank or frozen.
Motors, heaters or fans stop responding while the parts themselves test good.
Visible damage such as a burnt component, a melted connector or corrosion on the board.
A failed power supply, cable or extruder board can produce similar symptoms. Contact Rev1 support before you order and we will help you confirm the motherboard is the cause.
Compatible CreatBot 3D printer
The F430 has also used an 8-bit board, the F430 8-bit motherboard V9.6 (part 111005). The F430 NX uses its own board, part 111003.
8-bit or 32-bit: which board is in my F430?

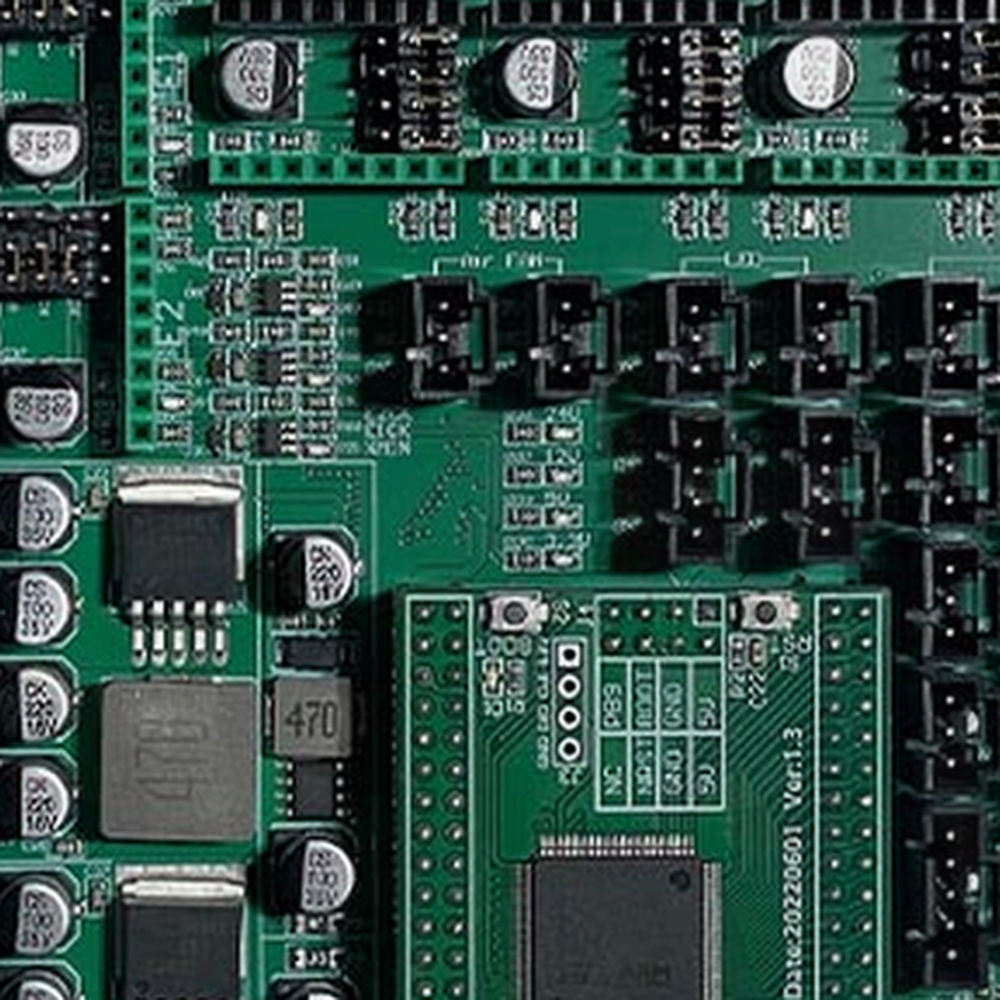

CreatBot has supplied the F430 with both an 8-bit and a 32-bit controller. The two are different generations of electronics, and they run different firmware, so replace like with like. Check the marking printed on your current board: if it reads 32Bit V1.3, this is the correct part. If it reads 8Bit V9.6, order part 111005 instead. If you are not sure, send Rev1 a photo of the board.
Installation
Power the printer off and unplug it before opening the electronics bay. Photograph every connector before you disconnect anything, use anti-static precautions, and reconnect the cables one at a time to their original positions. Check the firmware with Rev1 support after installation. If your printer is under warranty, contact us first: Rev1 can perform the replacement as your certified CreatBot service provider.
CreatBot F430 32-Bit Motherboard Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot F430 32-Bit Motherboard — Questions
Can I replace an 8-bit F430 board with this 32-bit board?
Do not assume so. The boards run different firmware and may differ in wiring. Talk to Rev1 support before changing board type.
Will it fit the F430 NX?
No. The F430 NX uses part 111003.
Is this a genuine CreatBot part?
Yes. It is CreatBot part 111006, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
