CreatBotF1000 Z MotorGenuine CreatBot Replacement Part

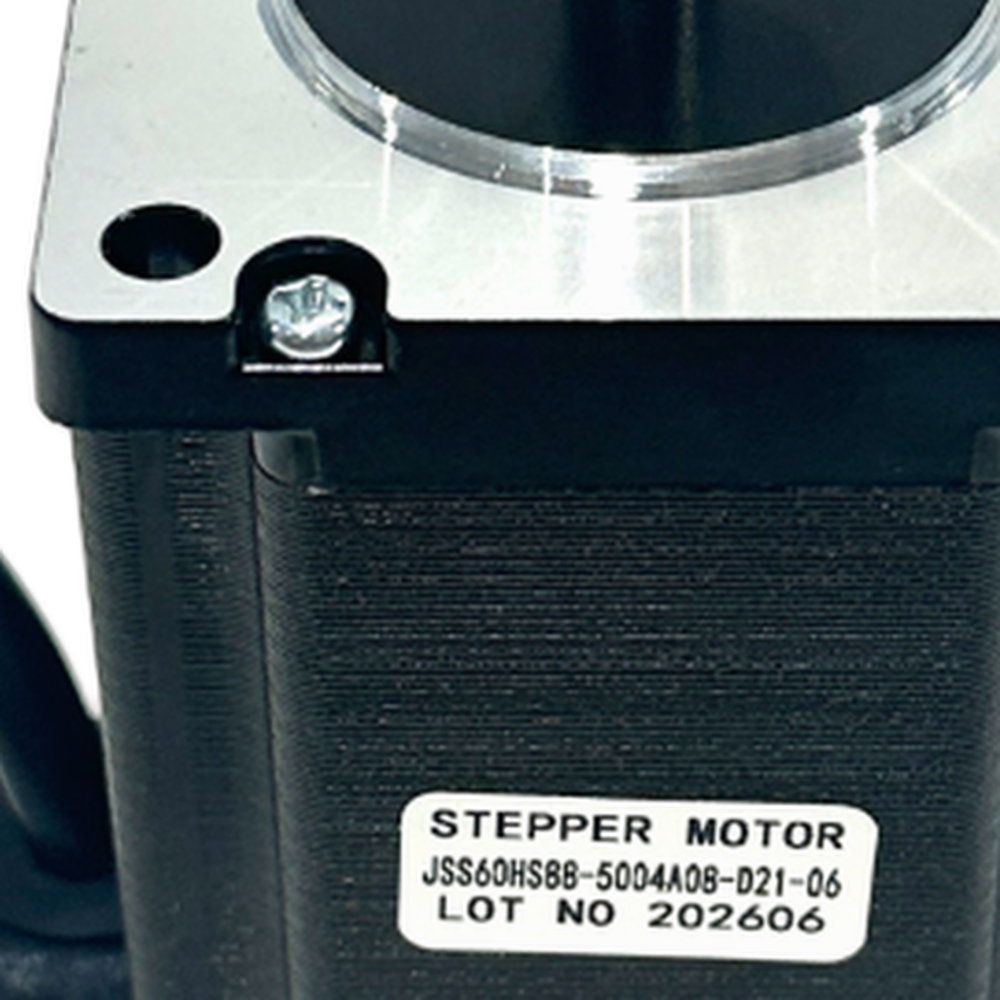

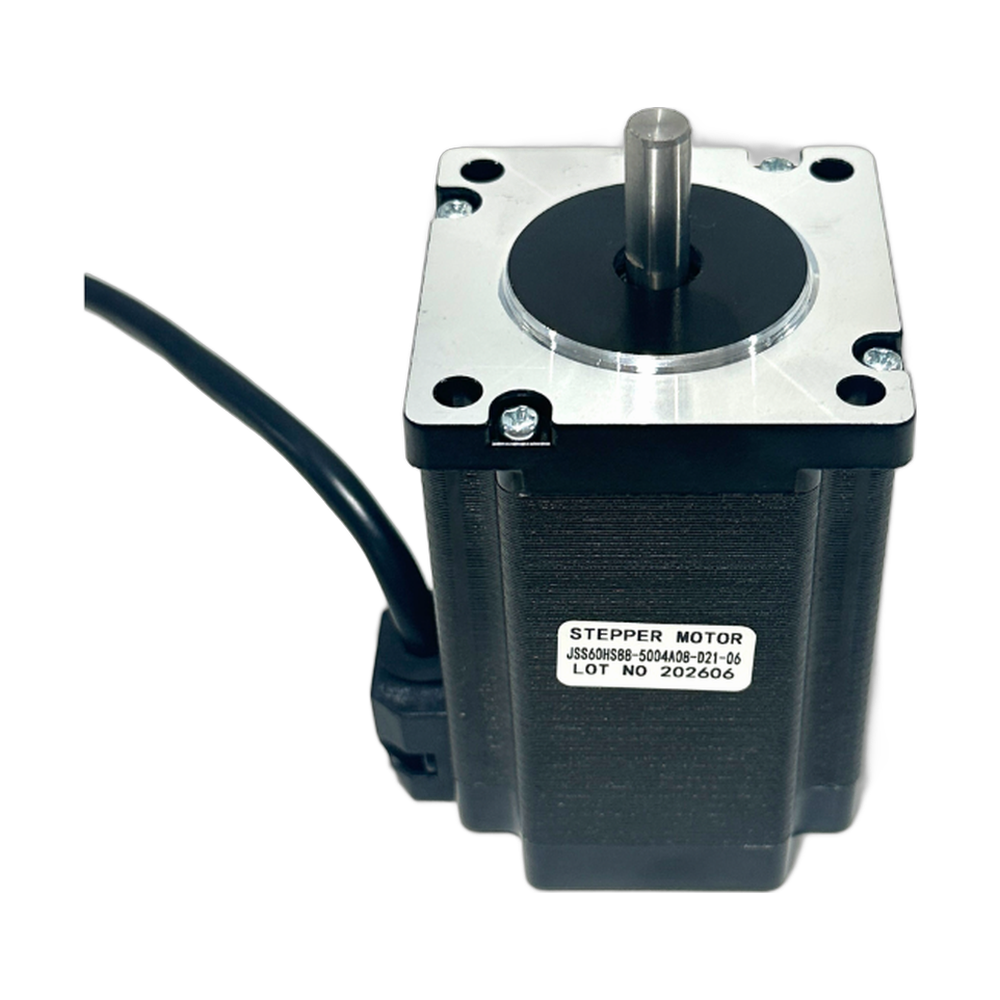

F1000 Z Motor (Z-Axis Drive Motor)
The CreatBot F1000 Z motor (part 131032) is the OEM Z-axis motor for the CreatBot F1000 large format 3D printer. It moves the Z axis one layer height at a time, so it controls how evenly layers stack across the full height of a print. With a build volume as large as the F1000's, the Z drive works hard on every tall job, and a motor that skips or stalls can leave a visible step in the part or end the print entirely. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot F1000 Z Motor, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Signs the Z motor needs replacing
The Z axis does not home, or stalls when you jog it from the touchscreen.
Layers shift or compress at a particular height on tall prints.
Loud, rough or grinding movement from the Z drive.
The motor is noticeably hot, or the axis loses position during long prints.
Mechanical binding, worn guides, a loose coupling or a damaged cable can cause the same faults. Rev1 support can help you check the Z axis before you replace the motor.
Compatible CreatBot 3D printer
The F1000 extruder motors are parts 131030 (E1) and 131031 (E2). The F430 uses its own Z motor, part 131020.
Installation tips
Turn the printer off and unplug it. Because the F1000's Z assembly is large, support it securely before you release the motor so it cannot drop or tilt. Photograph the cable routing and connector, fit the new motor in the same position, and make sure it is fully seated before you tighten anything. Check for smooth travel over the full Z range, then home, re-level the bed and run a first layer test.
CreatBot F1000 Z Motor Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot F1000 Z Motor — Questions
Is the F1000 Z motor the same as the F430 Z motor?
No. The F430 uses part 131020.
Do I need to re-level after replacing the Z motor?
Yes. Any work on the Z axis can change the bed position, so re-level and check your first layer.
Is this genuine?
Yes. It is CreatBot part 131032, supplied by Rev1 Technologies, an authorized CreatBot dealer and certified CreatBot service provider.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
