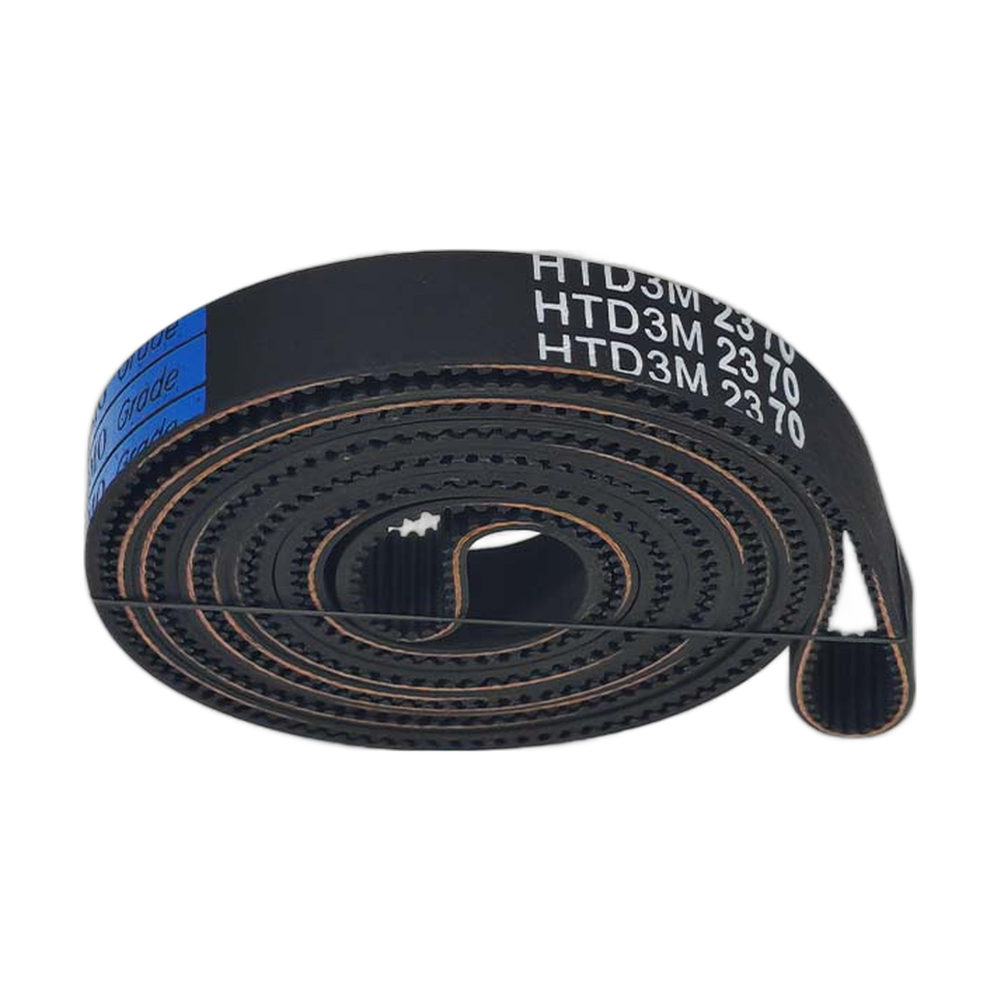

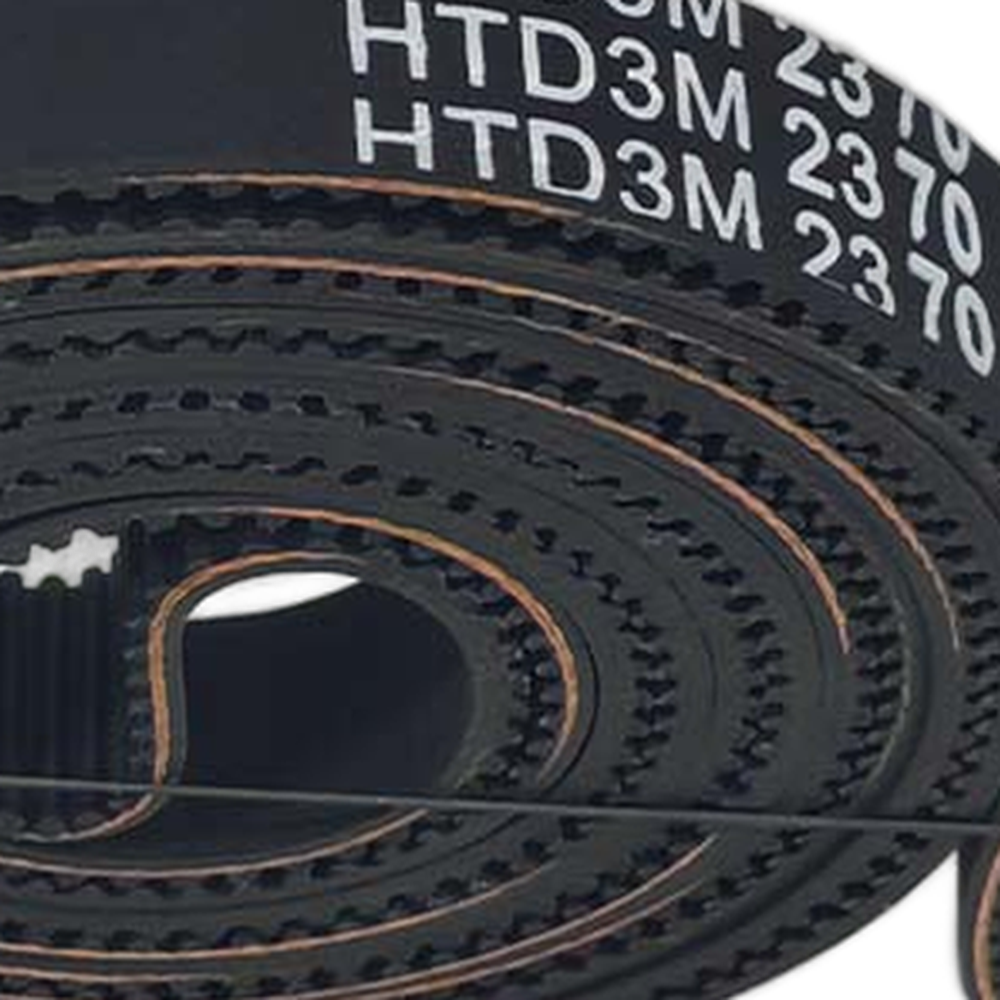

CreatBotF1000 Z-Axis Timing BeltGenuine CreatBot Replacement Part
For the CreatBot F1000
The CreatBot F1000 Z-axis timing belt (part 143014) is the OEM synchronizing belt for the Z axis of the CreatBot F1000. On a large format machine the Z axis is driven at more than one point, and the timing belt is what keeps those points moving together. If the belt slips or skips a tooth, one side of the axis falls behind the other and the build plane is no longer level, which ruins first layers and throws off every layer above them. Full specifications →
Genuine CreatBot part, shipped from Rev1 — your authorized CreatBot dealer and service partner. Not sure it fits? Call (248) 707-2950.
Genuine CreatBot F1000 Z-Axis Timing Belt, from an authorized CreatBot dealer.
An authentic CreatBot replacement part, not a third-party copy. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in Auburn Hills, Michigan.
Why replace a worn timing belt
A synchronized Z axis keeps the gap between nozzle and bed the same from corner to corner.
A belt that skips teeth undoes your bed leveling every time it slips.
A worn belt can click, chatter or jump on the pulleys.
The same length and tooth profile as the belt the F1000 shipped with.
Compatible CreatBot 3D printer
The F1000 Z axis also uses a Z-axis motor belt, part 143013. The F1000 X-axis belt is 143010, the Y-axis belt is 143011 and the Y-axis closed loop belt is 143012. The D1000 and D1000 HS use their own Z-axis timing belts, parts 143019 and 143024.
Signs the timing belt needs attention
Check the belt if the bed is level after calibration but drifts out of level during or between prints, if one side of the Z axis sits higher than the other after homing, or if you can see cracked or missing teeth. Loose tension can cause the same symptoms, so check the tensioner first.
Installation tips
Power the printer off and lock or support the Z axis before you remove the old belt. Mark the position of each pulley so the axis stays in the same relationship when the new belt goes on; if the sides end up at different heights, the plane will be out of level. Seat the teeth fully, restore the original tension, move the axis through its full travel, then run the bed leveling routine and a first layer test.
CreatBot F1000 Z-Axis Timing Belt Specifications
WHY REV1 TECH
Sold and Supported by Rev1 Technologies
Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US. Not sure which part your printer needs? Send us your printer model and serial number and our team will confirm the right part before it ships. We also handle installation, repair and preventive maintenance on CreatBot printers.
CreatBot F1000 Z-Axis Timing Belt — Questions
Is this the Z-axis motor belt?
No. This is the timing belt. The F1000 Z-axis motor belt is part 143013.
Does it fit the D1000 HS?
No. The D1000 HS uses Z-axis timing belt 143024.
Is this a genuine CreatBot part?
Yes. It is CreatBot part 143014, supplied by Rev1 Technologies, an authorized CreatBot dealer.
Is this a genuine CreatBot part?
Yes. Rev1 Technologies is an authorized CreatBot dealer and certified CreatBot service provider in the US, and every part we sell is a genuine CreatBot part.
How do I confirm it fits my printer?
Send us your printer model and serial number, or call (248) 707-2950, and our team will confirm the right part before it ships.
Can Rev1 install it for me?
Yes. We handle installation, repair and preventive maintenance on CreatBot printers. Ask us about on-site or depot service.
